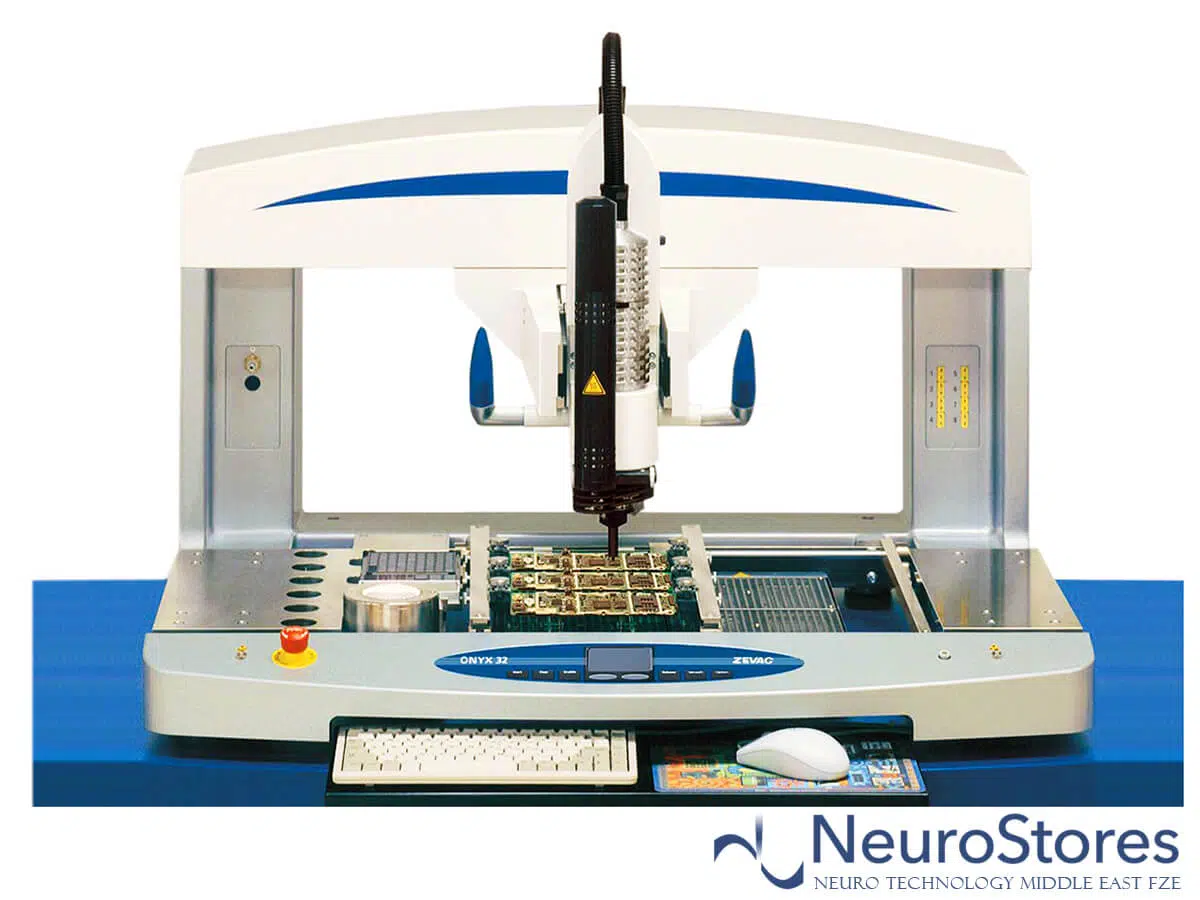

Zevac Onyx 32 Hot Gas

Fully automatic high performance unit with digital vision system for highest precision in rework and positioning applications
The ONYX 32 offers the highest degree of automation out of the ONYX series. Between loading and unloading of the substrates and component feeders the process is executed fully automated.

KEY FEATURES SUMMARY:

AXIS MOVEMENTS – 4 motorised axis, closed loop motion control
INTEGRATED VISION SYSTEM – for automatic component alignment and any shape recognition such as fiducials, bar code, data matrix, component outlines or land pattern
HOT GAS NOZZLE CHANGER – for an automatic change of up to six nozzles
ASSEMBLY TOOL CHANGER – allows the use of up to six different pick & place tips, micro-stencils, die-collets or pin print transfer tools
LIQUIDS DISPENSER – applies any liquids such as flux, adhesives, solderpaste to the substrate. Flexible line and dot pattern definition
TOUCH PROBES – to align nozzle, tool and needle length. Compensates loss of accuracy caused by board warpage and buckling.
STRONG TOP AND BOTTOM HEATING – 2000 W top heater; 4000 W bottom preheating
AUTOMATIC SITE SOLDER CLEANING SYSTEM – option for site redressing after removal of component
