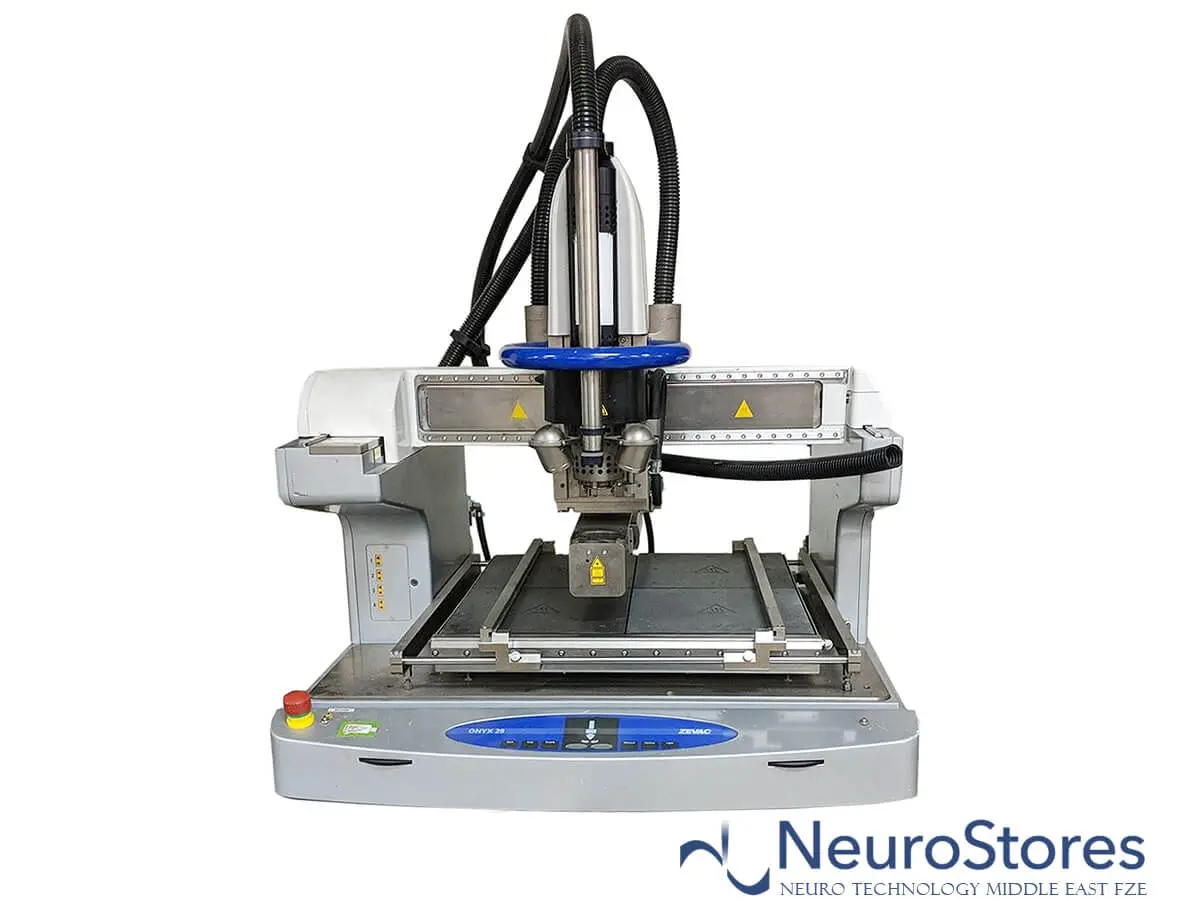

Zevac Onyx 29

Semi-automatic soldering and desoldering machine
The machine precision, automatic processes and easy operation have been the basics for the development of this new platform.

KEY FEATURES SUMMARY:

AXIS MOVEMENTS – All 7 axis motorised, closed loop motion control
MANUAL MOTION – via integrated hand wheels
PC – With Windows based software.
UP TO 8 THERMOCOUPLE PORTS – to control process temperatures.
AUTOMATIC SITE SOLDER CLEANING SYSTEM – with motorised X/Y/Z-System.
CLOSED LOOP AIRFLOW CONTROL – 8 to 80 l/min. using a massflow controller.
STANDARD ZEVAC GAS NOZZLES
BOARD CARRIER – handles irregular-shaped assemblies without special fixturing.
FORCE MEASUREMENT – Closed loop force control for automatic picking, fluxing, placing and removing.
VISION – New MFOV Vision System allows viewing of component up to 75x75mm,
Adjustable Vision LED illumination intensity.
