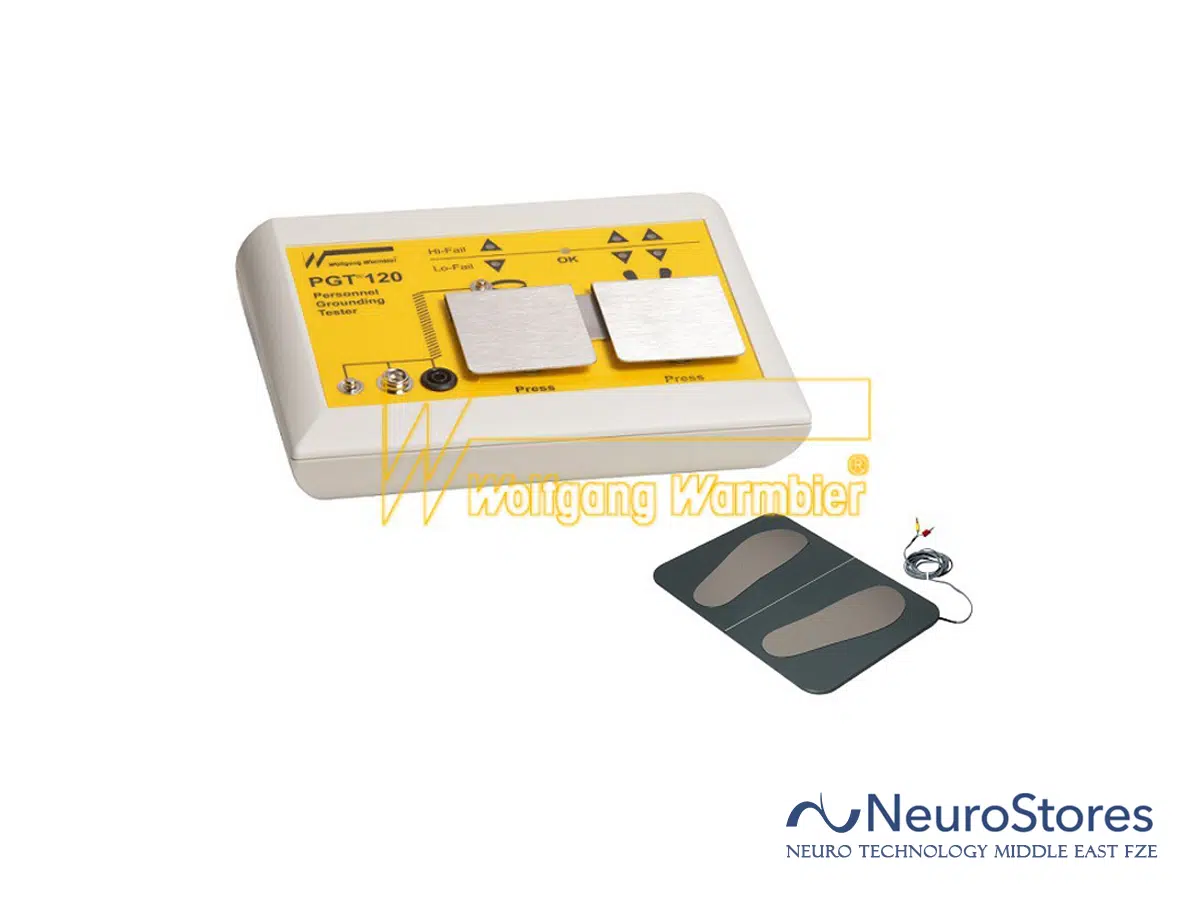

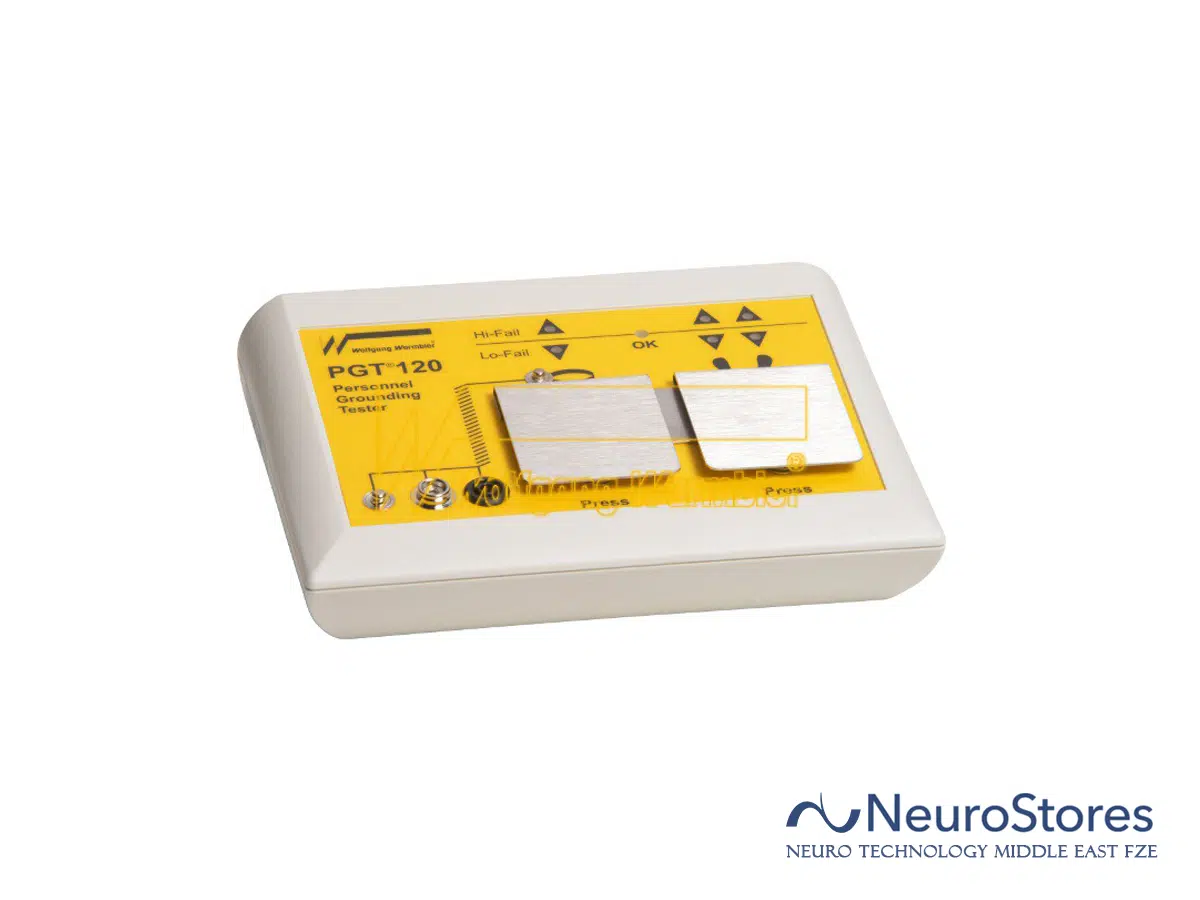

PGT®120 Standard version Personnel Grounding Tester

P/N: 7100.PGT120

The Personnel Grounding Tester PGT®120 is a wrist strap and footwear tester for access control of ESD protected areas (EPA-s)

The test result is indicated with audible and visual signals. A relay with a dry contact provides the connection to a door opening system
Power supply: Internal battery or external power supply unit
Wrist strap, right and left shoe testing is simultaneously possible by separate measuring circuits
In combination with a barrier gate, the footwear measurement can be performed in series without pressing a button (hands-free mode).
Separate measurement of left and right shoe
Lower limit disabling is possible
The unit can be used on bench tops or as a wall mounted unit (Wall mounting requires an additional wall mounting plate)
Adjustable limits through dip switches

P/N: 7100.PGT120

The Personnel Grounding Tester PGT®120 is a wrist strap and footwear tester for access control of ESD protected areas (EPA-s)

The test result is indicated with audible and visual signals. A relay with a dry contact provides the connection to a door opening system
Power supply: Internal battery or external power supply unit
Wrist strap, right and left shoe testing is simultaneously possible by separate measuring circuits
In combination with a barrier gate, the footwear measurement can be performed in series without pressing a button (hands-free mode).
Separate measurement of left and right shoe
Lower limit disabling is possible
The unit can be used on bench tops or as a wall mounted unit (Wall mounting requires an additional wall mounting plate)
Adjustable limits through dip switches
