OPTILIA
Product No: OP-209 010-IN
HDMI: OP-219 010-IN
- Working distance of 240mm
- 30x optical zoom
- Very fast and responsive auto-focus
- Laser pointer for precision
- Including boom stand and control unit
In-Line Full HD Inspection System
The Optilia In-Line W30x-HD Inspection System by installing an Inline HD system after solder paste printing, component placement or soldering is easy to discover and prevent failures early and reduce wastage and downtime. Accordingly, there are real financial advantages to using such systems because the sooner a failure can be detected the easier it can be addressed.
W30x-HD deploys cutting-edge High-definition live video technology and offers superior resolution, contrast and colour reproduction with its built-in 30x auto-focus zoom optics. This macro-inspection camera is ideal for visual examination and quality control of assembled boards, wires, connectors and similar objects. The large working distance of the W30x-HD optics is also suitable for repair and rework.

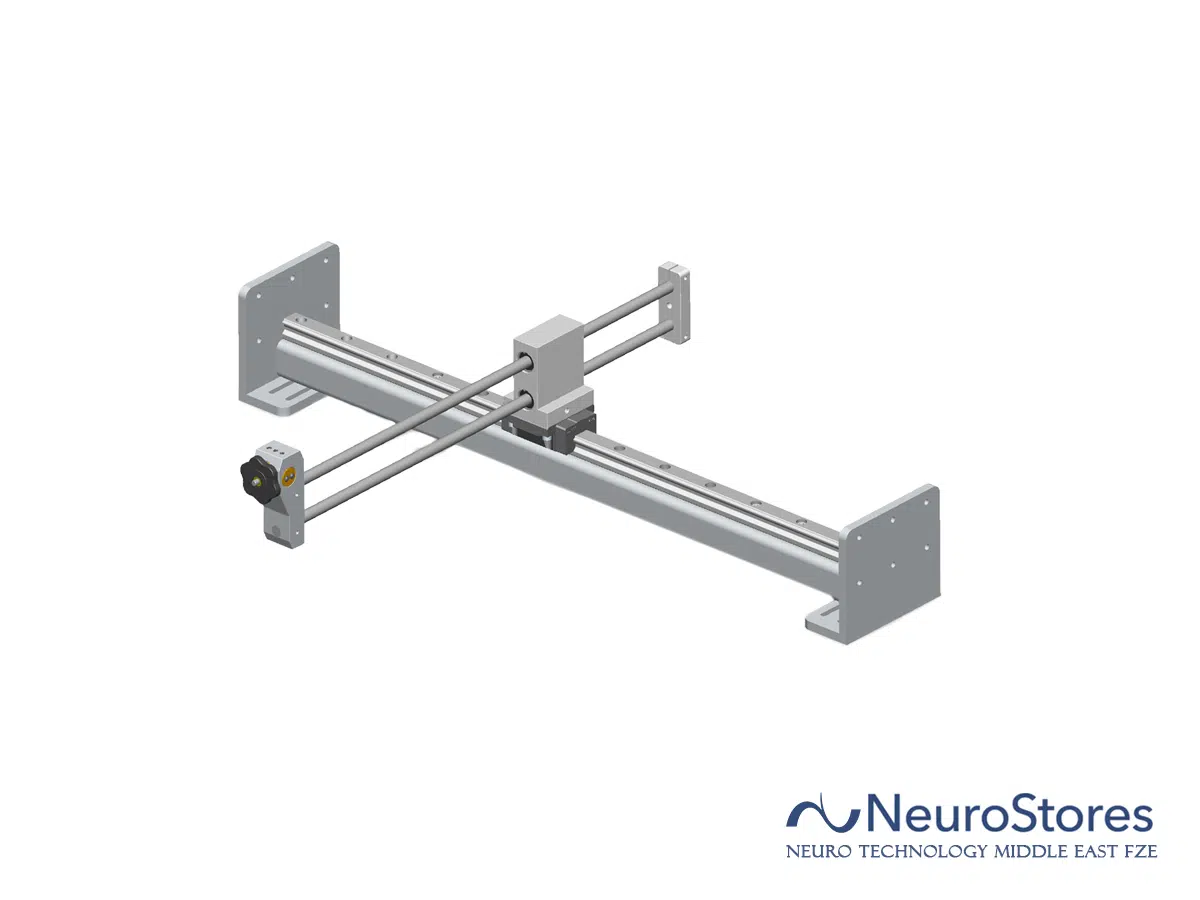

The XY-stand is with precision ball-bearing XY movement, specially developed for the in-line mounting of Optilia HD inspection cameras in production lines. Optilia’s HD camera can be moved smoothly and precisely along the X- and Y-direction above the inspection object using this stand. An optional 4-directional tilt unit can be assembled in front of the stand boom to change the direction angle of the camera for side inspection of objects.
The XY-stand can be ordered with a maximum lateral X-length of 1000mm (pole to pole) and a maximum longitudinal Y-length of 600mm. For larger Y-lengths, OP-006 342 with double housing boom assembly is provided!
If not specified, the standard X-length (Pole to pole) is 520mm (X-travel becomes approx. 400 mm).
If not specified, standard Y-travel is 400mm (double rod boom length is 500mm).
Can be upgraded with:
* -E Upgrade to ESD-protected housing
* –OP-006 334 Add 4-directions Camera Tilt unit
* –OP-009 220 Add Joystick Camera Control Unit, Double memory Save/Recall, Cross-line
