OPTILIA
Product No: OP-019 256
- Flexible and powerful digital vision system
- Excellent for pictures of solder balls under BGA packages
- Very fast and responsive auto focus
- Works great with OptiPix software
- Magnification of the lenses 5x – 350x

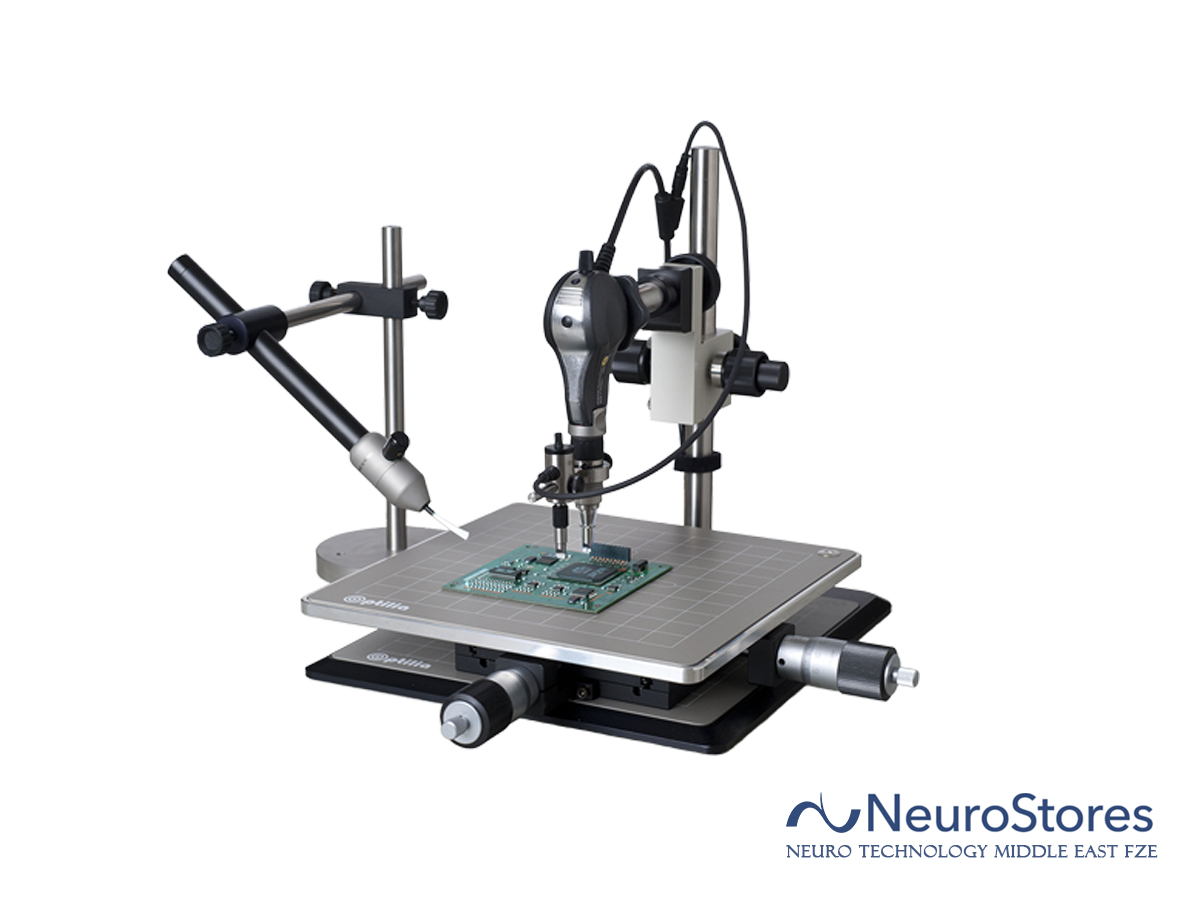

Optilia Digital BGA Inspection System, XL, ESD-protected
The Optilia BGA XL Inspection System a new ‘XL’ kit has been configured in response to market demand and targets users who regularly inspect larger boards. The XL kit fits into the range over the current top-of-the-line Optilia Extensive BGA inspection kit.
The key feature for improving the handling of larger boards is the inclusion of the extra-large double-boom stand. This can provide the required to reach up to 500mm and stability for placing the camera up to 300 mm over a board, more than double the reach capable using the Extensive kit.
Manoeuvring a board during inspection is also made easier by using the PCB holder, a popular accessory that is now included in the XL kit. These standard elements maintain the integrity of the system’s ESD protection.
Included Items when you purchase OP-019 256:
- Flexia Definition HM 5MP Digital ESD Inc. 100x Objective lens
- Side Viewing BGA lens with Ultra Small Size 90° optical probe
- Small Size 90° Optical probe for BGA lens
- BGA Micro Prism Background Illumination with electronic dimmer, Attachable
- Brush Light, White LED with Dimmer and 2xAA battery tube and DC-adapter
- Stand for Brush Light with large base and Extra long boom
- 1-100x varifocal lens with built-in LED ring light
- RingLight White LED for 100x Objective
- OptiPix Advanced with Data Base, including Calibration micrometer scale for BGA
- Extra large Rack&Pinion Boom Stand, Coarse/fine movement, ESD-protected
- Precision XY-Translation Board, 25x25mm travel, incl. 2x Quick feed micrometer screws. ESD-Protected
- PCB Holder, ESD-Protected
- Installation CD, User’s manual
- Annual service and support for OptiPix (1 year)
- Aluminum Transport Case, 380x295x80 with Foam inlet (one level)
