OPTILIA
Product No: OP-019 158
- Flexible and powerful digital vision system
- Excellent for pictures of solder balls under BGA packages
- Very fast and responsive auto-focus
- Works great with OptiPix software
- Magnification of the lenses 5x – 350x

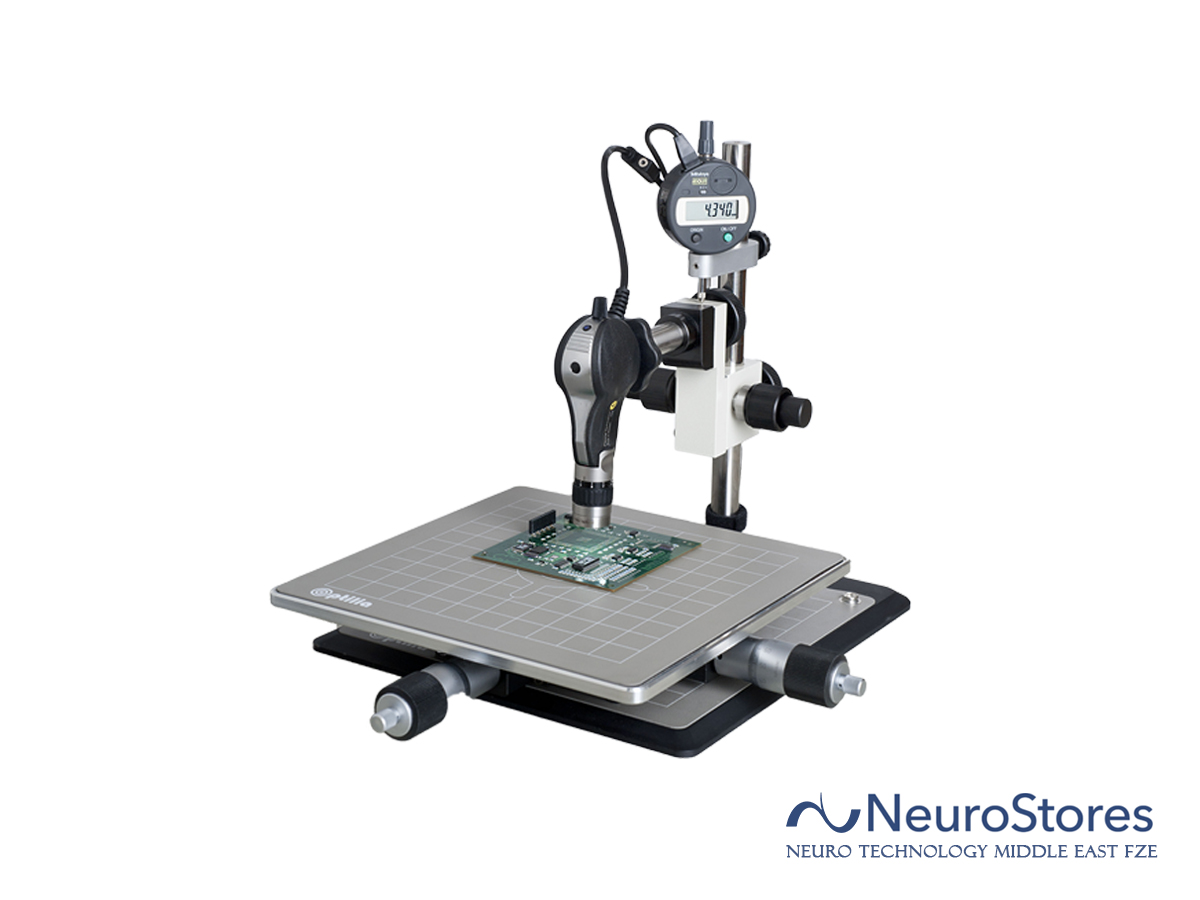

3-axis Optical XYZ-Measuring System, ESD-Protected
The Optilia 3-axis XYZ-Measuring Inspection System is a technically competitive 3-axis non-contact dimensional geometry measurement in electronics production and quality control. Designed for visual inspection, digital image recording, dimensional software measurement, documentation and reporting.
Flexia Vision measurement consists of the mobile Flexia D1 ESD digital microscope, high-quality optical lenses, high-intensity adjustable LED illumination, robust XY translation stage, digital height gauge, digital micrometer spindle and powerful OptiPix XYZ Measurement Software
Standard blue (non-esd) housing of this item is also available.
Included Items when you purchase OP-019 158:
- Flexia Definition HM 5MP, Digital ESD including 100x Objective lens
- 1-100x varifocal lens with built-in LED ring light
- Digital Height Indicator (0,001 mm resolution, 0,003 mm accuracy)
- Digital Height Indicator Interface box
- Signal cable, length 2m
- Standholder Assembly for Height Indicator
- 500x Objective Lens
- Diffuse ring light for 500x lens
- Ring-light for 100x lens
- Focusing Stand, Coarse/fine movement, ESD-protected
- Precision XY-board, 25x25mm travel, incl. 2x Quick feed micrometer screws. ESD-Protected.
- OptiPix Advanced with XYZ-measurement, including 0.1mm pitch Calibration Micrometer Scale
- Annual service and support for OptiPix (1 year)
