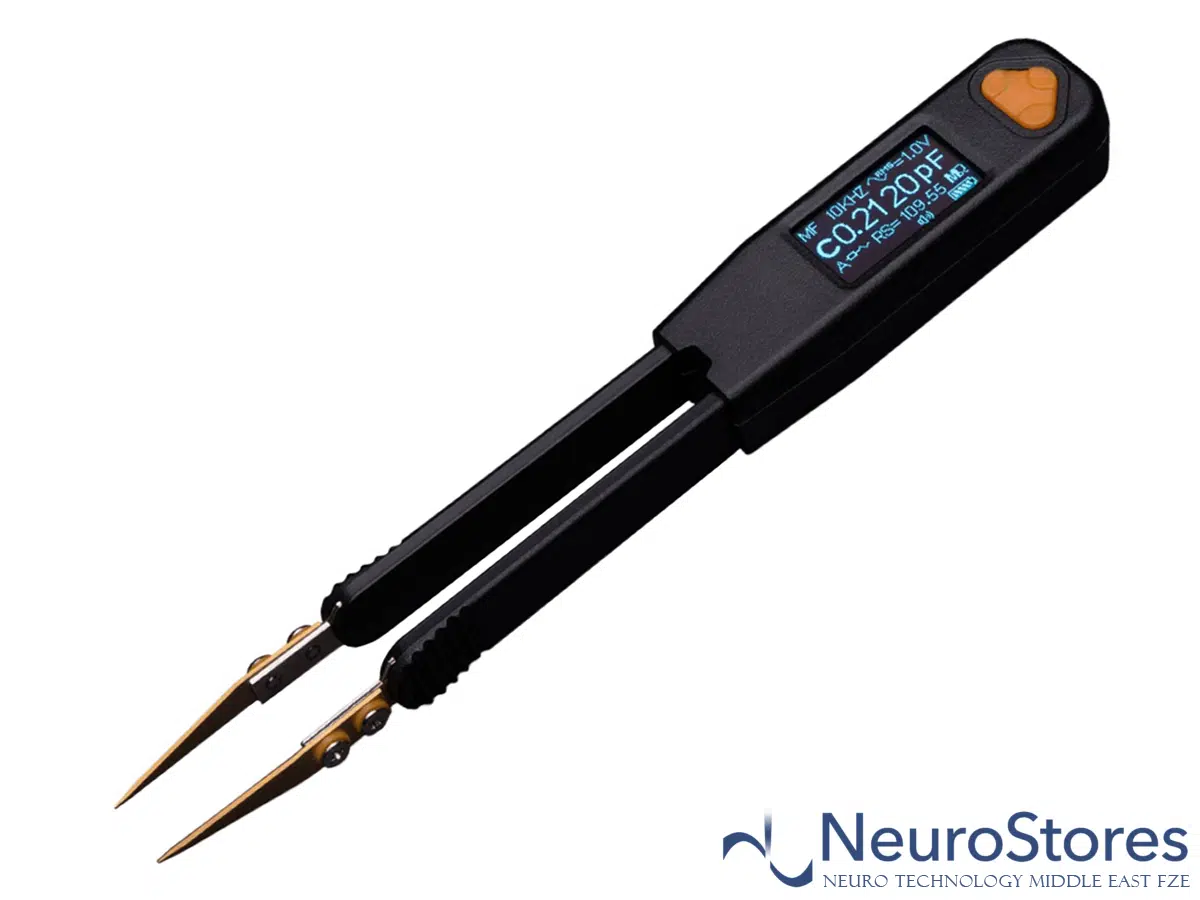

LCR Research Pro1 Plus LCR Meter

LCR RESEARCH

LCR Pro1 Plus

  • Automatic LED testing – display polarity, voltage and current
  • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.1pF to 10mF, L: 1nH to 1H
  • Easy operation – one hand use, full set of shortcuts
  • Fully auto/manual selection
  • High accuracy – R: 0.1%, L: 0.2%, C: 0.2%
  • 5 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
  • 3 test voltages – 0.2Vrms, 0.5Vrms, 1.0Vrms
  • Multiple functions – R, L, C, Z, ESR, DCR, D, Q, θ, etc.
  • Small size – 151 x 19 x 15mm
  • Large OLED display – 0.96″, 128 x 64 resolution
  • Ultra precise gold plated tips
  • Rechargeable LiPO battery with USB charging
  • PC remote control for data logging and programming
  • Additional functions – sorting, recording, diode and continuity

Tech Specs

Product Characteristics

Dimensions
(L x W x H)		  – 151 x 19 x 15mm
Weight  – 30g
Battery Life  – All day in typical use, one year in standby
Charging Time  – 2.5 hours (typical)

Test Signal Specification

Test Frequency  – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test Voltage  – 0.2Vrms/0.5Vrms/1.0Vrms
Source Impedance  – 100Ω

Measurement Range

Resistance  – 20mΩ to 10MΩ
Capacitance  – 0.1pF to 10mF
Inductance  – 1nH to 1H

Basic Accuracy

Resistance  – 0.1%
Capacitance  – 0.2%
Inductance  – 0.2%

Packing List

  • LCR Pro1 Plus Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
  • USB Cable
