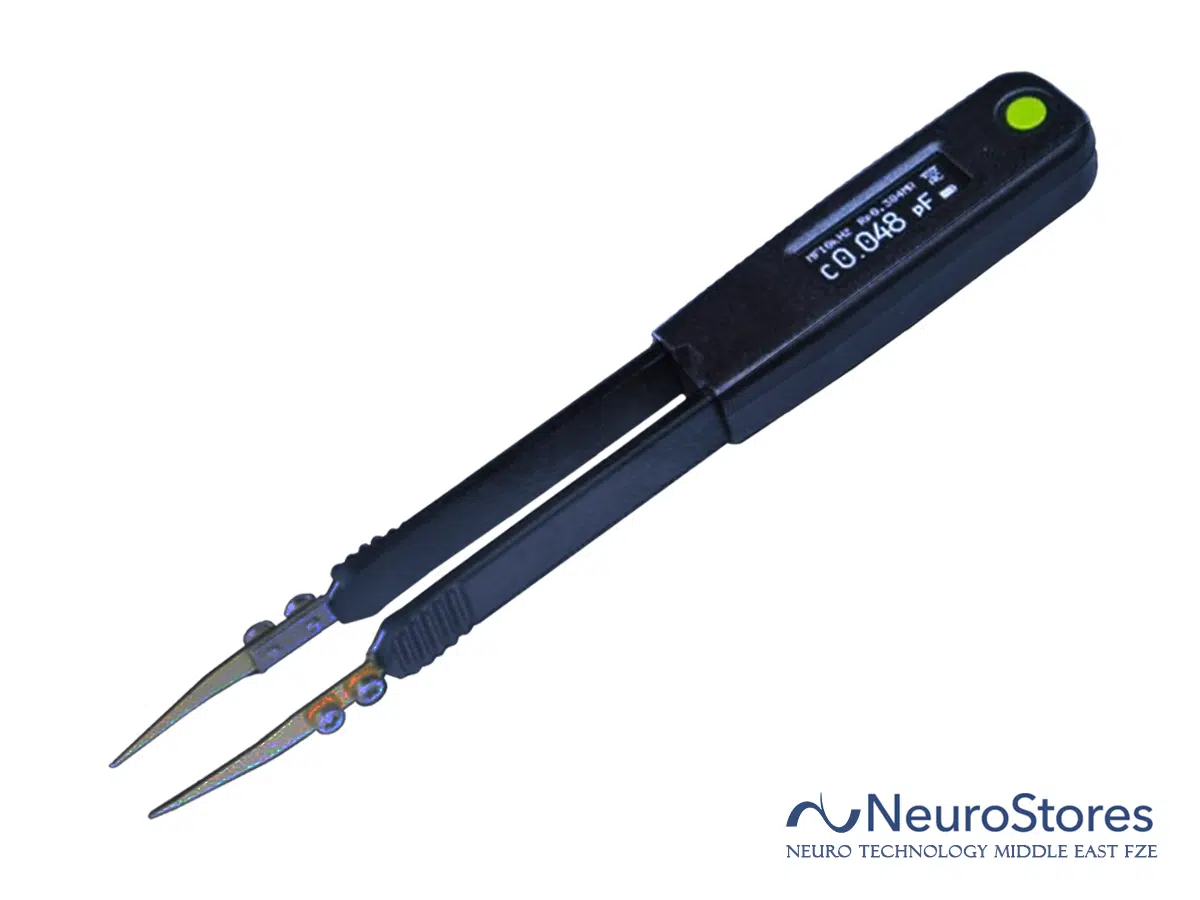

LCR Research Elite2 LCR Meter

LCR RESEARCH

LCR Elite2

    • Easy operation – one hand use with shortcuts
    • Fully auto/manual selection
    • High accuracy – R: 0.2%, L: 0.4%, C: 0.2%
    • 4 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz
    • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.1pF to 5mF, L: 0.1uH to
    • Small size – 151 x 19 x 14.5mm
    • Bright OLED display – 0.91″, 128 x 32 resolution
    • Precise gold plated tips
    • Rechargeable LiPO battery with USB charging

LCR Elite2 Overview

Tech Specs

Dimensions
(L x W x H)
 – 151 x 19 x 14.5mm
Weight  – 30g
Battery Life  – All day in typical use,
one year in standby
Charging Time  – 2.5 hours (typical)
Test Frequency  – 100Hz, 120Hz, 1kHz, 10kHz
Test Voltage  – 0.5Vrms
Source Impedance  – 100Ω
Resistance  – 20mΩ to 10MΩ
Capacitance  – 0.1pF to 5mF
Inductance  – 0.1uH to 1H
Resistance  – 0.20%
Capacitance  – 0.20%
Inductance  – 0.4%
  • LCR Elite2 Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
  • USB Cable
Category:

LCR RESEARCH

LCR Elite2

    • Easy operation – one hand use with shortcuts
    • Fully auto/manual selection
    • High accuracy – R: 0.2%, L: 0.4%, C: 0.2%
    • 4 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz
    • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.1pF to 5mF, L: 0.1uH to
    • Small size – 151 x 19 x 14.5mm
    • Bright OLED display – 0.91″, 128 x 32 resolution
    • Precise gold plated tips
    • Rechargeable LiPO battery with USB charging

LCR Elite2 Overview

Tech Specs

Dimensions
(L x W x H)
 – 151 x 19 x 14.5mm
Weight  – 30g
Battery Life  – All day in typical use,
one year in standby
Charging Time  – 2.5 hours (typical)
Test Frequency  – 100Hz, 120Hz, 1kHz, 10kHz
Test Voltage  – 0.5Vrms
Source Impedance  – 100Ω
Resistance  – 20mΩ to 10MΩ
Capacitance  – 0.1pF to 5mF
Inductance  – 0.1uH to 1H
Resistance  – 0.20%
Capacitance  – 0.20%
Inductance  – 0.4%
  • LCR Elite2 Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
  • USB Cable
