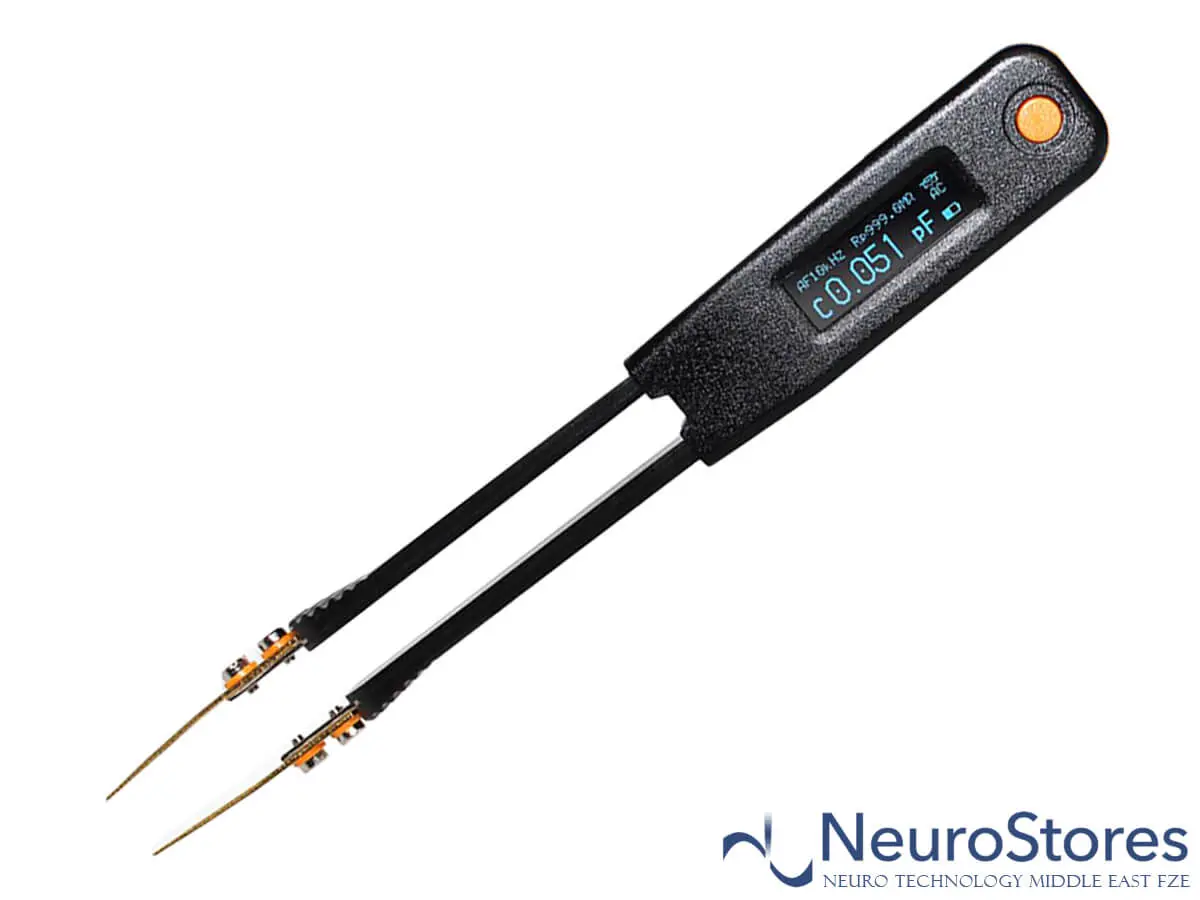

LCR Research Elite1 LCR Meter

LCR RESEARCH

LCR Elite1

  • Precise gold-plated tips for L, C, R measurement
  • Automatic or manual component identification
  • Automatic or manual test frequency selection
  • Automatic or manual circuit mode
  • One-hand operation to pick up SMD components easily
  • Portable design with bright OLED display
  • Built-in rechargeable Lithium-ion polymer battery
  • Standard USB charging via computer or USB power adapter

LCR Elite1 Overview

Tech Specs

Dimensions
(L x W x H)
 – 151 x 19 x 14.5mm
Weight  – 30g
Battery Life  – All day in typical use, one year in standby
Charging Time  – 2.5 hours (typical)
Test Frequency  – 100Hz, 1kHz, 10kHz
Test Voltage  – 0.5Vrms
Source Impedance  – 100Ω
Resistance  – 25mΩ to 10MΩ
Capacitance  – 0.3pF to 500uF
Inductance  – 100nH to 1H
Resistance  – 0.50%
Capacitance  – 1.00%
Inductance  – 1.00%
  • LCR Elite1 Portable LCR Meter
  • Storage Box
  • Quick Start Guide
  • NIST Certificate
