7100.CPM547100.CPM54

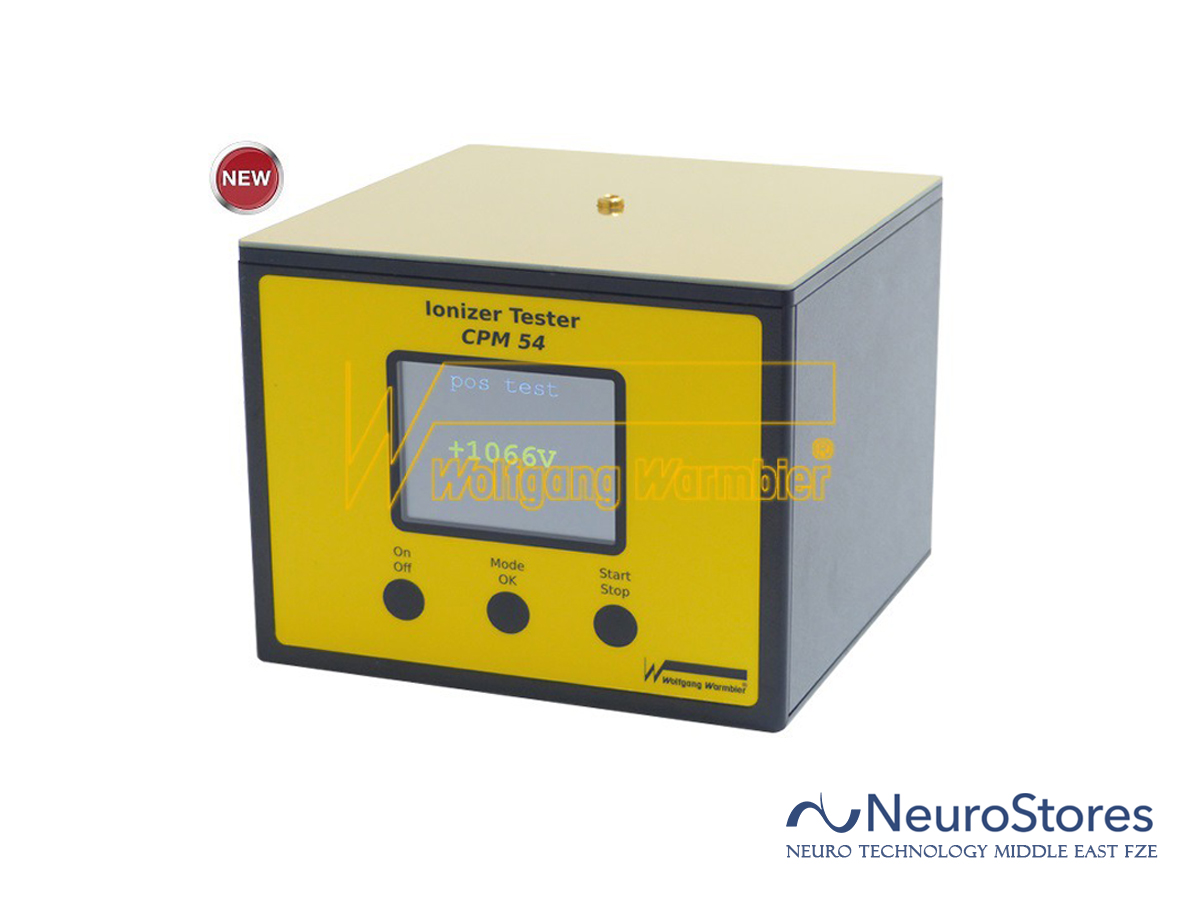

Ionizer Tester CPM54, Lithium Ion Batteries & Charger EU

WOLFGANG WARMBIER

N/P: 7100.CPM54

    • For measuring the discharge times and offset voltages of ionizers according to IEC 61340-4-7

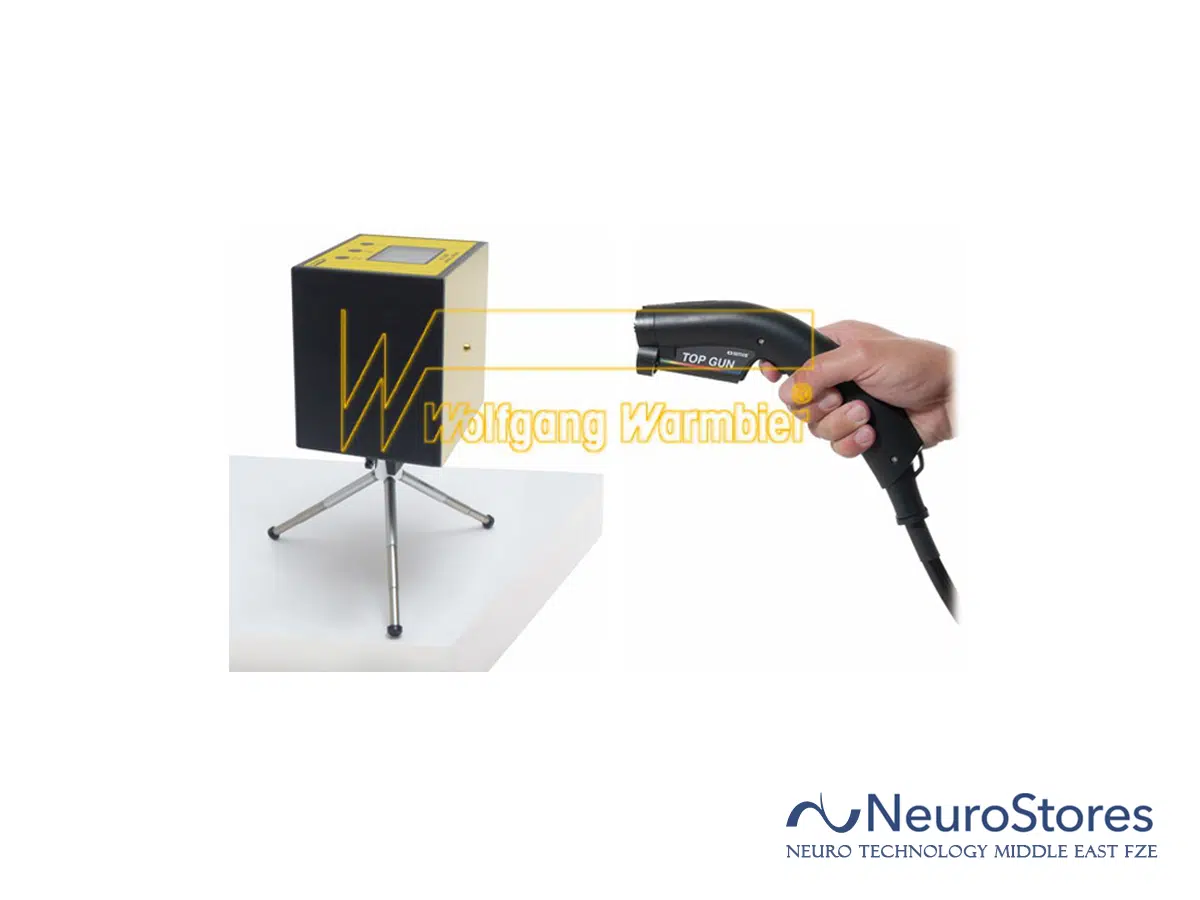

    • For the measurement of the body voltage (walking test)
    • It supports fully automatic testing of positive and negative discharges as well as offset voltages
    • Determines the discharge time of a preselected voltage threshold to a lower voltage value (standard ± 1000 V to ± 100 V), other start and stop values can be set
    • Measurement of voltage potential on an integrated plate electrode (150 x 150 mm) with a contacting plate measurement according to IEC 61340-4-7
    • Measurement of body voltages up to 2000V according to IEC 61340-4-5
    • Colour display
    • Dimensions: 150 x 173 x 125 mm (W x D x H)
    • Power supply: Lithium-ion batteries
    • Analog output: +/- 5 V (via BNC connection)
    • Weight: 1 kg (including batteries)
    • Mounting: ¼“ tripod socket
    • 1x Ionizer Tester CPM54
    • 3 x Lithium-Ion batteries
    • 1 x Charger with EU plug
    • 1 x Grounding cord
    • 1 x User’s manual (German/English)
    • 1 x Calibration certificate (German/English)
