HAKKO CORPORATION

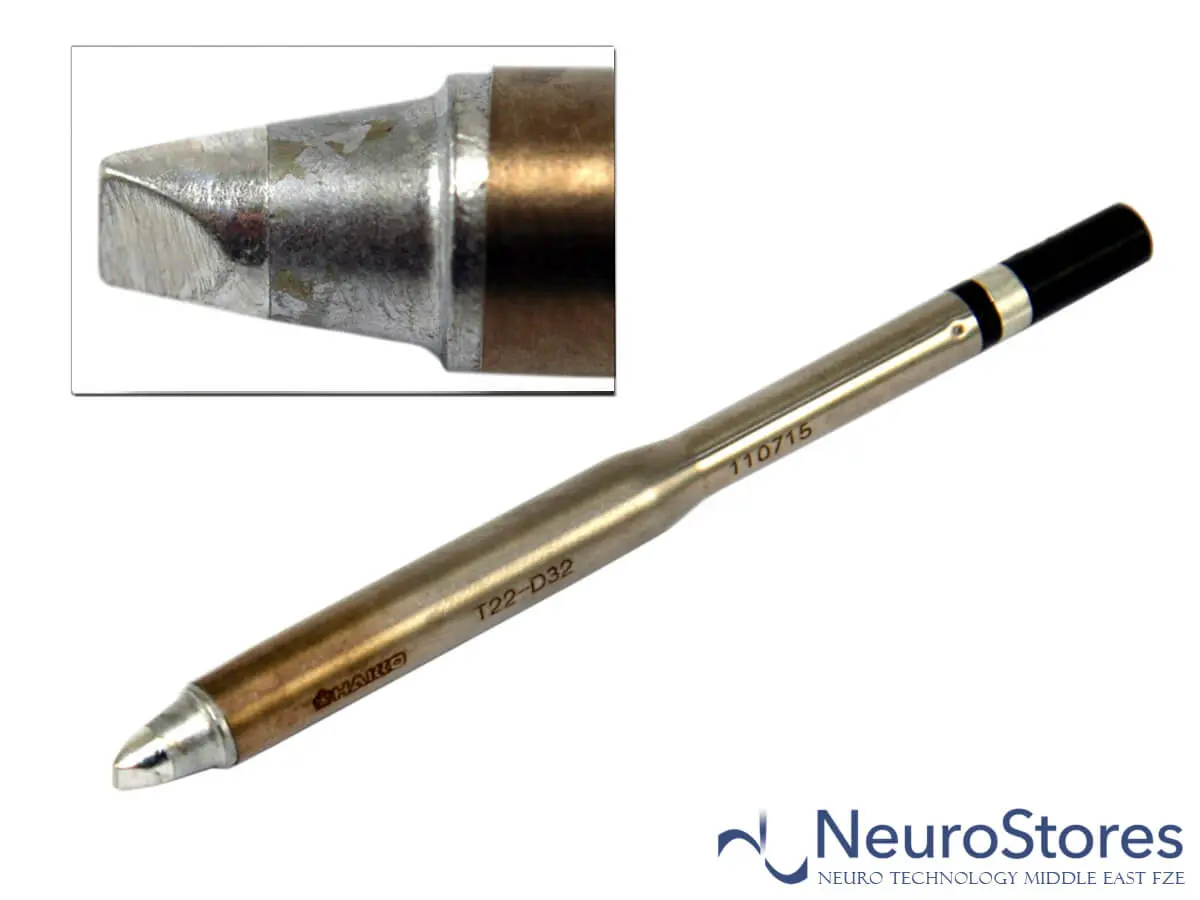

T22-D32 Chisel Tip shape 3.2 x 8mm for the Hakko FM-2030 and FM-2031 Heavy Duty Soldering Iron Handpiece
Note: For the HAKKO FM-2031, soldering iron tips and nozzle assemblies are not supplied as accessories. Please separately purchase “T22 Series” soldering iron tips and a compatible nozzle assembly onto the tip.
>> T22-D32 Tip:
Note: for N₂ system need B3124 Nozzle assembly D:
| >> T22 Series Tips: |
|---|
| Shape BC/C | |
|---|---|
| T22-BC2 | Shape-2BC Heavy Duty Type B3121 Nozzle assembly A |
| T22-C3 | Shape-3C Heavy Duty Type B3121 Nozzle assembly A |
| T22-C5 | Shape-5C Heavy Duty Type B3124 Nozzle assembly D |
| T22-C6 | Shape-6C Heavy Duty Type B3124 Nozzle assembly D |
| Shape B | |
|---|---|
| T22-BL | Shape-BL Heavy Duty Type B3121 Nozzle assembly A |
| T22-BL2 | Shape-2BL Heavy Duty Type B3121 Nozzle assembly A |
| Shape D | |
|---|---|
| T22-D08 | Shape-0.8D Heavy Duty Type B3123 Nozzle assembly C |
| T22-D12 | Shape-1.2D Heavy Duty Type B3121 Nozzle assembly A |
| T22-D16 | Shape-1.6D Heavy Duty Type B3123 Nozzle assembly C |
| T22-D24 | Shape-2.4D Heavy Duty Type B3561 Nozzle assembly E |
| T22-D32 | Shape-3.2D Heavy Duty Type B3124 Nozzle assembly D |
| T22-D45 | Shape-4.5D Heavy Duty Type B3124 Nozzle assembly D |
| T22-D52 | Shape-5.2D Heavy Duty Type B3124 Nozzle assembly D |
| Shape J | |
|---|---|
| T22-J02 | Shape-0.2J Heavy Duty Type B3121 Nozzle assembly A |
| T22-JD08 | Shape-0.8JD Heavy Duty Type B3561 Nozzle assembly E |
| Shape K | |
|---|---|
| T22-K | Shape-K Heavy Duty Type B3123 Nozzle assembly C |
|More Specifications (for N₂ system)
