With 200 W of power in a compact body, it performs a wide range of soldering works.

With improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.

It enables soldering in a shorter time and improves work efficiency.

It shows information such as set temperature, tip’s sensor temperature, and preset setting, clearly and widely.
The viewing angle is wide, and the high-brightness display provides high visibility.

8 different applications can be used without specifying the connecting port.

Connectable applications to the FX-972

• Soldering iron
  FX-9701

• N₂ Soldering iron
  FX-9702
  (option)

• Micro soldering iron
  FX-9703
  (option)

• Micro N₂ soldering iron
  FX-9704
  (option)

• Hot tweezers
  FX-9705
  (option)

• Micro hot tweezers
  FX-9706
  (option)

• Heavy-duty soldering iron
  FX-9707
  (option)

• Heavy-duty N₂ soldering iron
  FX-9708
  (option)

Any 2 applications from FX-9705, FX-9706, FX-9707, and FX-9708 cannot be used simultaneously.

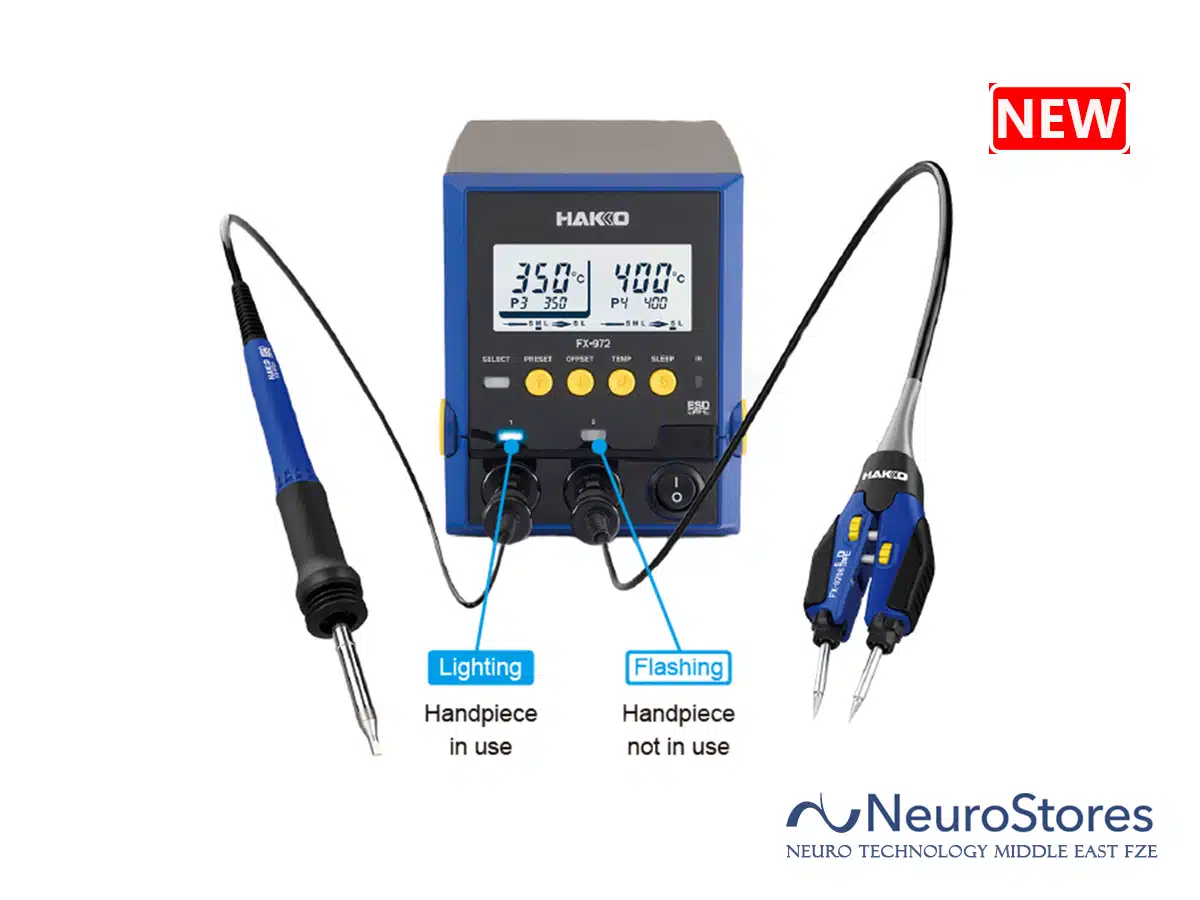

A built-in sensor detects the handpiece in use and automatically switches channels. The unused handpiece stands by at the set temperature.

Various settings can be easily configured using four buttons.

Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, e.g., on or under the workbench or on the rack.

The well-selected line-up of soldering tips
Soldering that was previously impossible or time-consuming can be improved with the tips in new shapes.

Automatic calibration and correction can be completed by sending the measured temperature value of the thermometer (FG-100B/FG-101B), via infrared.

*The thermometer shown is FG-100B

By connecting the station to the PC, the tip set temperature, calibration/correction, and the temperature history of the tip during operation are recorded on the PC, enabling management with zero human error.

The dedicated software is available for download on our website.
Click here to download the FX-972 software.

To download the software, both “user registration” and “product registration” are required.
Click here for “user registration” and “product registration”.

The built-in sensor of the tip inside makes it possible to use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.

Safe tip replacement

The newly designed iron holder allows easy and safe tip replacement with a tip removing attachment and tip insertion holder.

Removing a tip



Inserting a tip

• Total length and weight are measured without cord.

• Station
• Handpiece (FX-9701)
• Iron holder (FH-215, with a cleaning sponge and wire)
• Color band [qty 2]
• USB cable
• Power cord
• Instruction manual

Note:

• In FX-972, no soldering tip is included. Please purchase a soldering tip separately.
  T39 Series
• FX-972 without handpiece and iron holder is available in US only.

   INSTRUCTION MANUAL >

In FX-972, no soldering tip is included. Please purchase a “T39 Series” soldering tip separately.

T39 Series

|| Shape B

  T39-B02 Shape-0.2B
  T39-B05 Shape-0.5B
  T39-B07 Shape-0.7B
  T39-BL02 Shape-0.2BL
  T39-BLL02 Shape-0.2BLL
  T39-BS02 Shape-0.2BS
  T39-BS03 Shape-0.3BS

|| Shape BC

  T39-BC1020 Shape-BC hor:1mm vrt:2mm
  T39-BC1530 Shape-BC hor:1.5mm vrt:3mm
  T39-BC2040 Shape-BC hor:2mm vrt:4mm
  T39-BC2535 Shape-BC hor:2.5mm vrt:3.5mm
  T39-BC3065 Shape-BC hor:3mm vrt:6.5mm
  T39-BC3545 Shape-BC hor:3.5mm vrt:4.5mm
  T39-BCF1020 Shape-BC hor:1mm vrt:2mm Tinned cut surface only
  T39-BCF2535 Shape-BC hor:2.5mm vrt:3.5mm Tinned cut surface only
  T39-BCF3545 Shape-BC hor:3.5mm vrt:4.5mm Tinned cut surface only

|| Shape BCM

  T39-BCM2535 Shape-BC hor:2.5mm vrt:3.5mm with indent
  T39-BCM3545 Shape-BC hor:3.5mm vrt:4.5mm with indent

|| Shape C

  T39-C1020 Shape-C hor:1mm vrt:2mm
  T39-C1025 Shape-C hor:1mm vrt:2.5mm
  T39-C4055 Shape-C hor:4mm vrt:5.5mm
  T39-CF4055 Shape-C hor:4mm vrt:5.5mm Tinned cut surface only

|| Shape D

  T39-D08 Shape-0.8D
  T39-D12 Shape-1.2D
  T39-D16 Shape-1.6D
  T39-D24 Shape-2.4D
  T39-D32 Shape-3.2D
  T39-D4 Shape-4D
  T39-D52 Shape-5.2D
  T39-DL32 Shape-3.2DL
  T39-DL4 Shape-4DL
  T39-DL52 Shape-5.2DL
  T39-DLS15 Shape-1.5DLS
  T39-DS24 Shape-2.4DS
  T39-DS32 Shape-3.2DS
  T39-DS4 Shape-4DS
  T39-DS52 Shape-5.2DS

|| Shape I

  T39-I02 Shape-0.2I
  T39-IL02 Shape-0.2IL
  T39-ILS015 Shape-0.15ILS

|| Shape J

  T39-J02 Shape-0.2J
  T39-JL02 Shape-0.2JL
  T39-JS02 Shape-0.2JS
  T39-JD08 Shape-0.8JD
  T39-JD14 Shape-1.4JD
  T39-JD16 Shape-1.6JD

|| Shape K

  T39-K Shape-K
  T39-KF Shape-KF
  T39-KL Shape-KL
  T39-KR Shape-KR
  T39-KU Shape-KU

|| with Slot

  T39-BCR1235 Shape-BC with slot in: 1.2mm out: 3.5mm

|| with V-groove

  T39-BCR12 Shape-1.2BC with V-groove
  T39-BCR16 Shape-1.6BC with V-groove
  T39-BCR24 Shape-2.4BC with V-groove
  T39-BCR32 Shape-3.2BC with V-groove
  T39-BCR4 Shape-4BC with V-groove
  T39-BCR52 Shape-5.2BC with V-groove
  T39-DR12 Shape-1.2D with V-groove
  T39-DR16 Shape-1.6D with V-groove
  T39-DR24 Shape-2.4D with V-groove
  T39-DR32 Shape-3.2D with V-groove
  T39-DR4 Shape-4D with V-groove
  T39-DR52 Shape-5.2D with V-groove

|| Spatula for SMD work

  T39-SP104 10.4mm
  T39-SP157 15.7mm
  T39-SP212 21.2mm
