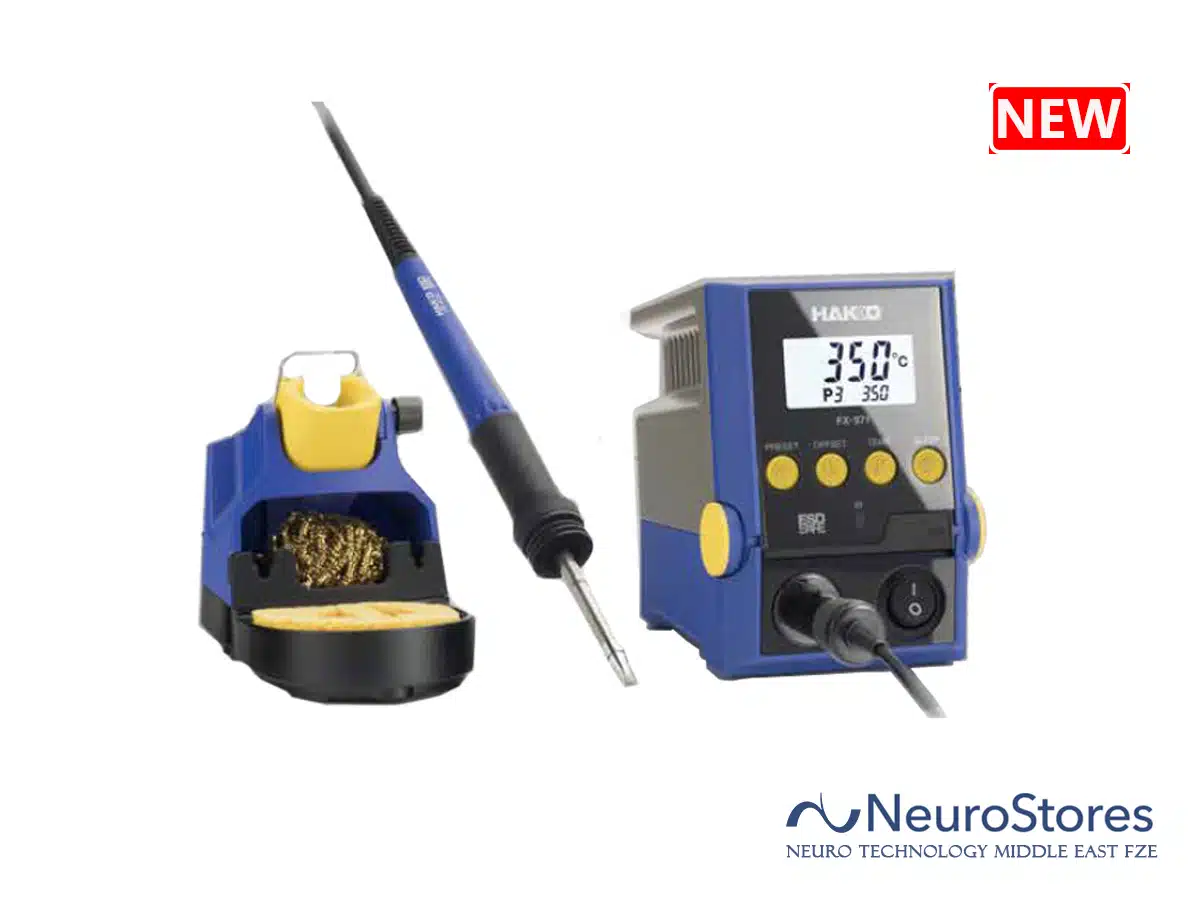

Hakko FX-971 Soldering Station, 220V 50/60Hz

HAKKO CORPORATION

LEAD-FREE

ESD SAFEEU RoHS

Hakko FX-971: Compact and high power station with space-saving design

  • A new level of workability not experienced ever
  • New composite tip (PATENTED) with improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.

Features

It enables soldering in a shorter time and improves work efficiency.

fx971_Cycle time comparisionfx971_Cycle time comparision

It shows information such as set temperature, tip’s sensor temperature, and preset setting, clearly and widely. The viewing angle is wide, and the high-brightness display provides high visibility.

fx971_display

Various settings can be easily configured using four buttons.

fx971_operation

Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, e.g., on or under the workbench or on the rack.

fx971_Tilt mechanismfx971_Tilt mechanism

The well-selected line-up of soldering tips.
Soldering that was previously impossible or time-consuming can be improved with the tips in new shapes.

T39-BCR1235Part No. T39-BCR1235T39-JD16Part No. T39-JD16T39-DR16Part No. T39-DR16T39-DS32Part No. T39-DS32

Automatic calibration and correction can be completed by sending the measured temperature value of the thermometer (FG-100B/FG-101B), via infrared.

Infrared communication*Photo is FG-100B

By connecting the station to the PC, the tip set temperature, calibration/correction, and the temperature history of the tip during operation are recorded on the PC, enabling management with zero human error.

Software

The dedicated software is available for download on the Hakko website.
Click here to download the FX-971 software.

The built-in sensor of the tip inside makes it possible to use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.

Safe tip replacement

The newly designed iron holder allows easy and safe tip replacement with a tip-removing attachment and tip insertion holder.


Removing a tipRemoving a tip with the right groove of the attachment


Inserting a tipInserting a tip by using the tip insertion holder

FX-9701Soldering iron FX-9701
FX-9702N2 Soldering iron FX-9702 (option)
FX-9703Micro soldering iron FX-9703 (option)
FX-9704Micro N2 soldering iron FX-9704 (option)

Model No.FX971-44
Power consumption100 W
Temperature range50 to 450℃
Temperature stability±3℃ (At idle temperature)
Station
Output voltageAC 24 V
DimensionsWhen tilted : 93 (W) × 126 (H) × 133 (D) mm
When not tilted : 93 (W) × 126 (H) × 123 (D) mm
Weight1.2 kg

Soldering Iron
Power consumption95 W (24 V)
Tip to ground resistance<2 Ω
Tip to ground potential<2 mV
Heating elementComposite heater
Cord length1.2 m
Total length206 mm (with T39-D24 tip)

Total length and weight are measured without a cord.

  • Station
  • Handpiece (FX-9701)
  • Iron holder (FH-215, with a cleaning sponge and wire)
  • USB cable
  • Power cord
  • Instruction manualFX-971

Note: In FX-971, no soldering tip is included. Please purchase a soldering tip separately. T39 Series

In FX-971, no soldering tip is included. Please purchase a “T39 Series” soldering tip separately.

T39 Series

|| Shape B

Shape-0.2B
Shape-0.5B
Shape-0.7B
Shape-0.2BL
Shape-0.2BLL
Shape-0.2BS
Shape-0.3BS

|| Shape BC

Shape-BC hor:1mm vrt:2mm
Shape-BC hor:1.5mm vrt:3mm
Shape-BC hor:2mm vrt:4mm
Shape-BC hor:2.5mm vrt:3.5mm
Shape-BC hor:3mm vrt:6.5mm
Shape-BC hor:3.5mm vrt:4.5mm
Shape-BC hor:1mm vrt:2mm Tinned cut surface only
Shape-BC hor:2.5mm vrt:3.5mm Tinned cut surface only
Shape-BC hor:3.5mm vrt:4.5mm Tinned cut surface only

|| Shape BCM

Shape-BC hor:2.5mm vrt:3.5mm with indent
Shape-BC hor:3.5mm vrt:4.5mm with indent

|| Shape C

Shape-C hor:1mm vrt:2mm
Shape-C hor:1mm vrt:2.5mm
Shape-C hor:4mm vrt:5.5mm
Shape-C hor:4mm vrt:5.5mm Tinned cut surface only

|| Shape D

Shape-0.8D
Shape-1.2D
Shape-1.6D
Shape-2.4D
Shape-3.2D
Shape-4D
Shape-5.2D
Shape-3.2DL
Shape-4DL
Shape-5.2DL
Shape-1.5DLS
Shape-2.4DS
Shape-3.2DS
Shape-4DS
Shape-5.2DS

|| Shape I

Shape-0.2I
Shape-0.2IL
Shape-0.15ILS

|| Shape J

Shape-0.2J
Shape-0.2JL
Shape-0.2JS
Shape-0.8JD
Shape-1.4JD
Shape-1.6JD

|| Shape K

Shape-K
Shape-KF
Shape-KL
Shape-KR
Shape-KU

|| with Slot

Shape-BC with slot in: 1.2mm out: 3.5mm

|| with V-groove

Shape-1.2BC with V-groove
Shape-1.6BC with V-groove
Shape-2.4BC with V-groove
Shape-3.2BC with V-groove
Shape-4BC with V-groove
Shape-5.2BC with V-groove
Shape-1.2D with V-groove
Shape-1.6D with V-groove
Shape-2.4D with V-groove
Shape-3.2D with V-groove
Shape-4D with V-groove
Shape-5.2D with V-groove

|| Spatula for SMD work

10.4mm
15.7mm
21.2mm

ReplacementPart No.NameSpecifications
FX9701-81Soldering iron FX-970195W(24V)
FX9701-811 FX-9701 conversion kit95W(24V)
B5288NippleWith sealing valve
B5289Sealing valve
FH215-81Iron holderWith cleaning sponge & cleaning wire

For FX-9701 and FX-9702

A1561Cleaning wire

For FH-215, FH-220 and FH-800

A5038Cleaning spongeYellow

For FH-215, FH-220 and FH-800

B5314Tip removing attachment

For FH-215

B5312Iron receptaclewith knob & retaining clip

For FH-215 and FH-220

B5313Knob
B2791Retaining clip
B5129USB cable1m
OptionPart No.NameSpecifications
FX9702-811FX-9702 conversion kit95W(24V)

For N2 soldering

FX9703-811FX-9703 conversion kit70W(24V)
FX9704-811FX-9704 conversion kit70W(24V)

For N2 soldering
