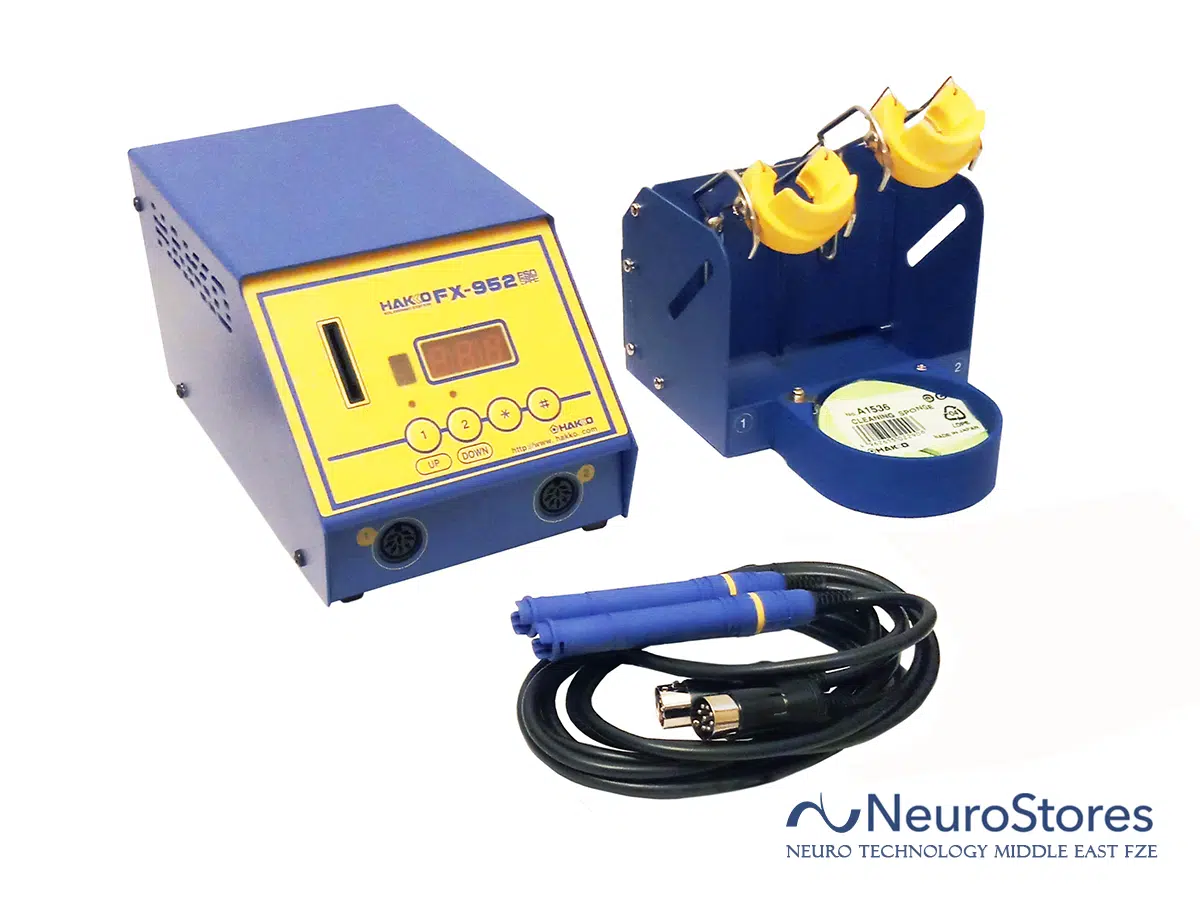

Hakko FX-952 Dual Soldering Station, 140W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

Hakko FX-952 a soldering station with two irons (The two-iron type of HAKKO FX-951)

  • Two different soldering iron tips selected according to component sizes can be simultaneously used
  • The temperature on each station can be centrally controlled with one station
  • Selectable soldering iron for an N2 system as usage at your option

Features

はんだごてHAKKO FM-2028

How to remove and insert the tip. (Movie: 1.3MB)

* Windows Media Player is required to watch the movie.
· Lock-type sleeve assembly attaches securely.
· Click sound ensures you easy and secure tip insertions.
· Four-color lineup of the sleeves
· Handy when using two different tips at the same time

FX-951製品特集

· Interlock mechanism with the iron holder makes setting of the power-save setting easy. スリープ機能付きこて台FH-2000
· Power-save function allows minute-by-minute setting. (up to 30 minutes)
· (0-29mins. — Sleep mode, 30 mins.— Auto-power, Shutoff)
· Possible to set power-save function on two different irons.
* New FX-952 has the same updated features as the new FX-951.

* Never changing heater performance ensures excellent thermal recovery.(ref. Graph)

The excellent thermal recovery allows the soldering with lower preset temperature. It is also useful for Lead-free soldering which requires higher melting temperature.

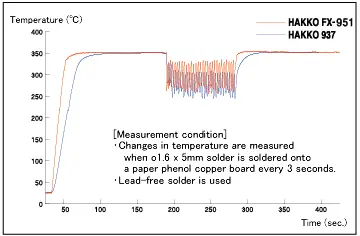

Thermal Recovery Graph (The comparison of HAKKO products)
Thermal Recovery Graph*Click here to enlarge

・Composite tip

コンポジットチップの構造The composite tip is a soldering tip integrated with heating element and sensor. Despite its highly compact design, the tip offers superior thermal responsivity and greatly improved thermal recovery.

T12シリーズのこて先は、従来のこて先形状に加えて、SMDタイプ(クワッド、トンネル、スパチュラ)、特殊加工タイプ、及び高熱容量タイプを追加 85 variations of HAKKO Tips accommodate various types of soldering from IC modifications to soldering to power sections.
Tips for HAKKO FX-951 depend on the market.
T12 Series for Japan, Oceania, Asia & Other countries

T15 Series for North America & EU

・Commitment to iron holders

HAKKO FH-201 Iron Holder : Adjustable iron holders designed to be user-friendly Perfect for working when seated or standing

· Freely adjust iron holder angle.
· Two-stage height adjustment.
· Adjust height of left and right holders individually.

[Note] Be sure to tighten both screws firmly.
(Failure to tighten the screws firmly may cause the sleep function to not work correctly)

A variety of height and angle settings are possible.
HAKKO FH-201 Iron Holder: Adjusting examples

・Thermal Management

HAKKO FX-952 Thermal management · Possible to lock the temperature with the control card.
· Digital offset makes temperature correction easy.
· Capable of lower limit temperature setting.

Can be used in combination with the HAKKO 490 smoke cleaner or the HAKKO 494 smoke absorbing system for line-production.

卓上はんだクリーナーとの組合せ HAKKO 490 ライン用吸煙システムとの組合せ HAKKO 494



HAKKO 490                > HAKKO 494

Troubleshooting

The soldering tip does not get hot. Why?

Case1 “S-E” appears on the display.

> Causes and countermeasures

"S-E" appears on the LCD.

Case2 “C-E” appears on the display.

> Causes and countermeasures

"C-E" appears on the LCD.

Case3 Only the soldering iron number appears on the display.

> Causes and countermeasures Only the soldering iron number appears on the LCD.

Check the display after switching to the soldering iron number for the soldering iron that does not get hot. Only the soldering iron number appears as shown in the pictures above.

Case4 Nothing appears on the display.

> Causes and countermeasures

Nothing appears on the LCD.

Case5 “—” appears on the display.

> Causes and countermeasures "---" appears on the LCD.

Model No.FX952-61
Power consumption140W
Temperature range200 to 450ºC
Temperature stability±5ºC at idle temperature

Station
Output voltageAC 24V
Dimensions113(W)×106(H)×206(D)mm
Weight2.6kg

Soldering Iron
Power consumption70W (24V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length188mm (with 2.4D tip)
Weight30g (with 2.4D tip)

* Total length and weight (w/o cord)

  1. Station (HAKKO FX-952) (1)
  2. Soldering iron (HAKKO FM-2028) (2)
  3. Control card (1)
  4. Power cord (1)
  5. Heat resistant pad (1)
  6. Iron holder (1)
  7. Connecting cable (2)
  8. Instruction manual(1)

In FX-951, no soldering tip is included. Please purchase a soldering tip separately.

T12 Series

|| Shape BCM/CM

Shape-2BC with indent
Shape-3BC with indent

|| Shape BC/C

Shape-1BC
Shape-1BC(Z) Long life type
Shape-2BC
Shape-2BC(Z) Long life type
Shape-3BC
Shape-3BC(Z) Long life type
Shape-1BC Tinned cut surface only
Shape-1BC(Z) Tinned cut surface only, Long life type
Shape-2BC Tinned cut surface only
Shape-2BC(Z) Tinned cut surface only, Long life type
Shape-3BC Tinned cut surface only
Shape-3BC(Z) Tinned cut surface only, Long life type
Shape-0.8C
Shape-1C
Shape-4C
Shape-4C(Z) Long life type
Shape-4C Tinned cut surface only
Shape-4C(Z) Tinned cut surface only, Long life type

|| Shape B

Shape-B
Shape-0.5B
Shape-0.5B(Z) Long life type
Shape-0.7B
Shape-0.4B
Shape-BL For narrow pitch with tall chips around
Shape-B(Z) Long life type
Shape-0.5WB(Z) For heavy-duty soldering

|| Shape D

Shape-0.8D
Shape-1.2D
Shape-1.2D(Z) Long life type
Shape-1.6D
Shape-1.6D(Z) Long life type
Shape-2.4D
Shape-2.4D(Z) Long life type
Shape-4D
Shape-4D(Z) Long life type
Shape-5.2D
Shape-0.8DL
Shape-1.2DL
Shape-3.2DL
Shape-5.2DL
Shape-0.8WD For heavy-duty soldering
Shape-1.2WD For heavy-duty soldering
Shape-1.6WD For heavy-duty soldering
Shape-5.2WD For heavy-duty soldering

|| Shape I

Shape-I
Shape-IL
Shape-ILS For narrow-pitch soldering
Shape-WI For heavy-duty soldering

|| Shape J

Shape-0.2J
Shape-0.2JL
Shape-0.2JS For narrow-pitch soldering

|| Shape K

Shape-K
Shape-KF
Shape-KF(Z) Long life type
Shape-KL For drag soldering for left-handed
Shape-KR For drag soldering for right-handed
Shape-KR(Z) Long life type
Shape-KU

|| SMD Type: Shape Quad

13.6mm x 8.5mm
10.3mm x 10.3mm
12.8mm x 12.8mm
17.9mm x 17.9mm
23.4mm x 17.3mm
22.5mm x 16.5mm
15.5mm x 15.5mm
15.8mm x 15.8mm
8.4mm x 8.4mm

|| SMD Type: Shape Tunnel

5.1mm x 4.6mm
5.1mm x 10.4mm
9.5mm x 18.3mm
9.5mm x 15.8mm
9.5mm x 13.2mm
6.9mm x 11.4mm
7.9mm x 18.8mm
19.5mm x 10.2mm
13.4mm x 20.5mm
19.5mm x 12mm

|| SMD Type: Shape Spatula

10.4mm
15.7mm
21.2mm
25mm
32mm
40mm

|| Shape Concave

with V-groove
with concave
