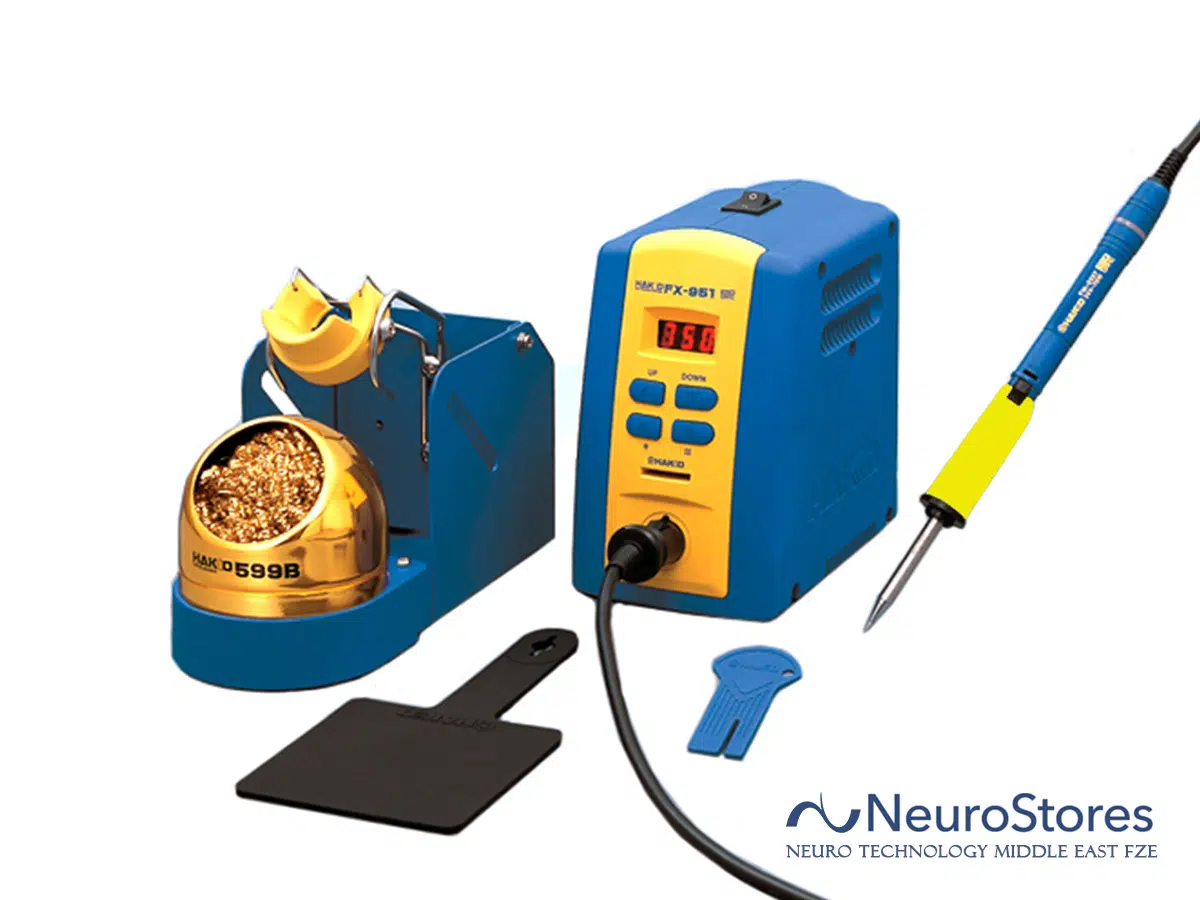

Hakko FX-951 Soldering Station, 75W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREEESD SAFE

Hakko FX-951: Compact high-power thermally-controlled soldering iron

  • Standard model that ensures high thermal recovery needed for lead-free soldering
  • Selectable soldering iron for N2 system or micro soldering as usage at your option

Features

*Our commitment to producing iron holders

Our commitment to producing iron holdersThe angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
It shows HAKKO’s commitment to soldering iron base stand which is used hundreds of times a day.

Three Features of the Soldering Iron HAKKO FM-2028

* Interlock mechanism with the iron holder makes the setting of the power-save setting easy.
* Power-save function allows minute-by-minute setting. (up to 30 minutes)
0-29mins. — Sleep mode,
30 mins.— Auto-power, Shutoff
* Enclosed type iron holder ensures safety.

*  Uses lock-type Sleeve Assembly soldering iron.

HAKKO FM-2028



> HAKKO FM-2028

 How to remove and insert the tip. (Movie: 1.3MB)

* Windows Media Player is required to watch the movie.
・ Lock-type sleeve assembly attaches securely.
・ Click sound ensures you easy and secure tip insertions.
・ Four-color lineup of the sleeves

NOTEThe optional HAKKO FM-2026 and HAKKO FM-2032 are not lockable.

・Compositetip

 The composite tip is a soldering tip integrated with heating element and sensor. Despite its highly compact design, the tip offers superior thermal responsivity and greatly improved thermal recovery.

・Used in combination with a smoke absorber

Can be used in combination with the HAKKO 490 smoke cleaner or the HAKKO 494 smoke absorbing system for line-production.

NOTEDoes not support the HAKKO FM-2026 or HAKKO FM-2032.

HAKKO 490HAKKO 494





> HAKKO 490                 HAKKO 494

Model No.FX951-57
Power consumption75W
Temperature range200 to 450ºC
Temperature stability±5ºC at idle temperature

Station
Output voltageAC 24V
Dimensions80(W)×130(H)×131(D)mm
Weight1.2kg

Soldering Iron
Power consumption70W (24V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length188mm (with 2.4D tip)
WeightWeight 30g (with 2.4D tip)

* Total length and weight (w/o cord)

  1. Soldering Station (HAKKO FX-951)
  2. Soldering Iron (HAKKO FM-2028*)
  3. Card, Power Cord
  4. Heat Resistant Pad
  5. Iron Holder
  6. Connecting cable
  7. Instruction Manual (One of each unless specified)

FX-951

No soldering tip is included. Please purchase a soldering tip separately.

T12 Series

|| Shape BCM/CM

Shape-2BC with indent
Shape-3BC with indent

|| Shape BC/C

Shape-1BC
Shape-1BC(Z) Long life type
Shape-2BC
Shape-2BC(Z) Long life type
Shape-3BC
Shape-3BC(Z) Long life type
Shape-1BC Tinned cut surface only
Shape-1BC(Z) Tinned cut surface only, Long life type
Shape-2BC Tinned cut surface only
Shape-2BC(Z) Tinned cut surface only, Long life type
Shape-3BC Tinned cut surface only
Shape-3BC(Z) Tinned cut surface only, Long life type
Shape-0.8C
Shape-1C
Shape-4C
Shape-4C(Z) Long life type
Shape-4C Tinned cut surface only
Shape-4C(Z) Tinned cut surface only, Long life type

|| Shape B

Shape-B
Shape-0.5B
Shape-0.5B(Z) Long life type
Shape-0.7B
Shape-0.4B
Shape-BL For narrow pitch with tall chips around
Shape-B(Z) Long life type
Shape-0.5WB(Z) For heavy-duty soldering

|| Shape D

Shape-0.8D
Shape-1.2D
Shape-1.2D(Z) Long life type
Shape-1.6D
Shape-1.6D(Z) Long life type
Shape-2.4D
Shape-2.4D(Z) Long life type
Shape-4D
Shape-4D(Z) Long life type
Shape-5.2D
Shape-0.8DL
Shape-1.2DL
Shape-3.2DL
Shape-5.2DL
Shape-0.8WD For heavy-duty soldering
Shape-1.2WD For heavy-duty soldering
Shape-1.6WD For heavy-duty soldering
Shape-5.2WD For heavy-duty soldering

|| Shape I

Shape-I
Shape-IL
Shape-ILS For narrow-pitch soldering
Shape-WI For heavy-duty soldering

|| Shape J

Shape-0.2J
Shape-0.2JL
Shape-0.2JS For narrow-pitch soldering

|| Shape K

Shape-K
Shape-KF
Shape-KF(Z) Long life type
Shape-KL For drag soldering for left-handed
Shape-KR For drag soldering for right-handed
Shape-KR(Z) Long life type
Shape-KU

|| SMD Type : Shape Quad

13.6mm x 8.5mm
10.3mm x 10.3mm
12.8mm x 12.8mm
17.9mm x 17.9mm
23.4mm x 17.3mm
22.5mm x 16.5mm
15.5mm x 15.5mm
15.8mm x 15.8mm
8.4mm x 8.4mm

|| SMD Type : Shape Tunnel

5.1mm x 4.6mm
5.1mm x 10.4mm
9.5mm x 18.3mm
9.5mm x 15.8mm
9.5mm x 13.2mm
6.9mm x 11.4mm
7.9mm x 18.8mm
19.5mm x 10.2mm
13.4mm x 20.5mm
19.5mm x 12mm

|| SMD Type : Shape Spatula

10.4mm
15.7mm
21.2mm
25mm
32mm
40mm

|| Shape Concave

with V-groove
with concave
