Hakko FX-950: Compact High-Power Analog-Type Lead-Free Soldering Iron
(Compatible with T12 Series Soldering Tips)
- Analog type of HAKKO FX-951
- Lock key enables temperature control even on this analog type unit
- Selectable soldering iron for N2 system as usage at your option
Features
The excellent thermal recovery allows setting lower preset temperatures.
It is also useful for lead-free soldering which requires higher melting temperatures.

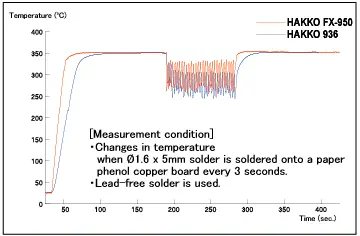

Thermal Recovery Graph (Comparison of HAKKO products)
*Click here to enlarge
・Composite tip
The composite tip is a soldering tip integrated with heating element and sensor. Despite its highly compact design, the tip offers superior thermal responsivity and greatly improved thermal recovery.
How to remove and insert the tip (Movie: 1.3MB)
*Windows Media Player is required to watch the movie.
-Click sound ensures easy and secure tip insertions.
-Four-color lineup of sleeves allows you to distinguish the various tips easily.
85 variations of HAKKO tips are available for various types of soldering from IC modifications to soldering of power sections.
-The lock key can lock the present temperature.
-Digital offset makes temperature correction easy
The compact design is well-suited to cell production.
80mm (W) × 118mm (H) × 138mm (D)
Smart design for optimized work.
> Soldering iron holder can be set to any angle safely.
> LED lamp to indicate errors
Equipped with sleep function*: If optional Iron Holder (FH200-01 or FH200-02) and Connection Cable (B3253) are connected, sleep function can be used.
* Sleep function: When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering.
| Model No. | FX950-08 |
|---|---|
| Power consumption | 75W |
| Temperature range | 200 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
|---|---|
| Output voltage | AC 24V |
| Dimensions | 80(W)×118(H)×138(D)mm |
| Weight | 1.2kg |
| Soldering Iron | |
|---|---|
| Power consumption | 70W (24V) |
| 70W (24V) Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
* Total length and weight (w/o cord)

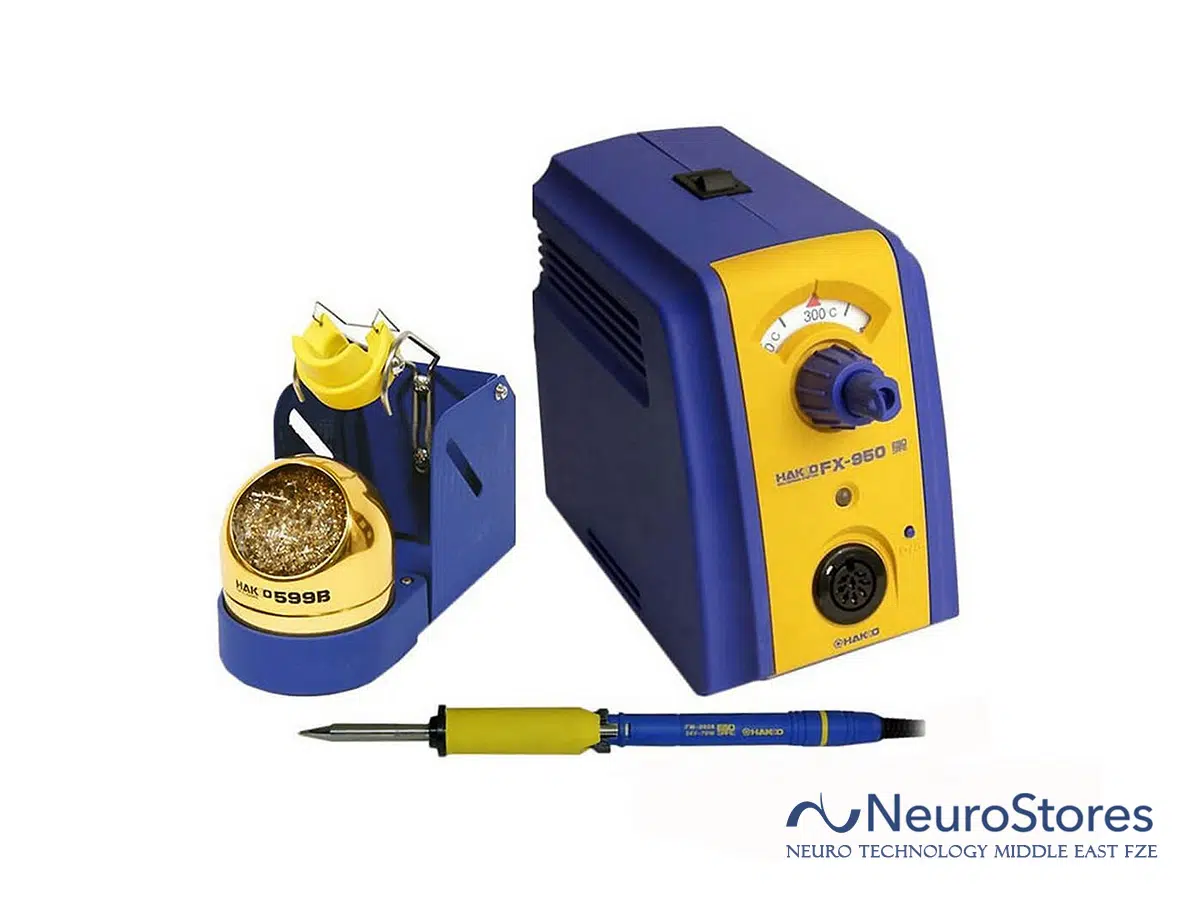

- Soldering Station(FX-950)
- Soldering Iron(FM-2028)
- Lock Key
- Heat-Resistant Pad
- Iron Holder (FH-101, with cleaning sponge)
- Instruction Manual
Note: A soldering tip is not included in this product. The tips of the desired shape should be purchased separately.
No soldering tip is included. Please purchase a soldering tip separately.
T12 Series
|| Shape BCM/CM
Shape-2BC with indent
Shape-3BC with indent
|| Shape BC/C
Shape-1BC
Shape-1BC(Z) Long life type
Shape-2BC
Shape-2BC(Z) Long life type
Shape-3BC
Shape-3BC(Z) Long life type
Shape-1BC Tinned cut surface only
Shape-1BC(Z) Tinned cut surface only, Long life type
Shape-2BC Tinned cut surface only
Shape-2BC(Z) Tinned cut surface only, Long life type
Shape-3BC Tinned cut surface only
Shape-3BC(Z) Tinned cut surface only, Long life type
Shape-0.8C
Shape-1C
Shape-4C
Shape-4C(Z) Long life type
Shape-4C Tinned cut surface only
Shape-4C(Z) Tinned cut surface only, Long life type
|| Shape B
Shape-B
Shape-0.5B
Shape-0.5B(Z) Long life type
Shape-0.7B
Shape-0.4B
Shape-BL for narrow pitch with tall chips around
Shape-B(Z) Long life type
Shape-0.5WB(Z) For heavy-duty soldering
|| Shape D
Shape-0.8D
Shape-1.2D
Shape-1.2D(Z) Long life type
Shape-1.6D
Shape-1.6D(Z) Long life type
Shape-2.4D
Shape-2.4D(Z) Long life type
Shape-4D
Shape-4D(Z) Long life type
Shape-5.2D
Shape-0.8DL
Shape-1.2DL
Shape-3.2DL
Shape-5.2DL
Shape-0.8WD for heavy-duty soldering
Shape-1.2WD for heavy-duty soldering
Shape-1.6WD for heavy-duty soldering
Shape-5.2WD for heavy-duty soldering
|| Shape I
Shape-I
Shape-IL
Shape-ILS for narrow-pitch soldering
Shape-WI for heavy-duty soldering
|| Shape J
Shape-0.2J
Shape-0.2JL
Shape-0.2JS for narrow-pitch soldering
|| Shape K
Shape-K
Shape-KF
Shape-KF(Z) Long life type
Shape-KL for drag soldering for left-handed
Shape-KR for drag soldering for right-handed
Shape-KR(Z) Long life type
Shape-KU
|| SMD Type: Shape Quad
13.6mm x 8.5mm
10.3mm x 10.3mm
12.8mm x 12.8mm
17.9mm x 17.9mm
23.4mm x 17.3mm
22.5mm x 16.5mm
15.5mm x 15.5mm
15.8mm x 15.8mm
8.4mm x 8.4mm
|| SMD Type: Shape Tunnel
5.1mm x 4.6mm
5.1mm x 10.4mm
9.5mm x 18.3mm
9.5mm x 15.8mm
9.5mm x 13.2mm
6.9mm x 11.4mm
7.9mm x 18.8mm
19.5mm x 10.2mm
13.4mm x 20.5mm
19.5mm x 12mm
|| SMD Type: Shape Spatula
10.4mm
15.7mm
21.2mm
25mm
32mm
40mm
