Hakko FX-889 Dual Soldering Station, 135W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

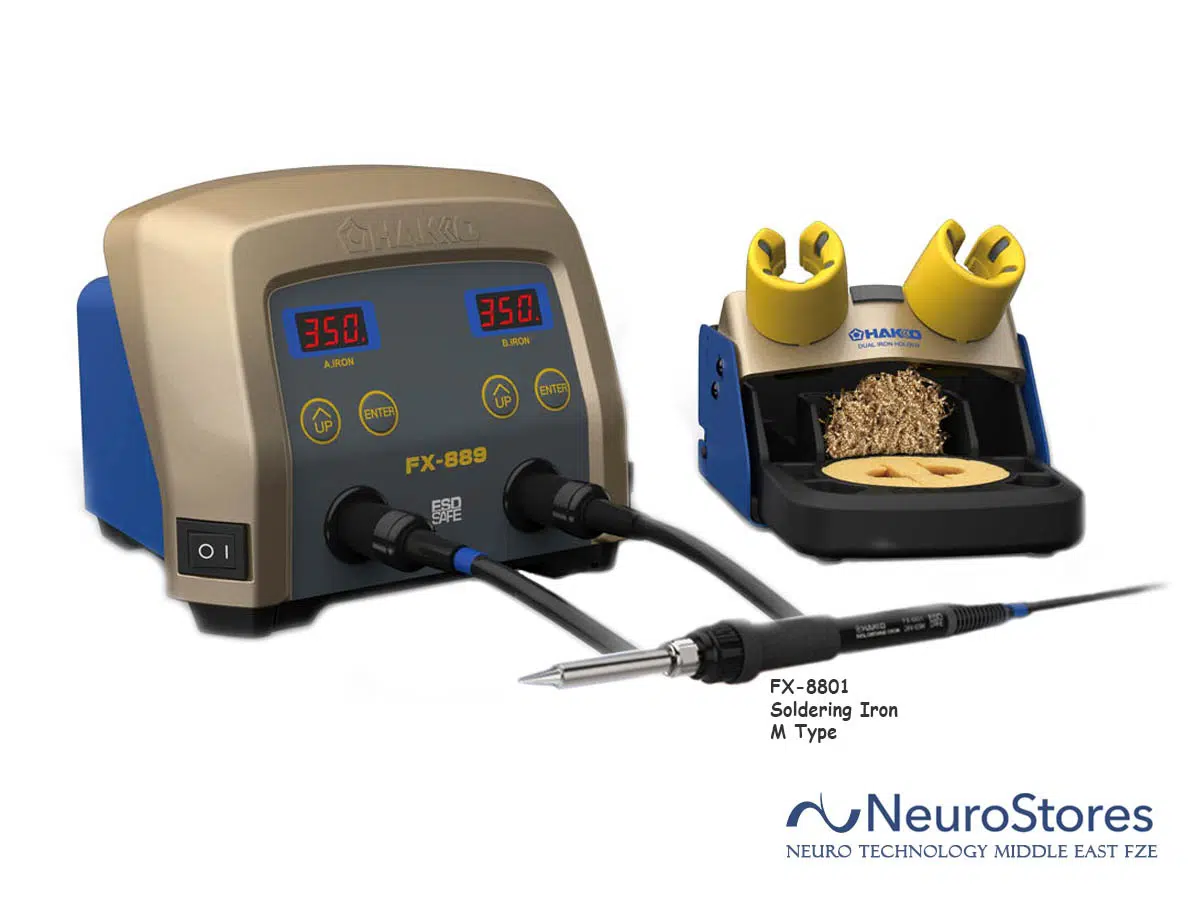

Hakko FX-889 dual-port station allows 2 handpieces to work simultaneously

  • Many functions – Adjust mode, Preset Mode, Password function
  • N2 iron (FX-8802) as an optional accessory

Features

A newly born HAKKO FX-889 has 2 ports to support a variety of handpieces such as soldering irons of different power profile, gun type iron, tools for SMD rework.

  *Click on the image to see a larger image.

Excellent thermal conductivity

T18 and T19 tip series are designed to have improved thermal conductivity from their previous models by reviewing both external and internal structures.

Digital display

The digital display shows the set temperature at a glance.

Password function

Settings can be locked using a password to prevent them from being changed unexpectedly.

Preset mode

This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.)
Preset mode can save your trouble and improve workability.

Adjustment mode

Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-889.

 * Adjust the tip temperature to match the set temperature in case that there is a difference between those temperatures due to tip shape, heater replacement, or other factors.
Photo: Measuring the tip temperature with a tip thermometer HAKKO FG-100

1.Space-saving design

The reduced foot print is smaller than 2 of FX-888D and its iron holder.
Efficient setup is available even on a smaller workbench.

1.Space-saving design

2.Power-saving design

Independent switches cut the power for each iron when not in use.
Power-saving design minimizes standby electricity.

3.Superior operability

Four buttons were symmetrically placed at both sides on the front panel. The two buttons on each side allow simple and intuitive operation.
A color band can be attached to the handle, and this makes it possible to see at a glance which side it is connected to.
(2 pieces of a color band are included as the standard accessories.)

3.Superior operability

4.Rich functions of the iron holder

Convenient pockets to stock soldering tips
Three different ways for tip cleaning with provided cleaning tools
Simple and easy cleaning of iron holder inside by removing holder base

4.Rich functions of iron holder





Model No.FX889-09
Power consumption135W
Temperature range50 to 480ºC
Temperature stability±1ºC at idle temperature (When set to 200 to 480ºC)

Station
Output voltageAC 26V
Dimensions157(W)×121(H)×149(D)mm
Weight2.1kg

Soldering Iron
Power consumption65W (26V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Standard tipShape-B (No.T18-B)
Cord length1.2m
Total length217mm (with B tip)
Weight46g (with B tip)

* Total length and weight (w/o cord)

Packing List

  1. Station
  2. Handpiece (FX-8801)
  3. Iron holder (with cleaning sponge, cleaning wire, rubber plate)
  4. Color band (qty 2)
  5. Power cord
  6. Instruction manual

T18 Series for FX-8801 M type Soldering Iron

|| Shape B

Shape-B 0.5 x 14.5 mm
Shape-BL 0.2 x 22.5 mm
Shape-S4 0.125 x 14.5 mm For narrow-pitch soldering
Shape-SB 0.2 x 13.2 mm For narrow-pitch soldering

|| Shape C

Shape-0.5C 0.5 x 13.5 mm
Shape-0.8C 0.8 x 15.5 mm
Shape-1C 1 x 13.5 mm
Shape-2C 2 x 14.5 mm
Shape-3C 3 x 14.5 mm
Shape-4C 4 x 14.5 mm
Shape-5C 5 x 14.5 mm
Shape-1C 1 x 13.5 mm Tinned cut surface only
Shape-1.5C 1.5 x 13.5 mm Tinned cut surface only
Shape-2C 2 x 14.5 mm Tinned cut surface only
Shape-3C 3 x 14.5 mm Tinned cut surface only
Shape-4C 4 x 14.5 mm Tinned cut surface only
Shape-2.5CS 2.5 x 10 mm Tinned cut surface only
Shape-S6 1.3 x 1.7 x 16.5 mm
Shape-S7 3.2 x 1.6 x 14.5 mm

|| Shape D

Shape-0.8D 0.8 x 14.5 mm
Shape-1.2D 1.2 x 14.5 mm
Shape-1.6D 1.6 x 14.5 mm
Shape-2.4D 2.4 x 14.5 mm
Shape-3.2D 3.2 x 14.5 mm
Shape-1.2DL 1.2 x 22.5 mm
Shape-2DL 2 x 22.5 mm
Shape-3.2DL 3.2 x 22.5 mm
Shape-S3 5.2 x 18 mm
Shape-S9 1.2 x 15.5 mm For narrow-pitch soldering

|| Shape I

Shape-I 0.2 x 14.5 mm
Shape-IS 0.2 x 11 mm

|| Shape J

Shape-0.2BR 0.2 x 4 x 10.5 mm

|| Shape K

Shape-K 5 x 14 mm 45°
Shape-3.5K 3.5 x 15 mm x 45°

========================

T19 Series for FX-8805 L type Soldering Iron

|| Shape B

Shape-B 0.5 x 18.5 mm
Shape-2B 1 x 18.5 mm

|| Shape C

Shape-3C 4.4 x 18.5 mm x 45°
Shape-4C 6 x 18.5 mm x 45°
Shape-6.5C 9.2 x 15.5 mm x 45°

|| Shape D

Shape-2.4D 2.4 x 18.5 mm
Shape-3.2D 3.2 x 18.5 mm
Shape-5D 5 x 18 mm
Shape-6.5D 6.5 x 18 mm

|| Shape I

Shape-I 0.2 x 17 mm

>> Click here for Replacement Parts and Option.
