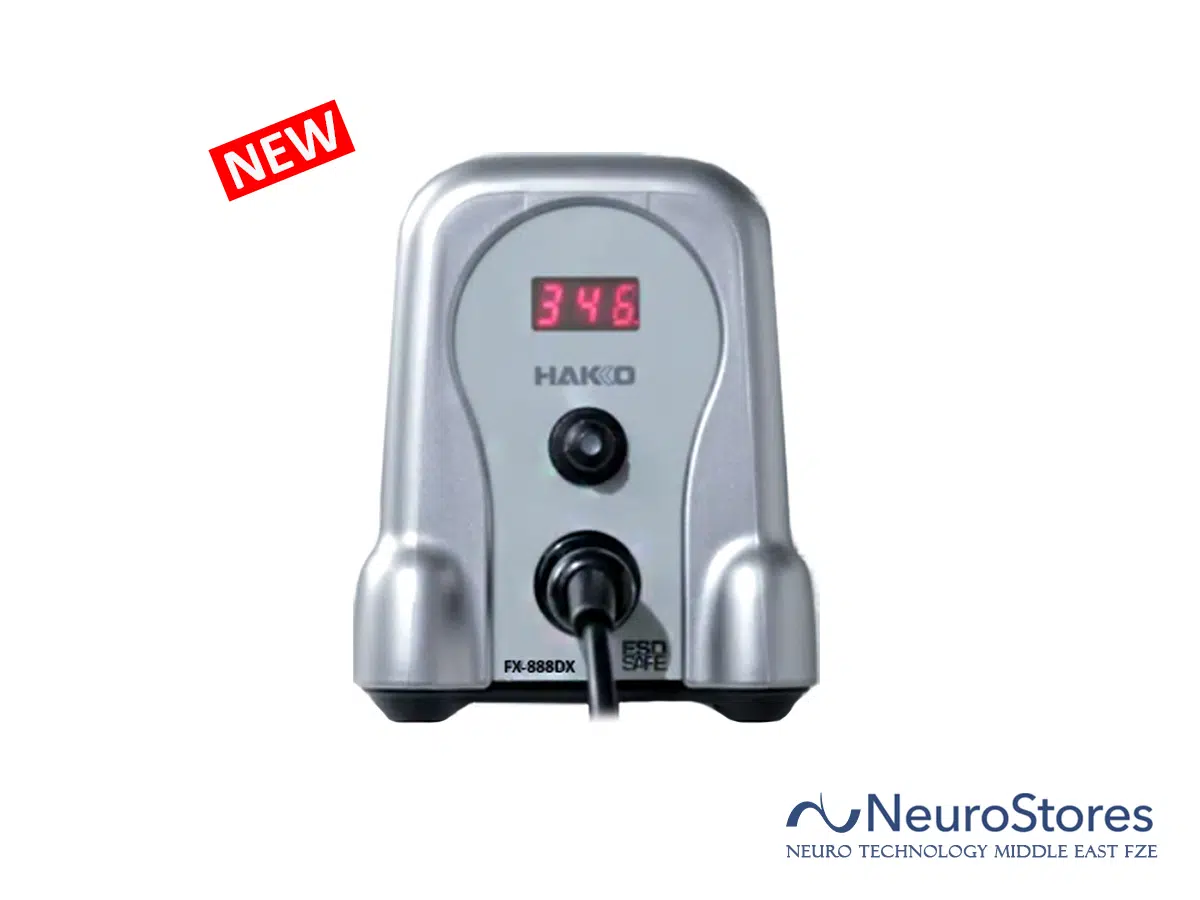

Hakko FX-888DX: A newly adopted rotary encoder offers ideal operability
- A newly adopted rotary encoder offers ideal operability
- Color variation
- 95W Soldering iron available (Option)
- Turn to “Select” and push to “Determine”
Features
Temperature can be changed only by turning the knob to right or left.
Transit to adjust mode by pressing and holding the knobTip temperature is corrected by entering the actual measured tip temperature.
“Titanium silver” and “Sunflower yellow” have been added as new colors for FX-888DX.
95W soldering iron can be connected for heavy-loaded soldering.
NEW FX-8806
| Model No. | FX888DX-44BY |
|---|---|
| Power consumption | 100W |
| Temperature range | 50 to 480ºC |
| Temperature stability | ±1ºC at idle temperature (When set to 200 to 480ºC) |
| Station | |
|---|---|
| Output voltage | AC 26V |
| Dimensions | 100(W)×120(H)×125(D)mm |
| Weight | 1.2kg |
| Soldering Iron | |
|---|---|
| Power consumption | 65W (26V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Ceramic heater |
| Standard tip | Shape-B (No.T18-B) |
| Cord length | 1.2m |
| Total length | 217mm (with B tip) |
| Weight | 46g (with B tip) |
* Total length and weight are measured without a cord.
- Soldering station FX-888DX (Color Variation: Blue ＆ Yellow, Titanium silver, Sunflower yellow)
- Soldering iron (FX-8801 with soldering tip type B)
- Iron holder (FH800-05SV, with a cleaning sponge and wire)
- Instruction Manual
T18 Series for FX-8801 M type Soldering Iron
|| Shape B
Shape-B 0.5 x 14.5 mm
Shape-BL 0.2 x 22.5 mm
Shape-S4 0.125 x 14.5 mm For narrow-pitch soldering
Shape-SB 0.2 x 13.2 mm For narrow-pitch soldering
|| Shape C
Shape-0.5C 0.5 x 13.5 mm
Shape-0.8C 0.8 x 15.5 mm
Shape-1C 1 x 13.5 mm
Shape-2C 2 x 14.5 mm
Shape-3C 3 x 14.5 mm
Shape-4C 4 x 14.5 mm
Shape-5C 5 x 14.5 mm
Shape-1C 1 x 13.5 mm Tinned cut surface only
Shape-1.5C 1.5 x 13.5 mm Tinned cut surface only
Shape-2C 2 x 14.5 mm Tinned cut surface only
Shape-3C 3 x 14.5 mm Tinned cut surface only
Shape-4C 4 x 14.5 mm Tinned cut surface only
Shape-2.5CS 2.5 x 10 mm Tinned cut surface only
Shape-S6 1.3 x 1.7 x 16.5 mm
Shape-S7 3.2 x 1.6 x 14.5 mm
|| Shape D
Shape-0.8D 0.8 x 14.5 mm
Shape-1.2D 1.2 x 14.5 mm
Shape-1.6D 1.6 x 14.5 mm
Shape-2.4D 2.4 x 14.5 mm
Shape-3.2D 3.2 x 14.5 mm
Shape-1.2DL 1.2 x 22.5 mm
Shape-2DL 2 x 22.5 mm
Shape-3.2DL 3.2 x 22.5 mm
Shape-S3 5.2 x 18 mm
Shape-S9 1.2 x 15.5 mm For narrow-pitch soldering
|| Shape I
Shape-I 0.2 x 14.5 mm
Shape-IS 0.2 x 11 mm
|| Shape J
|| Shape K
Shape-K 5 x 14 mm 45°
Shape-3.5K 3.5 x 15 mm x 45°
========================
T19 Series for FX-8805 L type Soldering Iron
|| Shape B
Shape-B 0.5 x 18.5 mm
Shape-2B 1 x 18.5 mm
|| Shape C
Shape-3C 4.4 x 18.5 mm x 45°
Shape-4C 6 x 18.5 mm x 45°
Shape-6.5C 9.2 x 15.5 mm x 45°
|| Shape D
Shape-2.4D 2.4 x 18.5 mm
Shape-3.2D 3.2 x 18.5 mm
Shape-5D 5 x 18 mm
Shape-6.5D 6.5 x 18 mm
|| Shape I
========================
T32 Series for FX-8806
|| Shape B
|| Shape BC
Shape-1BC 1 x 2 x 13.5 mm x 60°
Shape-2BC 2.1 x 3 x 14.5 mm x 45°
Shape-3BC 3.2 x 4.5 x 14.5 mm x 45°
Shape-4BC 4.2 x 5.9 x 14.5 mm x 45°
Shape-1BC 1 x 2 x 13.5 mm x 60° Tinned surface only
Shape-2BC 2.1 x 3 x 14.5 mm x 45° Tinned surface only
Shape-3BC 3.2 x 4.5 x 14.5 mm x 45° Tinned surface only
Shape-4BC 4.2 x 5.9 x 14.5 mm x 45° Tinned surface only
Shape-3BC 1.5 x 13.5 mm x 60° 60-degree cut
|| Shape BCM
Shape-3BCT 3.6 x 2.5 x 6.8 x 5 x 4.5 mm x 60° 60-Degree cut with Indent
|| Shape C
Shape-1C 1 x 1.9 x 13.5 mm 60°
|| Shape D
Shape-0.8D 0.8 x 14.5 mm
Shape-1.2D 1.2 x 14.5 mm
Shape-1.6D 1.6 x 14.5 mm
Shape-2.4D 2.4 x 14.5 mm
Shape-3.2D 3.2 x 14.5 mm
Shape-5.2D 5.2 x 14.5 mm
|| Shape I
Shape-I 0.2 x 14.5 mm
Shape-ILS 0.1 x 13.5 mm
|| Shape J
Shape-0.2J 0.2 x 4 x 10.5 mm x 30°
|| Shape K
Shape-K 5 x 13.5 mm 45°
Shape-KF 4.7 x 14 mm x 45°
Shape-KU 3 x 13.5 mm x 45°
