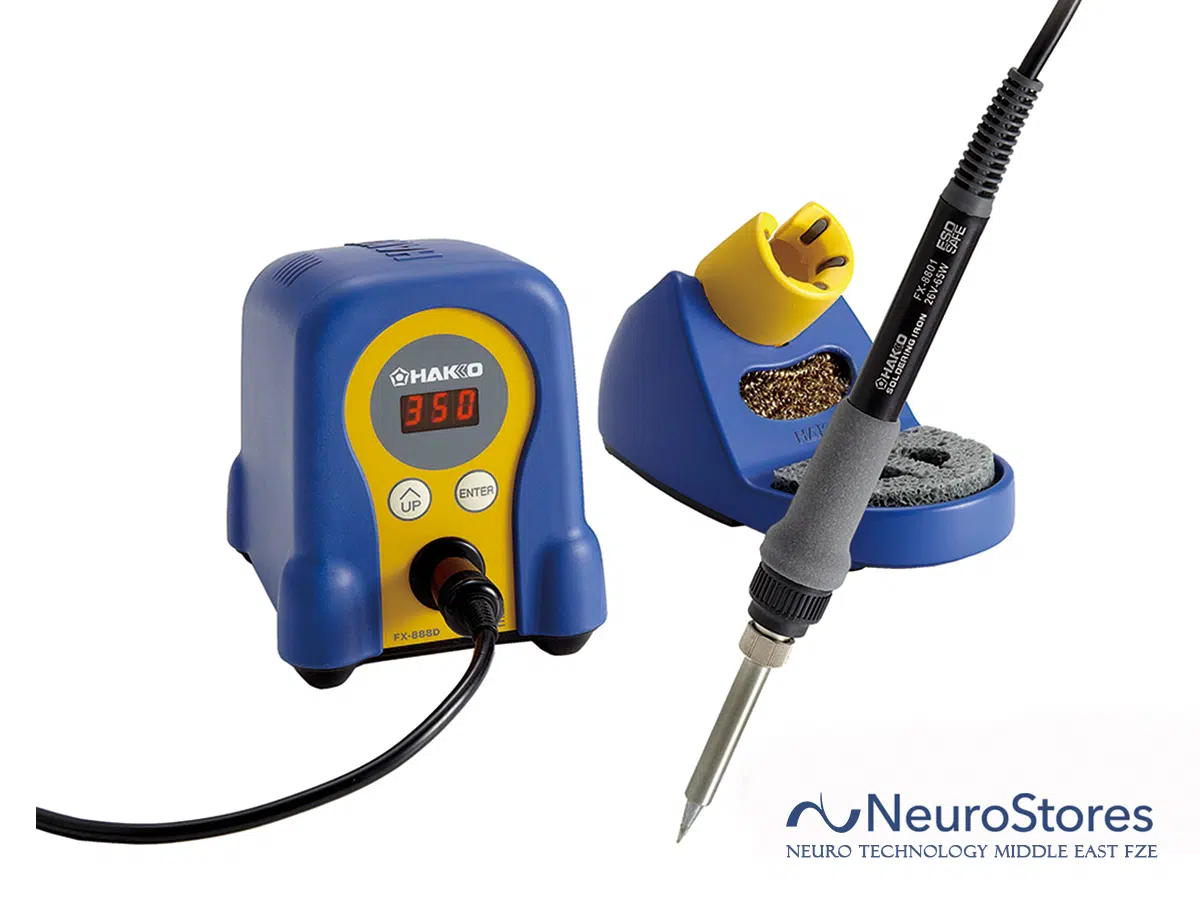

Hakko FX-888D: Digital model in an Analog-model price bracket
- Digital model in an analog-model price bracket
- Features adjustment mode, preset mode, and password function
- Separable tip/heater design provides excellent value for money
- Selectable soldering iron for N2 system as usage at your option
Features
Heater output has been increased by 30% compared to that of the conventional models HAKKO 936/937.
Also FX-888D delivers excellent thermal recovery by using T18 series tips for their terrific heat conductivity. This allows soldering at a lower set temperature and reducing the thermal impact on components as well as tip oxidation that can shorten tip life.
Small footprint
Compact station body requires a space of only 100 (W) x 120 (D) mm. What’s more, points that come into contact with the floor are positioned as close to the outer edge of the body as possible to improve stability and make the station difficult to fall over.
Simple and easy operation
With only two operation buttons of UP and ENTER in the center, operation is simple and easy. Even if you’re not familiar with operation of machines, you can operate it without difficulty.
Iron holder with full of functions
An iron holder of the same color of a soldering station comes as a set. The highly functional iron holder not only improves ease of use, but also brings a sense of visual consistency to the work environment.
Digital display
The FX-888D’s digital display makes it easy to check the set temperature at a glance.
Password function
Settings can be locked using a password to prevent them from being changed unexpectedly. Of course, it is possible to restrict all setting changes or prevent users from switching to particular modes. It allows you to choose a style of usage best suited for your worksite.
Preset mode
This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.) Preset mode can save your trouble and improve workability.
Adjustment mode
Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-888D.
*Adjust the tip temperature to match the set temperature in case that there is a difference between those temperatures due to tip shape, heater replacement, or other factors.
| Model No. | FX888D-07BY |
|---|---|
| Power consumption | 70W |
| Temperature range | 50 to 480ºC |
| Temperature stability | ±1ºC at idle temperature (When set to 200 to 480ºC) |
| Station | |
|---|---|
| Output voltage | AC 26V |
| Dimensions | 100(W)×120(H)×120(D)mm |
| Weight | 1.2kg |
| Soldering Iron | |
|---|---|
| Power consumption | 65W (26V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Ceramic heater |
| Standard tip | Shape-B (No.T18-B) |
| Cord length | 1.2m |
| Total length | 217mm (with B tip) |
| Weight | 46g (with B tip) |
* Total length and weight (w/o cord)
- Soldering station (FX-888D)
- Soldering iron (FX-8801 with soldering tip type B)
- Iron holder (with cleaning wire, cleaning sponge)
- Instruction Manual
T18 Series for FX-8801 M type Soldering Iron
|| Shape B
Shape-B 0.5 x 14.5 mm
Shape-BL 0.2 x 22.5 mm
Shape-S4 0.125 x 14.5 mm For narrow-pitch soldering
Shape-SB 0.2 x 13.2 mm For narrow-pitch soldering
|| Shape C
Shape-0.5C 0.5 x 13.5 mm
Shape-0.8C 0.8 x 15.5 mm
Shape-1C 1 x 13.5 mm
Shape-2C 2 x 14.5 mm
Shape-3C 3 x 14.5 mm
Shape-4C 4 x 14.5 mm
Shape-5C 5 x 14.5 mm
Shape-1C 1 x 13.5 mm Tinned cut surface only
Shape-1.5C 1.5 x 13.5 mm Tinned cut surface only
Shape-2C 2 x 14.5 mm Tinned cut surface only
Shape-3C 3 x 14.5 mm Tinned cut surface only
Shape-4C 4 x 14.5 mm Tinned cut surface only
Shape-2.5CS 2.5 x 10 mm Tinned cut surface only
Shape-S6 1.3 x 1.7 x 16.5 mm
Shape-S7 3.2 x 1.6 x 14.5 mm
|| Shape D
Shape-0.8D 0.8 x 14.5 mm
Shape-1.2D 1.2 x 14.5 mm
Shape-1.6D 1.6 x 14.5 mm
Shape-2.4D 2.4 x 14.5 mm
Shape-3.2D 3.2 x 14.5 mm
Shape-1.2DL 1.2 x 22.5 mm
Shape-2DL 2 x 22.5 mm
Shape-3.2DL 3.2 x 22.5 mm
Shape-S3 5.2 x 18 mm
Shape-S9 1.2 x 15.5 mm For narrow-pitch soldering
|| Shape I
Shape-I 0.2 x 14.5 mm
Shape-IS 0.2 x 11 mm
|| Shape J
|| Shape K
Shape-K 5 x 14 mm 45°
Shape-3.5K 3.5 x 15 mm x 45°
========================
T19 Series for FX-8805 L type Soldering Iron
|| Shape B
Shape-B 0.5 x 18.5 mm
Shape-2B 1 x 18.5 mm
|| Shape C
Shape-3C 4.4 x 18.5 mm x 45°
Shape-4C 6 x 18.5 mm x 45°
Shape-6.5C 9.2 x 15.5 mm x 45°
|| Shape D
Shape-2.4D 2.4 x 18.5 mm
Shape-3.2D 3.2 x 18.5 mm
Shape-5D 5 x 18 mm
Shape-6.5D 6.5 x 18 mm
|| Shape I
