Hakko FX-8803 Soldering Gun, 65W (26V)

HAKKO CORPORATION

LEAD FREE ESD SAFE

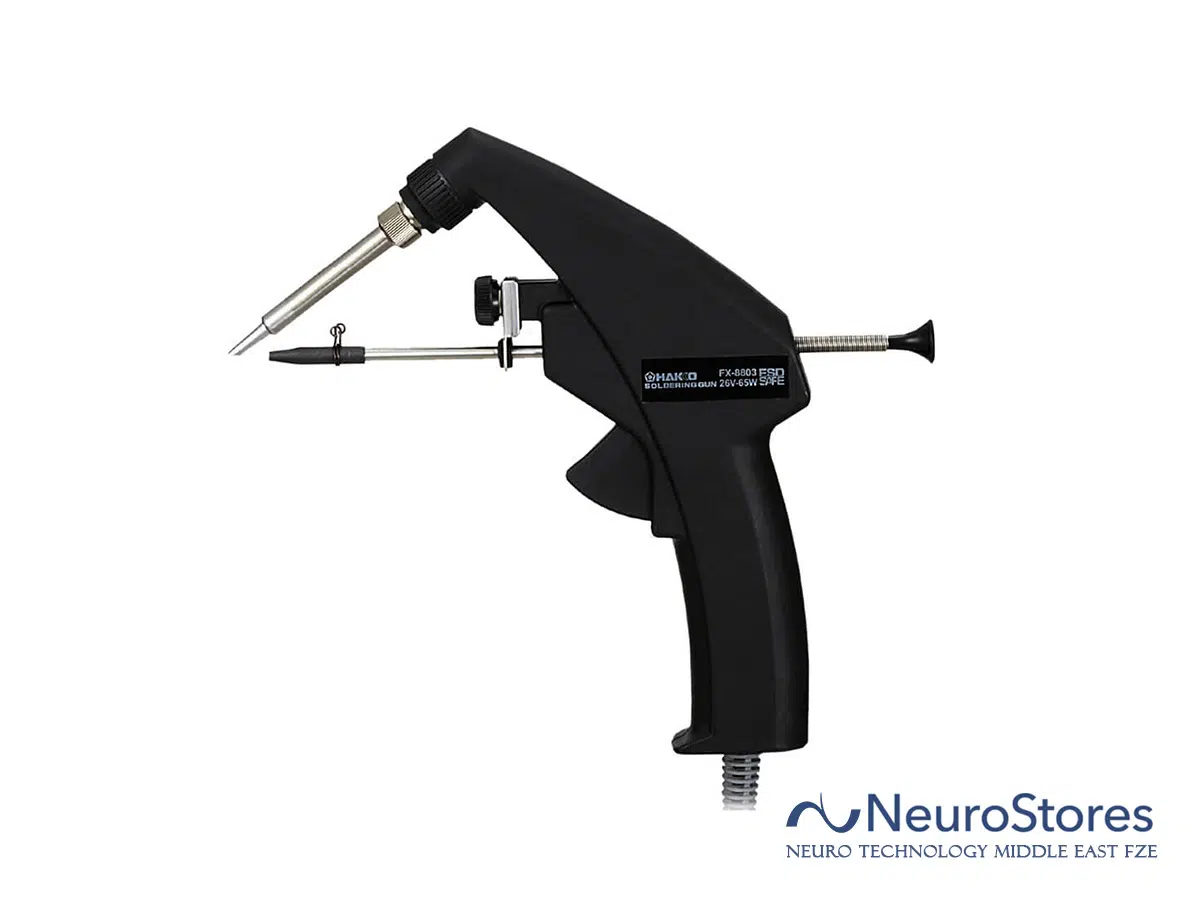

Hakko FX-8803 Soldering gun with manual solder feed

  • One-hand manual-solder-feed iron designed exclusively for HAKKO FX-888D, FX-889, FR-701 and FR-702
  • Manual system allows solder to be fed only when needed

Features

  • Solder and feed with one hand
    ·Can be used with your existing HAKKO FX-888DHAKKO FX-889HAKKO FR-701 or HAKKO FR-702 soldering station.
    ·Feed a set amount of solder with one hand.
    ·Perform two actions at the same time with one hand.
  • Manual feed system is perfect for cellular manufacturing
    ·Manual system ensures solder can only be fed when working
    ·Soldering work can be conducted at the pace of the operator
  • Extensive lineup of tips
  • Anti-static specifications

*Requires separate purchase of iron holder C1437.

Model No.FX8803-01
Power consumption65W (26V)
Temperature range50 to 480ºC
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Standard tipShape-3CF (No.T18-CF3)
Guide nozzleΦ1.0mm (Option except Φ1.0mm guide nozzle)
Usable solder diameterΦ0.6, 0.8, 1.0, 1.2, 1.6mm
Cord length1.1m
Dimensions170(W)×180(H)×23(D)mm (with 3C tip)
Weight207g (with 3C tip)

* Weight (w/o cord)
* The setting temperature range of FX-888 is from 200 to 480ºC.

  1. Soldering gun
  2. Instruction manual
  3. Standard tip: T18-CF3 (Shape 3C, cut surface only)

HAKKO CORPORATION

LEAD FREE ESD SAFE

Hakko FX-8803 Soldering gun with manual solder feed

  • One-hand manual-solder-feed iron designed exclusively for HAKKO FX-888D, FX-889, FR-701 and FR-702
  • Manual system allows solder to be fed only when needed

Features

  • Solder and feed with one hand
    ·Can be used with your existing HAKKO FX-888DHAKKO FX-889HAKKO FR-701 or HAKKO FR-702 soldering station.
    ·Feed a set amount of solder with one hand.
    ·Perform two actions at the same time with one hand.
  • Manual feed system is perfect for cellular manufacturing
    ·Manual system ensures solder can only be fed when working
    ·Soldering work can be conducted at the pace of the operator
  • Extensive lineup of tips
  • Anti-static specifications

*Requires separate purchase of iron holder C1437.

Model No.FX8803-01
Power consumption65W (26V)
Temperature range50 to 480ºC
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Standard tipShape-3CF (No.T18-CF3)
Guide nozzleΦ1.0mm (Option except Φ1.0mm guide nozzle)
Usable solder diameterΦ0.6, 0.8, 1.0, 1.2, 1.6mm
Cord length1.1m
Dimensions170(W)×180(H)×23(D)mm (with 3C tip)
Weight207g (with 3C tip)

* Weight (w/o cord)
* The setting temperature range of FX-888 is from 200 to 480ºC.

  1. Soldering gun
  2. Instruction manual
  3. Standard tip: T18-CF3 (Shape 3C, cut surface only)
