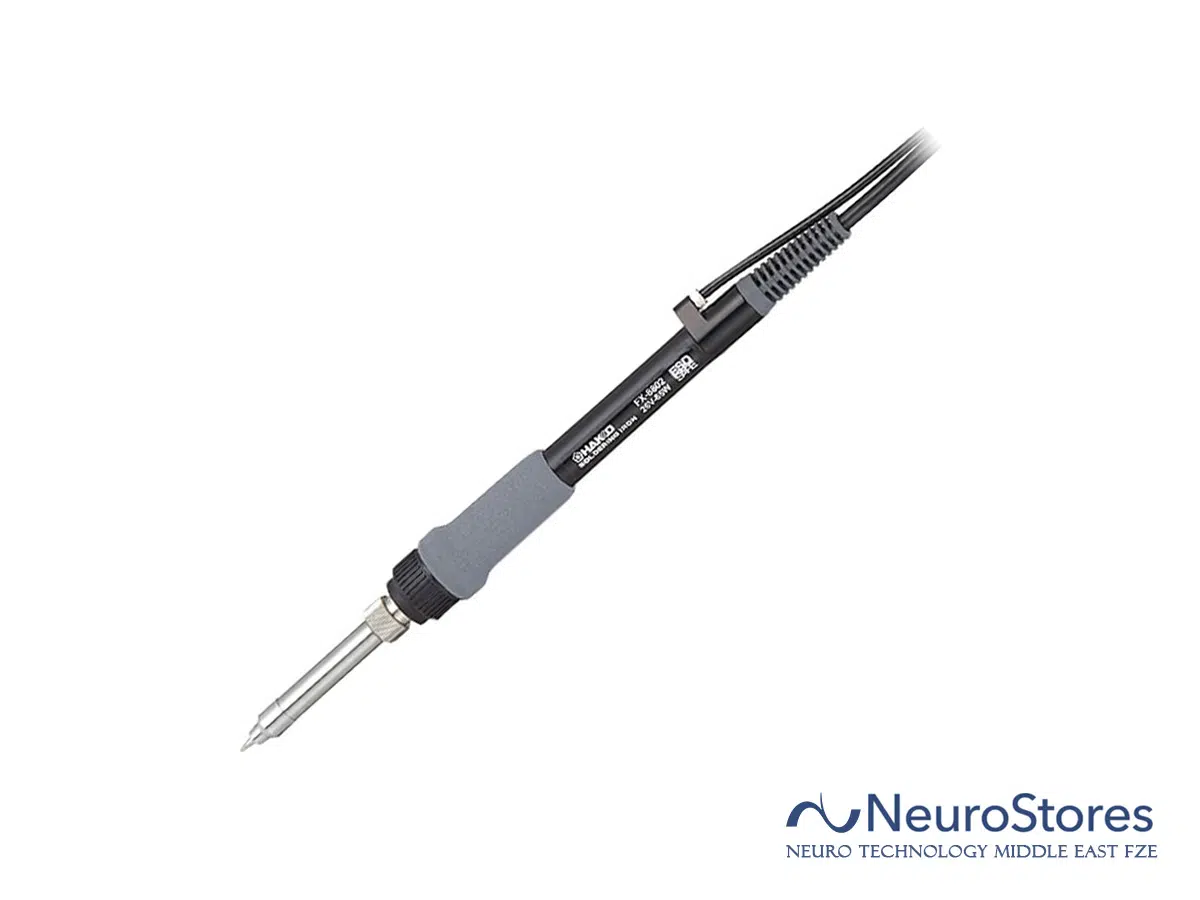

Hakko FX-8802 N2 gas and preheating effect have achieved significant improvement in soldering work!
Features
>>N2 soldering iron
The N2 gas runs into the nozzle assembly and covers over the soldering tip. It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
>>Preheating effect
>>Improves the solder wettability and spreadability as well.
>>Prevents the solder oxidation
>>Can be used with your existing, HAKKO FX-888D, HAKKO FX-889, HAKKO FR-701 or HAKKO FR-702 soldering station.
Model No. | FX8802-01 |
---|---|
Power consumption | 65W (26V) |
Temperature range | 50 to 480ºC |
Tip to ground resistance | <2Ω |
Tip to ground potential | <2mV |
Heating element | Ceramic heater |
Standard tip | Shape-B (No.T18-B) |
Cord length | 1.2m |
Total length | 190mm (with B tip) |
Weight | 59g (with B tip and nozzle assembly A) |
* Total length and weight (w/o cord, tube)
* The setting temperature range of FX-888 is from 200 to 480ºC.
* Do not set the temperature over 450ºC.
- N2 soldering iron
- Soldering tip (Shape B)
- Nozzle assembly A
- Shield plate
- Instruction manual
