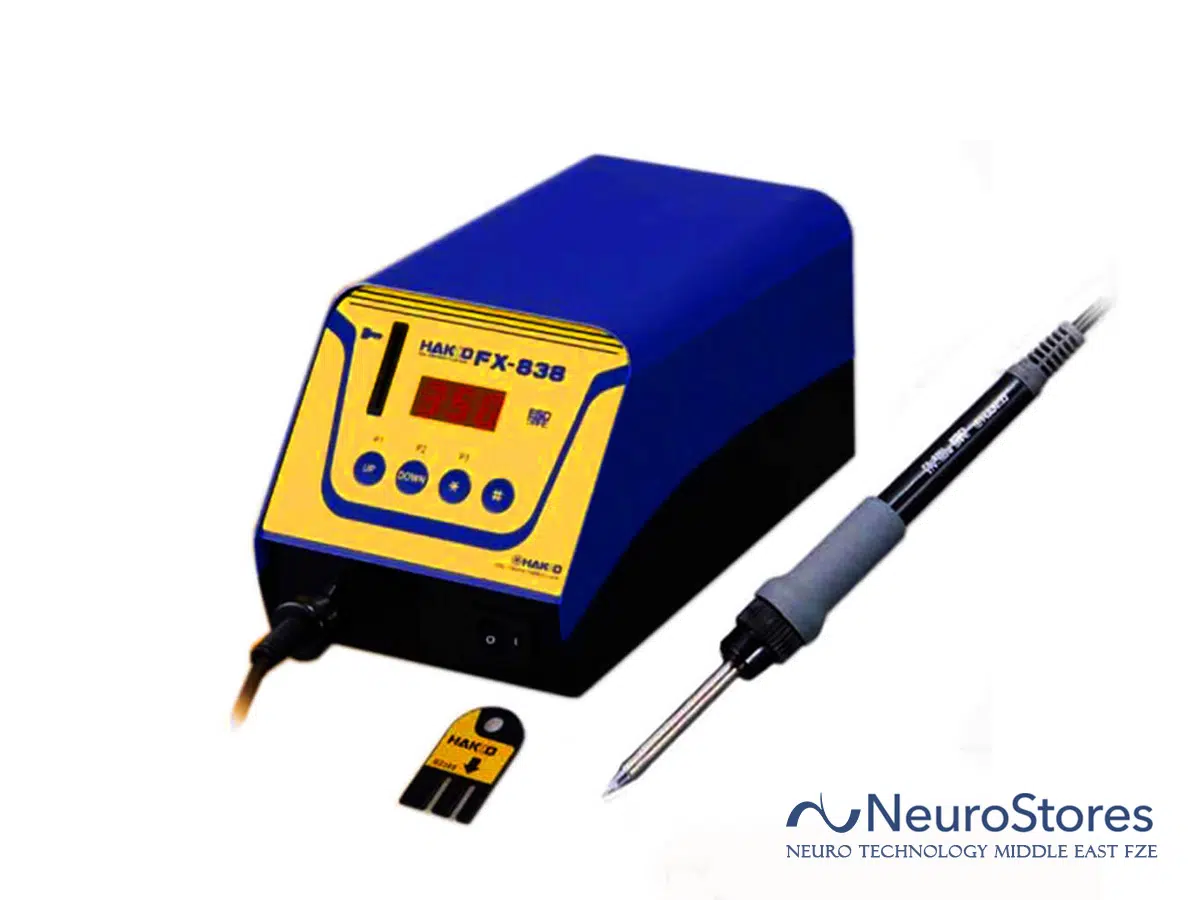

Hakko FX-838 Soldering Station, 158W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREEESD SAFE

Hakko FX-838 High Power 150W Soldering Station enjoys the various applications from large to fine components.

  • High powered 150W soldering iron with high heat capacity
  • Best suited for soldering of power-supply boards, heat sinks and shield cases
  • Applicable also for multilayer boards with micro components
  • Selectable soldering iron for N2 system as usage at your option

Features

  • It allows soldering at lower set temperatures.
  • It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.

It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but for microsoldering.

  • It enables soldering power-supply boards easily because high power 150W hand piece can provide great thermal recovery.
  • This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.

How to replacement tips for HAKKO FX-838

  • Cartridge style Integrated heater makes thermal conductivity improve.
  • Available 20 different shape as replacement, some of which are suitable for fine components.
  • It allows you to input three frequently-used temperatures in advance and recall them with one push of a button.
  • It saves the troublesome setting condition, tailored to the tip-shape, component and work.

150W hand piece provides great thermal recovery, which allows soldering at lower set temperatures to!!minimize concern about the influence of heat on components and tip life.Thermal recovery characteristics comparison graph

The high power shortens the working time.Comparison graph with HAKKO FX-951

  • Test Condition

Test method                  Solder at 5 points and measure the time until temperature of the workipiece reaches 250 degrees.

Board used                   Bakelite board

Component                  Terminal

Tip shape                     Shape-1.6D

Temperature setting    340°C

Solder                          Lead-free solder (Sn/Ag/Cu) ø0.5

Model No.FX838-12
Power consumption158W
Temperature range200 to 500ºC
Temperature stability±5ºC at idle temperature

Station
Output voltageAC 27V
Dimensions110(W)×110(H)×205(D)mm
Weight3.2kg

Soldering Iron
Power consumption150W (27V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Cord length1.2m
Total length175mm (with 2.4D tip)
Weight31g (with 2.4D tip)

* Total length and weight (w/o cord)

  1. Soldering station (HAKKO FX-838)
  2. Soldering iron (HAKKO FX-8301)
  3. Control card
  4. Power cord
  5. Iron holder (With cleaning sponge and 599B)
  6. Connecting cable, Heat resistant pad
  7. Instruction Manual

Click the Icon to view the types of T20 Series Tips:T20-BCM2
