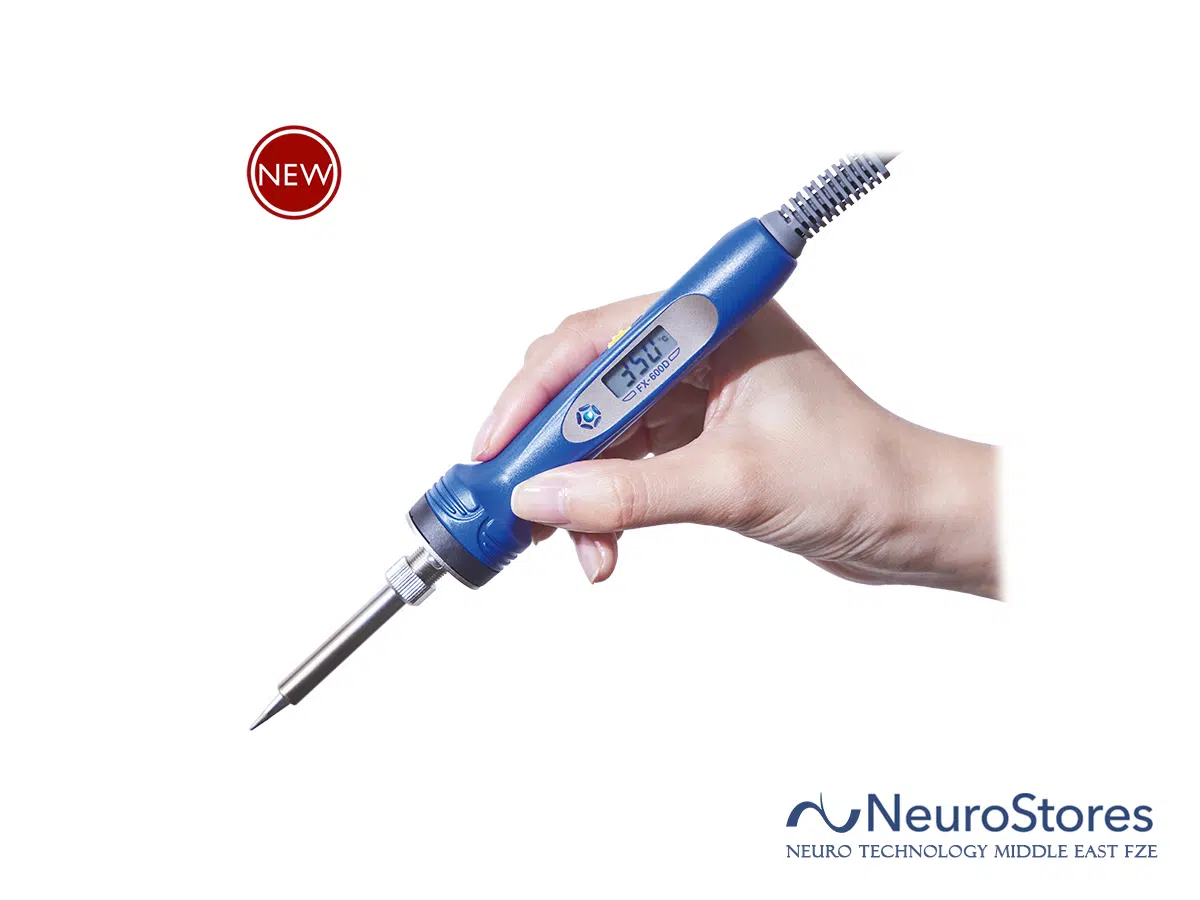

Hakko FX-600D Soldering Iron with Digital Display

HAKKO CORPORATION

LEAD-FREEEU RoHS

Hakko FX-600D: The performance and features of the soldering station are packed in a small and easy-to-handle iron.

  • The LCD allows you to recognize the temperature at a glance.
  • Easy temperature setting by the wheel. (Adjustable temperature range 200 to 540 ℃ )
  • Easy-to-handling.
  • A wider selection of soldering tips from 44 types for your application.
  • Sleep Function

Features

LCD to indicate the set temperature or tip temperature clearly.
When it comes to the set temperature, the LED blinks to notify a user of the optimal timing for use.

The LCD shows the temperatureTemperature increases when the lamp is on and decreases when it is off.

Temperature setting is available in 1℃ increments easily by the wheel.

Temperature setting

A wide selection of soldering tips from 44 types for your application.

  • The replacement of the enclosure pipe and nut is required to use the T19 series tip.

The sleep function will activate when the specified time passes (available for time setting 1 – 29 min.) after the iron is set on the iron holder.
The tip temperature will drop to set sleep temperature (200 – 300℃) during sleep function activated.
This function reduces tip oxidation and keeps the tip in good condition for a long time.

Sleep functionThe iron holder is sold separately.

A safety cap that protects the soldering iron (and tip) while carrying it around is provided as a standard.
It is suitable when stored in toolboxes.

  • Put the safety cap on after the tip temperature has cooled down.
  • Safety cap

Model No.FX600D-XX
Power consumption42 W (220 V),
46 W (230 V),
50 W (240 V)
Temperature range200 to 540ºC
Temperature stability±1ºC (At idle temperature)
Tip to ground resistance<2 Ω
Tip to ground potential<2 mV
Heating elementCeramic heater
Total length233 mm (with T18-B tip)
Weight65 g (with T18-B tip)

Total length and weight are measured without cord.

  • FX-600D
  • CAP
  • Instruction manual

FX-600D

In order to use the T19 series soldering tips with FX-600D, it is necessary to replace the enclosure pipe and nut.
Please purchase an enclosure pipe with nut (Part No.B3720) separately.

保護パイプ 袋ナット付き(品番 B3720)

T18 Series

|| Shape B

Shape-B 0.5 x 14.5 mm
Shape-BL 0.2 x 22.5 mm
Shape-S4 0.125 x 14.5 mm For narrow-pitch soldering
Shape-SB 0.2 x 13.2 mm For narrow-pitch soldering

|| Shape C

Shape-0.5C 0.5 x 13.5 mm
Shape-0.8C 0.8 x 15.5 mm
Shape-1C 1 x 13.5 mm
Shape-2C 2 x 14.5 mm
Shape-3C 3 x 14.5 mm
Shape-4C 4 x 14.5 mm
Shape-5C 5 x 14.5 mm
Shape-1C 1 x 13.5 mm Tinned cut surface only
Shape-1.5C 1.5 x 13.5 mm Tinned cut surface only
Shape-2C 2 x 14.5 mm Tinned cut surface only
Shape-3C 3 x 14.5 mm Tinned cut surface only
Shape-4C 4 x 14.5 mm Tinned cut surface only
Shape-2.5CS 2.5 x 10 mm Tinned cut surface only
Shape-S6 1.3 x 1.7 x 16.5 mm
Shape-S7 3.2 x 1.6 x 14.5 mm

|| Shape D

Shape-0.8D 0.8 x 14.5 mm
Shape-1.2D 1.2 x 14.5 mm
Shape-1.6D 1.6 x 14.5 mm
Shape-2.4D 2.4 x 14.5 mm
Shape-3.2D 3.2 x 14.5 mm
Shape-1.2DL 1.2 x 22.5 mm
Shape-2DL 2 x 22.5 mm
Shape-3.2DL 3.2 x 22.5 mm
Shape-S3 5.2 x 18 mm
Shape-S9 1.2 x 15.5 mm For narrow-pitch soldering

|| Shape I

Shape-I 0.2 x 14.5 mm
Shape-IS 0.2 x 11 mm

|| Shape J

Shape-0.2BR 0.2 x 4 x 10.5 mm

|| Shape K

Shape-K 5 x 14 mm 45°
Shape-3.5K 3.5 x 15 mm x 45°

========================

T19 Series

|| Shape B

Shape-B 0.5 x 18.5 mm
Shape-2B 1 x 18.5 mm

|| Shape C

Shape-3C 4.4 x 18.5 mm x 45°
Shape-4C 6 x 18.5 mm x 45°
Shape-6.5C 9.2 x 15.5 mm x 45°

|| Shape D

Shape-2.4D 2.4 x 18.5 mm
Shape-3.2D 3.2 x 18.5 mm
Shape-5D 5 x 18 mm
Shape-6.5D 6.5 x 18 mm

|| Shape I

Shape-I 0.2 x 17 mm

images:A1600 Heating element A1601 Heating element 220-240V

images:B1785 Nut B1785 Nut

images:B3469 Enclosure pipe B3469 Enclosure pipe

images:B3706 Fixing pipe B3706 Fixing pipe

images:B5378 Cap for FX-600D B5378 Cap for FX-600D

images:B3720 Enclosure pipe B3720 Enclosure pipe with Nut
