HAKKO CORPORATION
- Analog-type low-cost model
- Temperature can be adjusted just by turning a knob during the operation
- It becomes compatible with lead-free solder by adding an optional specially-coated stainless-steel pot

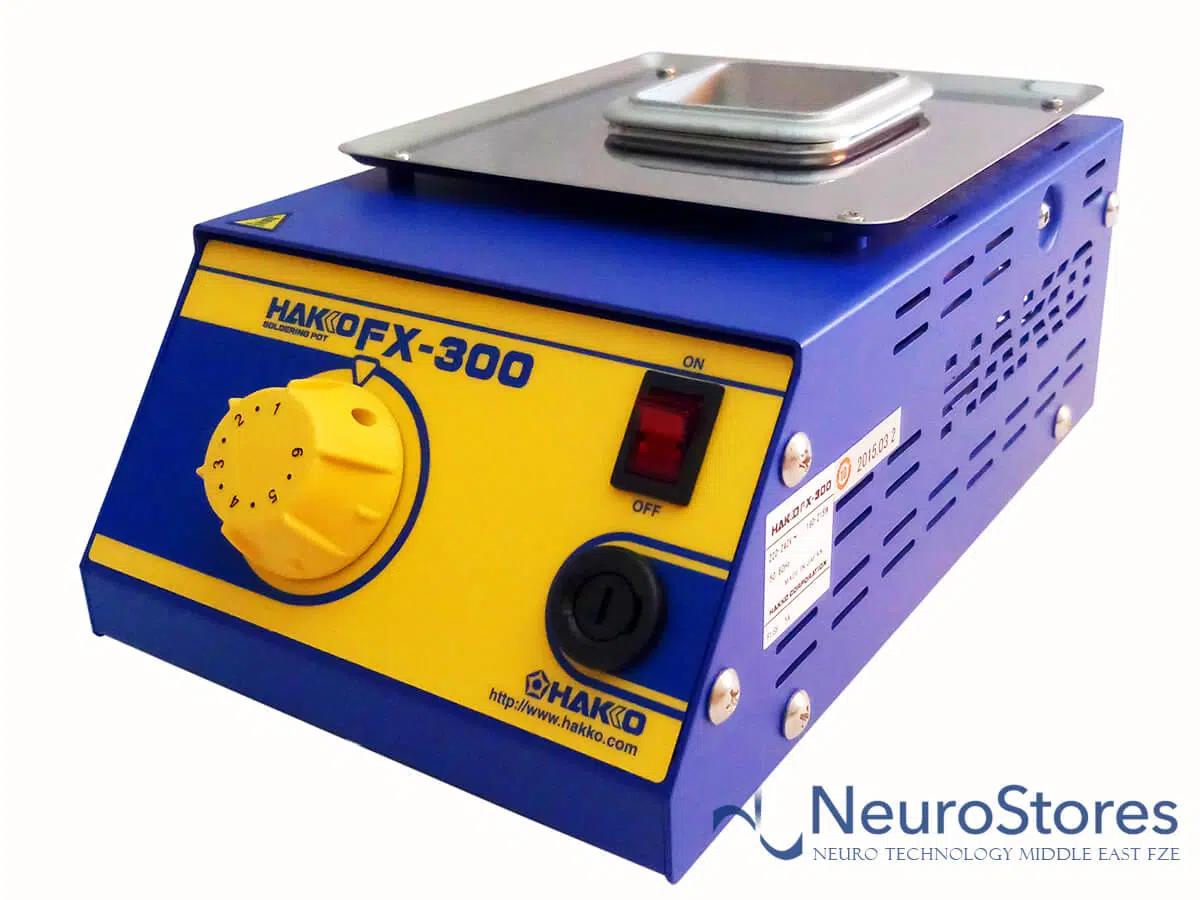

Model No. | FX-300 |
---|---|
Power consumption | 190W (220V) |
Dimensions | 143(W)×100(H)×220(D)mm |
Weight | 1.7kg |
Pot | |
---|---|
Temperature range | 50×50 square : 200 to 450ºC 75×75 square : 200 to 380ºC |
Dimensions of solder pot | 50×50 square standard type : 50(W)×43.5(H)×50(D)mm 75×75 square standard type : 75(W)×52.5(H)×75(D)mm |
Molten solder capacity | 50×50 square : 0.85kg 75×75 square : 1.2kg |
* Weight (w/o solder, cord)
* The 50×50 square solder pot is originally installed. The 75×75 square solder pot is an optional part.
