Hakko FX-1002 Conversion kit an IH (High-Frequency Induction Heating) micro-soldering iron for the T35 Series of soldering tips. Including Handpiece (with yellow sleeve assembly ), Sleeve assembly (green), Heat resistant pad, Iron holder.
- Micro soldering iron for induction heating system
- Temperature series: 350ºC and 400ºC
- Compatible with HAKKO FX-100, IH soldering station
Features
FX-1002 and T35 series tip make it much easier to solder on microchips in very fine pitch (than FX-1001 and T31).
T35 is designed to obtain not only very fine shape but also sufficient thermal capacity to delivery stable soldering quality on damage sensitive products.
With the FX-1001 soldering tip, there is a tendency to interfere with the pin on the right, but now using the FX-1002, work can be done without interference to the surrounding pins.
Connectable Station
HAKKO FX-100
(Single iron)
Unlike a conventional temperature control system, IH (Induction Heating) system provides fixed temperatures.
Within T35 series, tips shapes are exactly the same over the different temperature series.

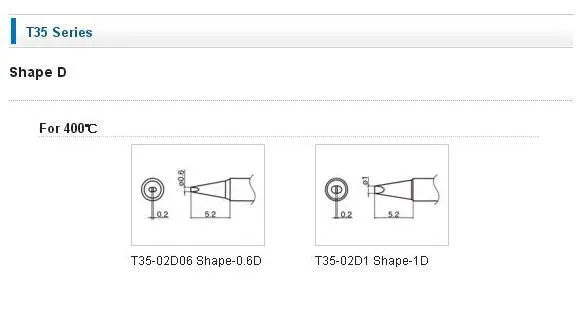

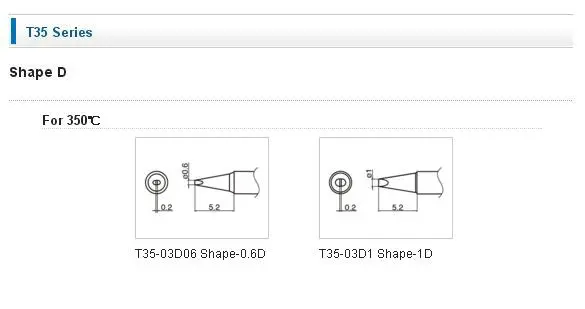

Temperature series: 350°C: T35-03 Series 400°C: T35-02 Series
Unlike resistance-based heating systems that control temperature by turning heater power on and off via a sensor, with an induction heating system the soldering tip itself produces heat and maintains a constant temperature, enabling a small soldering tip to handle high thermal capacity, high-density substrates.
| Part No. | Applicable Stations |
|---|---|
 FX1002-81 |  HAKKO FX-100IH soldering iron (Single iron) |
 FX1002-82Conversion kit |
| Model No. | FX1002-81 | FX1002-82 |
|---|---|---|
| Temperature range | T35-02 Series: 400ºC, T35-03 Series: 350ºC | |
| Tip to ground resistance | <2Ω | |
| Tip to ground potential | <2mV | |
| Heating element | IH (Induction heating) | |
| Cord length | 1.3m | |
| Total length | 166mm (with No.T35-02D1) | |
| Weight | 21g (with No.T35-02D1) | |
* Total length and weight (w/o cord)
| Part No. | Packing list |
|---|---|
| FX1002-81 | Handpiece (with yellow sleeve assembly ), Instruction manual (No photo) |

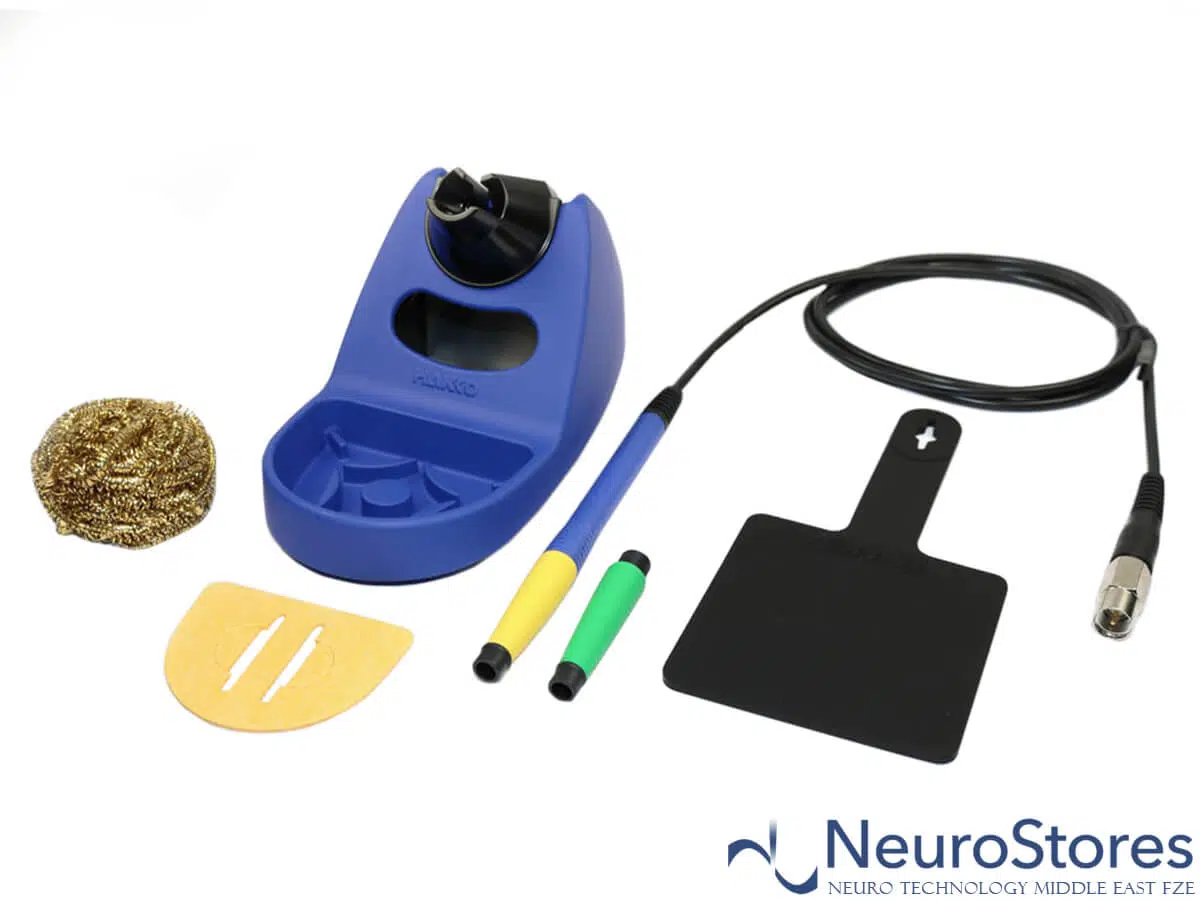

| FX1002−82 (Conversion kit) | Handpiece (with yellow sleeve assembly ), Sleeve assembly (green), Heat resistant pad, Iron holder, Instruction manual (No photo) |
A soldering tip is not included with this product. The desired tips should be purchased separately.
This soldering iron cannot be used as a stand-alone unit.
For details on the IH soldering station HAKKO FX-100, click here.
