Hakko FT-802 Thernal Wire StripperHakko FT-802 Thernal Wire Stripper

Hakko FT-802 Thermal Wire Stripper, 76W (220V)

HAKKO CORPORATION

ESD SAFE

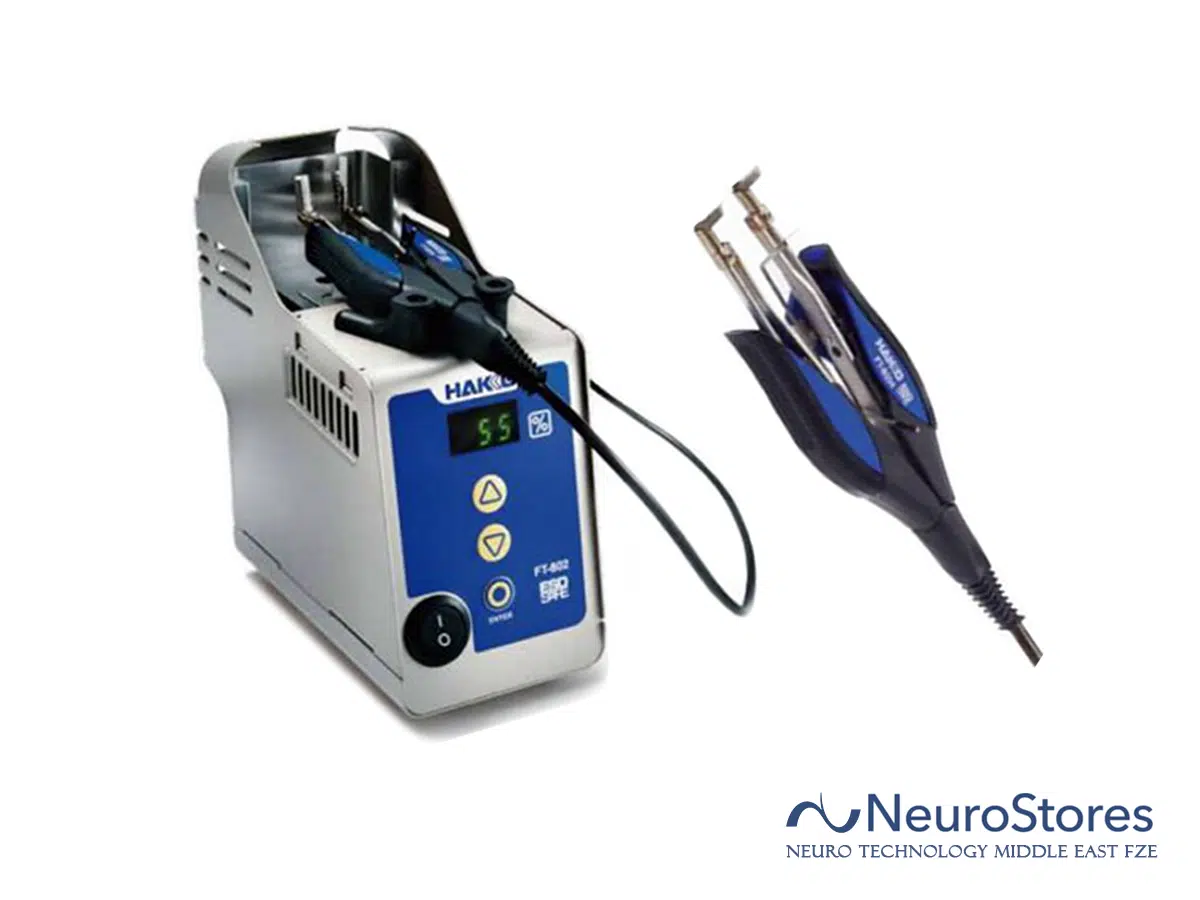

Hakko FT-802

  • Thermal wire stripper for higher quality and more preciseness
  • Even very fine AWG 38 can be stripped with standard blades

Features

Thermal wire stripper FT-802 enables higher quality and more precise insulation stripping.
The performance that can strip insulation with no nick can meet the requirement of the latest aerospace industry and the medical industry that require s very high quality.

FT-802 FT-802 can strip the insulation of AWG 38 wire with no nick.

工具Conventional wire stripper could make ragged edges of insulation or damaged strands.

The blades can be securely fixed by making the frame with tweezers structure.Due to the tweezers structure, the cutting edges are always aligned.

No need to replace a handpiece when blades get worn out.
Blades can be easily replaced by using the hex-wrench (included in the unit) and the blade removal plate.

* The blades must be cool before a replacement for safety.Blades are replaceable and a handpiece can be saved.

Status of a handpiece at glance on the display.
User-friendly design for reduction of stress during the work.FT-802◯A handpiece is correctly set in a holder.
◯Same as the output value
◯Ready to work immediately
◯Auto sleep function will activate after passing the set time.

工具◯Auto sleep function is running.
◯Save output value approximately by 50%
◯Reduce blade oxidation and load on heating elements
◯Time to activate auto sleep function can be set by the unit of 1 minute (up to 30 minutes).

  • HAKKO FT-8003 can strip the insulation off thick leads that HAKKO FT-8002 could not.HAKKO FT-8003
  • If cut with a knife blade
    It is not recommended to use a knife blade for cable stripping due to the high risk of cutting in the conductor or fraying shield that can result in ruining the cable.knife cutter
Model No.FT802-10
Power consumption76W

Station
Output voltageAC 20V
Dimensions76(W)×159(H)×161(D)mm
Weight1.6kg

Wire Stripper (FT-8004)
Power consumption72W (20V)
Cord length1.6m
Total length153mm
Weight47g

Optional Wire Stripper (FT-8003)
Power consumption46W (24V)
Cord length<2m
Tip to ground resistance<2Ω
Tip to ground potential1.3mV
Total length155mm
Weight27g

* Length and weight for handpiece (w/o cord, blade)

FT-802セット内容

  1. Station (with wire material indicator seal)
  2. Handpiece FT-8004 (with lead adjuster)
  3. Hexagon socket set screw (M2.5 x 2.5 [qty 2])
  4. Hexagon wrench (1.27 mm)
  5. Power cord
  6. Instruction manual

Blades are not included with this product. The desired blades should be purchased separately.

For No.FT-8004:G4-1601G4-1601 Wire Stripper Blade Straight

G4-1602G4-1602 Wire Stripper Blade AWG 18 to 28

G4-1603G4-1603 Wire Stripper Blade AWG 26 to 38



For No.FT-8003:G3-1601G3-1601 Knife Type Blade
