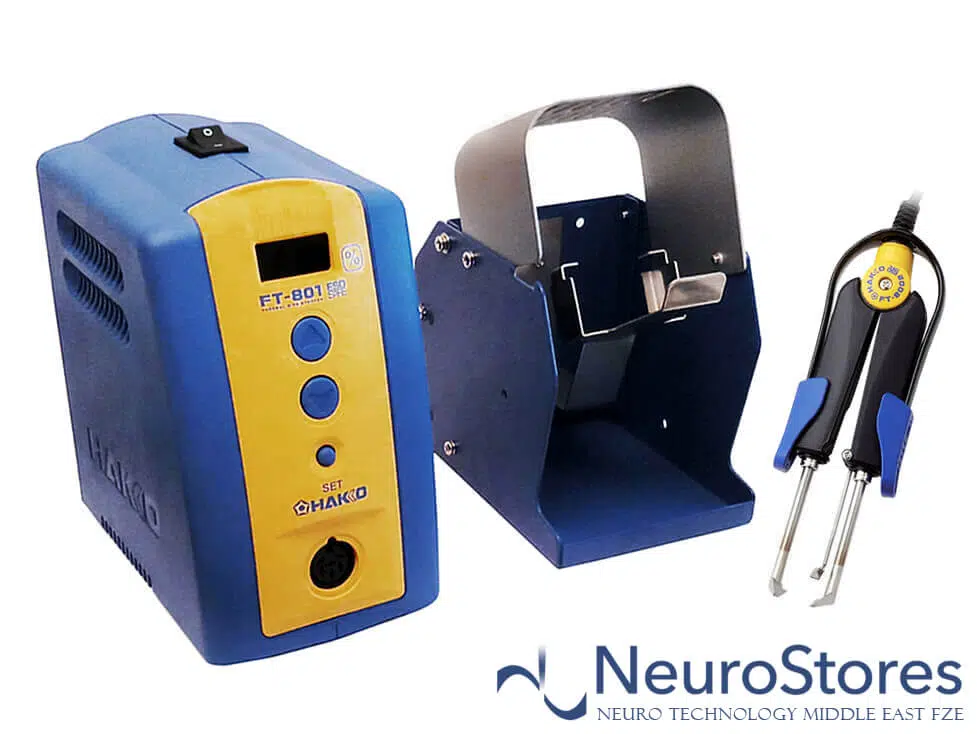

Hakko FT-801 Thermal Wire Stripper, 68W/50W (220V)

HAKKO CORPORATION

(Discontinued)

ESD SAFERoHS

Hakko FT-801 Thermal wire stripper solves common problems caused by using hand tools.

  • Doesn’t damage wire cores
  • Doesn’t cut strands
  • Handle designed for up to Ø12mm leads.
  • Cuts insulation cleanly
  • Strip superfine lead wires with ease
  • Perfect for stripping single wires
  • Thermal wire stripper that ensures clean-cut removal of wire insulation
  • High stripping performance ensures clean cut through highly heat-resistant PTFE
  • It is also a perfect solution for the insulation stripping of single wires

Features

Blade hinge extended for up to Ø12mm to strip thick cables.

feature1Strip up to Ø12mm cables

feature2Use the option blade for over Ø12mm cables.

  • With a thermal wire stripper you can remove insulation cleanly without scratching core wires.With a thermal wire stripper you can remove insulation cleanly without scratching core wires.
  • Conventional tools cannot cut all the way through, and often leave behind whiskers of insulation or scratch the wire.Conventional tools cannot cut all the way through, and often leave behind whiskers of insulation or scratch the wire.

Feature 1Feature 1There is no need to adjust your hold on the grip. The handpiece is stored horizontally for ease of use.

Feature 2Feature 2Blades can open as wide as ø12 mm for stripping thick wires.

Feature 3Feature 3Thermal stripping ensures clean removal of insulation.

Feature 4Feature 4Digital design enables output (temperature) to suit insulation material. This prevents problems such as the inability to strip wire in a single action and stops the insulation from sticking to blades due to incorrect temperature.

Handpiece holder features a safety cover for safer operation.
This guard against accidents such as burns to hands and arms and burnt wires caused by accidental contact with the handpiece holder during operation. Safety cover for handpiece holder prevents accidents

Replace hot blades simply and safely. A choice of three replacement blades covers a wide range of wire gauges, and there is no need to replace the entire handpiece every time blades wear out. HAKKO FT-801

Power setting value and parameter setting can be locked with six letters.Password lock for process control

Thin, ø4-mm cord makes work easy. New cord design ensures smooth, stress-free movement. Never get your arms tangled up again.HAKKO FT-801

  • HAKKO FT-8003 can strip the insulation off thick leads that HAKKO FT-8002 could not.HAKKO FT-8003
  • If cut with a knife blade
    It is not recommended to use a knife blade for cable stripping due to the high risk of cutting in the conductor or fraying shield that can result in ruining the cable.knife cutter
Model No.FT801-08
Power consumption68W/50W

Station
Output voltageAC 24V
Dimensions80(W)×130(H)×131(D)mm
Weight1.2kg

Wire Stripper (FT-8002)
Power consumption64W (24V)
Cord length1.3m
Total length96mm
Weight48g

Optional Wire Stripper (FT-8003)
Power consumption46W (24V)
Cord length<2m
Tip to ground resistance<2Ω
Tip to ground potential1.3mV
Total length155mm
Weight27g

* Weight for station (w/o cord)
* Length and weight for handpiece (w/o cord, blade)

Packing List

  1. HAKKO FT-801 Station
  2. HAKKO FT-8002
  3. Lead adjuster assembly
  4. Power cord
  5. Handpiece holder (with cover)
  6. Connecting cable
  7. Blade removal tool
  8. Wire material label
  9. Instruction manual

Note: Blades sold separately (See optional parts list)

HAKKO CORPORATION

(Discontinued)

ESD SAFERoHS

Hakko FT-801 Thermal wire stripper solves common problems caused by using hand tools.

  • Doesn’t damage wire cores
  • Doesn’t cut strands
  • Handle designed for up to Ø12mm leads.
  • Cuts insulation cleanly
  • Strip superfine lead wires with ease
  • Perfect for stripping single wires
  • Thermal wire stripper that ensures clean-cut removal of wire insulation
  • High stripping performance ensures clean cut through highly heat-resistant PTFE
  • It is also a perfect solution for the insulation stripping of single wires

Features

Blade hinge extended for up to Ø12mm to strip thick cables.

feature1Strip up to Ø12mm cables

feature2Use the option blade for over Ø12mm cables.

  • With a thermal wire stripper you can remove insulation cleanly without scratching core wires.With a thermal wire stripper you can remove insulation cleanly without scratching core wires.
  • Conventional tools cannot cut all the way through, and often leave behind whiskers of insulation or scratch the wire.Conventional tools cannot cut all the way through, and often leave behind whiskers of insulation or scratch the wire.

Feature 1Feature 1There is no need to adjust your hold on the grip. The handpiece is stored horizontally for ease of use.

Feature 2Feature 2Blades can open as wide as ø12 mm for stripping thick wires.

Feature 3Feature 3Thermal stripping ensures clean removal of insulation.

Feature 4Feature 4Digital design enables output (temperature) to suit insulation material. This prevents problems such as the inability to strip wire in a single action and stops the insulation from sticking to blades due to incorrect temperature.

Handpiece holder features a safety cover for safer operation.
This guard against accidents such as burns to hands and arms and burnt wires caused by accidental contact with the handpiece holder during operation. Safety cover for handpiece holder prevents accidents

Replace hot blades simply and safely. A choice of three replacement blades covers a wide range of wire gauges, and there is no need to replace the entire handpiece every time blades wear out. HAKKO FT-801

Power setting value and parameter setting can be locked with six letters.Password lock for process control

Thin, ø4-mm cord makes work easy. New cord design ensures smooth, stress-free movement. Never get your arms tangled up again.HAKKO FT-801

  • HAKKO FT-8003 can strip the insulation off thick leads that HAKKO FT-8002 could not.HAKKO FT-8003
  • If cut with a knife blade
    It is not recommended to use a knife blade for cable stripping due to the high risk of cutting in the conductor or fraying shield that can result in ruining the cable.knife cutter
Model No.FT801-08
Power consumption68W/50W

Station
Output voltageAC 24V
Dimensions80(W)×130(H)×131(D)mm
Weight1.2kg

Wire Stripper (FT-8002)
Power consumption64W (24V)
Cord length1.3m
Total length96mm
Weight48g

Optional Wire Stripper (FT-8003)
Power consumption46W (24V)
Cord length<2m
Tip to ground resistance<2Ω
Tip to ground potential1.3mV
Total length155mm
Weight27g

* Weight for station (w/o cord)
* Length and weight for handpiece (w/o cord, blade)

Packing List

  1. HAKKO FT-801 Station
  2. HAKKO FT-8002
  3. Lead adjuster assembly
  4. Power cord
  5. Handpiece holder (with cover)
  6. Connecting cable
  7. Blade removal tool
  8. Wire material label
  9. Instruction manual

Note: Blades sold separately (See optional parts list)
