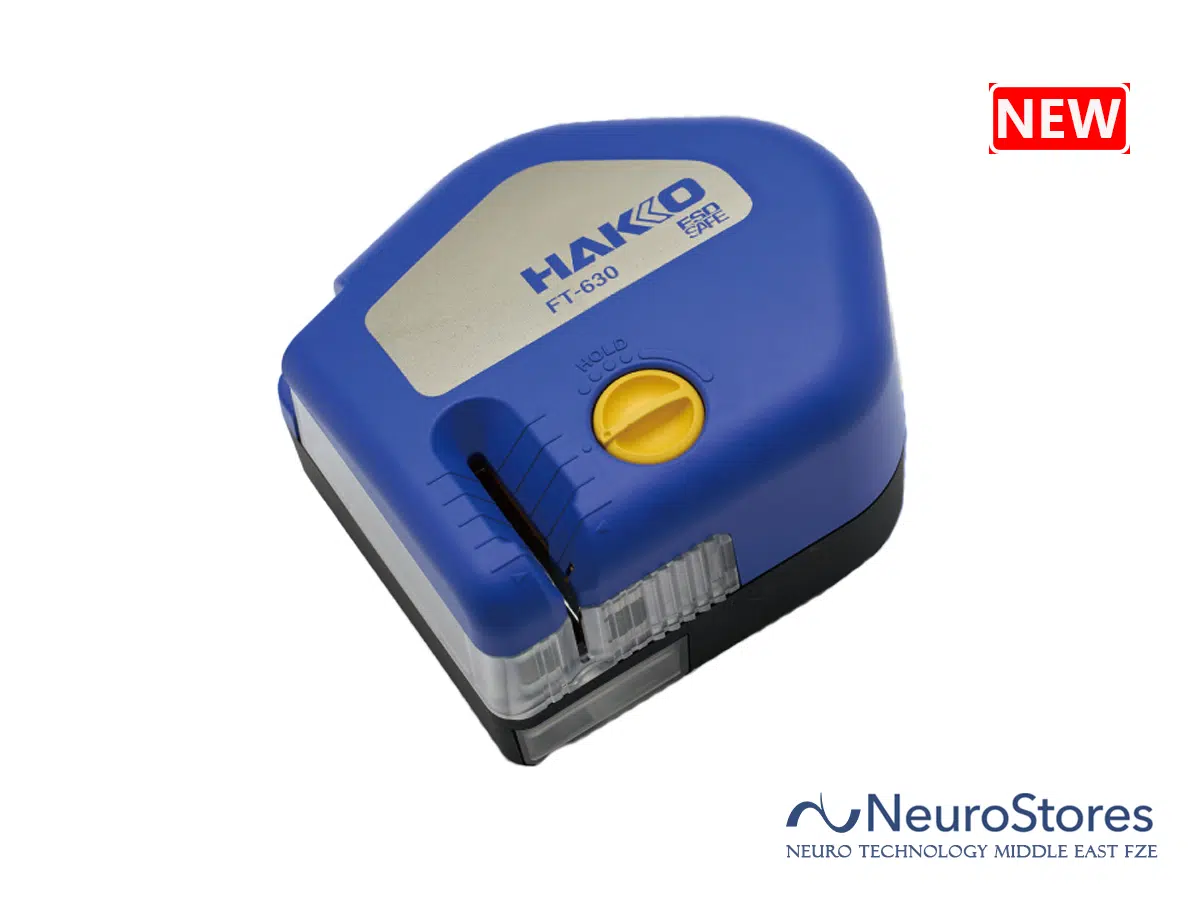

Hakko FT-630 Wick Cutter

HAKKO CORPORATION

ESD SAFEEU RoHS

Hakko FT-630: Industry’s first! “WICK Cutter”

  • No need for nippers for quick cuts
  • Eliminate contamination issues

Features

You can cut the wick without switching to nippers after solder removal, improving work efficiency.

カッター使用時のイメージカッター使用時のイメージ

After cutting, the wick debris (or sliver of wick) is collected in the wick collector, preventing them from scattering onto the workbench and eliminating contamination concerns.

ウィック受け

ニッパでの作業Cutting with nippers can lead to contamination from post-cut debris.

The holding mechanism eliminates the need to manually pull and withdraw a new wick after cutting. You can also adjust the holding force.

カッター使用時のイメージカッター使用時のイメージ

Diagonal cutting makes it possible to access narrow spaces.

Work with confidence even in ESD-controlled environments.

Compatible with WICK width from 0.7 to 3.8 mm, and cutting length from 2.5 to 30 mm.
You can also cut WICK short in advance and store it for later use, which will improve your work efficiency.

Blades can be easily replaced.

  Replacement cutting blades(Part No.:A5072)

Model No.FT630-XX
RatingDC 24 V 170 mA
Corresponding wick width0.7 to 3.8 mm
Cut length2.5 to 30 mm
Dimensions100 (W)×61 (H)×92 (D)mm
Weight280 g

AC adapter
Output voltageDC 24 V

  • Unit
  • AC adapter
  • Instruction manual

FT-630

images:A5072 Replacement cutting bladesPart No. A5072 Replacement cutting blades

images:B5383 Wick collectorPart No. B5383 Wick collector

images:B5382 Front coverPart No. B5382 Front cover
