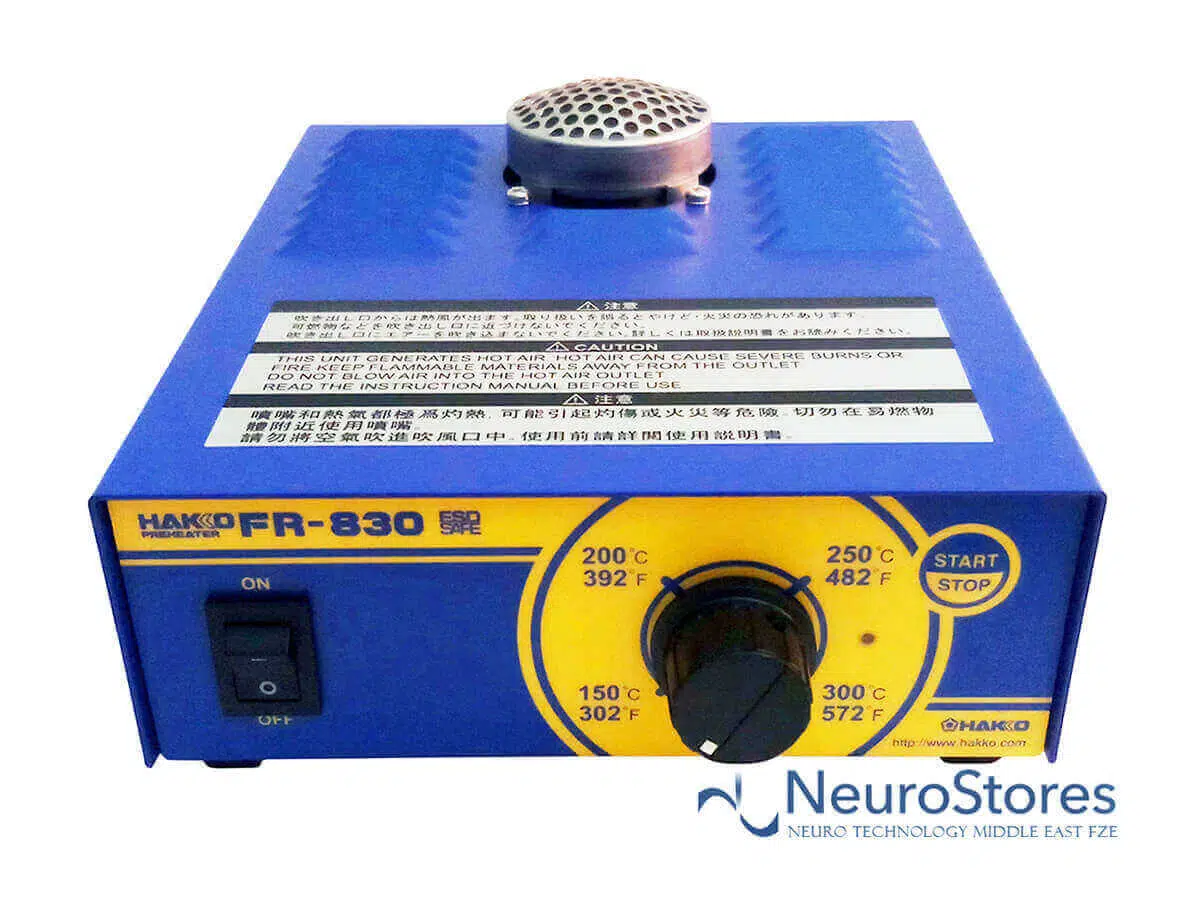

Hakko FR-830 Preheater, 230W (220V)

HAKKO CORPORATION

LEAD FREE ESD SAFE

Compact pre-heater with quick start-up and excellent heat recovery.

  • Compact pre-heater best suited for heat processing on localized areas
  • Featuring quick heat up and less variations in temperature
  • Best suited for pre-heating of multi-layer PWBs

Features

· Temperature range 150-300°C(302-572°F)
· CAL enables fine adjustment of temperature.

· The improved air outlet shorten preheat time compared with air conventional product.

* Please refer to above values, which vary depending on soldering condition.
·Hot air temperature 300ºC
·A gap between the hot air outlet and the PWB for 10mm
·Attach sensors to top/undersides of P.W.B and measure temperature.

· Pushing the “START/STOP” button at the end of work automatically activates the cool-down function.

Extension pipe with lid is available for local heating.

How to use the optional equipment
HAKKO FR-830用吹出しパイプの使い方 HAKKO FR-830
+ Omnivise C1390C (2 used) (Rework system) + Extension pipe/with backflow prevention lid B3263 (option)

Extension pipe: Used for local heating
Backflow prevention lid: When using in combination with SMD rework hot air, use the lid so hot air does not flow back into the FR-830 hot air outlet.

NOTE: Always use the backflow prevention lid when the FR-830 switch is off.

Set example
SMD-BGAリペアーシステムとの組合せ例 HAKKO FR-830
+ SMD rework station HAKKO FR-803B (discontinued)
+ Rework fixture C1392B*
+ Omnivise C1390C* (2 used)
(*Rework system

Various types of switching!
[Hand switch][Foot switch] can be connected.

Hand switch Connection cord length: Approximately 100 cm
Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H)

When using the hand switch, switching is not possible on the main device.

Foot switch Connection cord length: Approximately 135 cm

When using the foot switch, switching is not possible on the main device.

Probe

Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer HAKKO FG-101B to protect the workpiece
Controlling the temperatures of Hot Air Rework System

How to Use the Temperature Probe for Hot Air Rework System(No. C1541)

Measuring example
Measuring example

* Please refer to above values, which vary depending on soldering condition.

Measuring condition:
·Hot air temperature 300ºC
·A gap between the hot air outlet and the PWB for 10mm
·Attach sensors to top/undersides of P.W.B and measure temperature.

Please keep a gap between the hot air outlet and the PWB for more than 10mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up.

Please keep a gap between the hot air outlet and the PWB for more than 5mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up.


How to use

When should the optional Temperature Probe for Hot Air Rework System(No. C1541) be used?
The Temperature Probe for Hot Air Rework System (No. C1541) is equipped with 2 types of sensors. Before measuring temperatures as follows, connect the sensor to the thermometer.
Sensor A: When measuring the temperature of hot air blown from the nozzle:
Correcting thermal control can be made by confirming the temperature of the hot air that is actually blown.
Sensor B: When measuring the temperature of applicable parts (workpieces):
Rework can be performed without causing damage to the parts being reworked (QFP, etc.)
Model No.FR830-07
Power consumption230W (220V)
Air flow0.15m3/min. (fan capability)
Temperature range150 to 300ºC (Above the blow exit)
Dimensions140(W)×75(H)×185(D)mm
Weight 0.75kg

* Weight (w/o cord)
* Height(H) is the distance from the bottom of the feet to the top of the hot air outlet.

  1. Unit,
  2. Power cord,
  3. Instruction manual

>>Click here for Replacement Parts and Option.

HAKKO CORPORATION

LEAD FREE ESD SAFE

Compact pre-heater with quick start-up and excellent heat recovery.

  • Compact pre-heater best suited for heat processing on localized areas
  • Featuring quick heat up and less variations in temperature
  • Best suited for pre-heating of multi-layer PWBs

Features

· Temperature range 150-300°C(302-572°F)
· CAL enables fine adjustment of temperature.

· The improved air outlet shorten preheat time compared with air conventional product.

* Please refer to above values, which vary depending on soldering condition.
·Hot air temperature 300ºC
·A gap between the hot air outlet and the PWB for 10mm
·Attach sensors to top/undersides of P.W.B and measure temperature.

· Pushing the “START/STOP” button at the end of work automatically activates the cool-down function.

Extension pipe with lid is available for local heating.

How to use the optional equipment
HAKKO FR-830用吹出しパイプの使い方 HAKKO FR-830
+ Omnivise C1390C (2 used) (Rework system) + Extension pipe/with backflow prevention lid B3263 (option)

Extension pipe: Used for local heating
Backflow prevention lid: When using in combination with SMD rework hot air, use the lid so hot air does not flow back into the FR-830 hot air outlet.

NOTE: Always use the backflow prevention lid when the FR-830 switch is off.

Set example
SMD-BGAリペアーシステムとの組合せ例 HAKKO FR-830
+ SMD rework station HAKKO FR-803B (discontinued)
+ Rework fixture C1392B*
+ Omnivise C1390C* (2 used)
(*Rework system

Various types of switching!
[Hand switch][Foot switch] can be connected.

Hand switch Connection cord length: Approximately 100 cm
Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H)

When using the hand switch, switching is not possible on the main device.

Foot switch Connection cord length: Approximately 135 cm

When using the foot switch, switching is not possible on the main device.

Probe

Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer HAKKO FG-101B to protect the workpiece
Controlling the temperatures of Hot Air Rework System

How to Use the Temperature Probe for Hot Air Rework System(No. C1541)

Measuring example
Measuring example

* Please refer to above values, which vary depending on soldering condition.

Measuring condition:
·Hot air temperature 300ºC
·A gap between the hot air outlet and the PWB for 10mm
·Attach sensors to top/undersides of P.W.B and measure temperature.

Please keep a gap between the hot air outlet and the PWB for more than 10mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up.

Please keep a gap between the hot air outlet and the PWB for more than 5mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up.


How to use

When should the optional Temperature Probe for Hot Air Rework System(No. C1541) be used?
The Temperature Probe for Hot Air Rework System (No. C1541) is equipped with 2 types of sensors. Before measuring temperatures as follows, connect the sensor to the thermometer.
Sensor A: When measuring the temperature of hot air blown from the nozzle:
Correcting thermal control can be made by confirming the temperature of the hot air that is actually blown.
Sensor B: When measuring the temperature of applicable parts (workpieces):
Rework can be performed without causing damage to the parts being reworked (QFP, etc.)
Model No.FR830-07
Power consumption230W (220V)
Air flow0.15m3/min. (fan capability)
Temperature range150 to 300ºC (Above the blow exit)
Dimensions140(W)×75(H)×185(D)mm
Weight 0.75kg

* Weight (w/o cord)
* Height(H) is the distance from the bottom of the feet to the top of the hot air outlet.

  1. Unit,
  2. Power cord,
  3. Instruction manual

>>Click here for Replacement Parts and Option.
