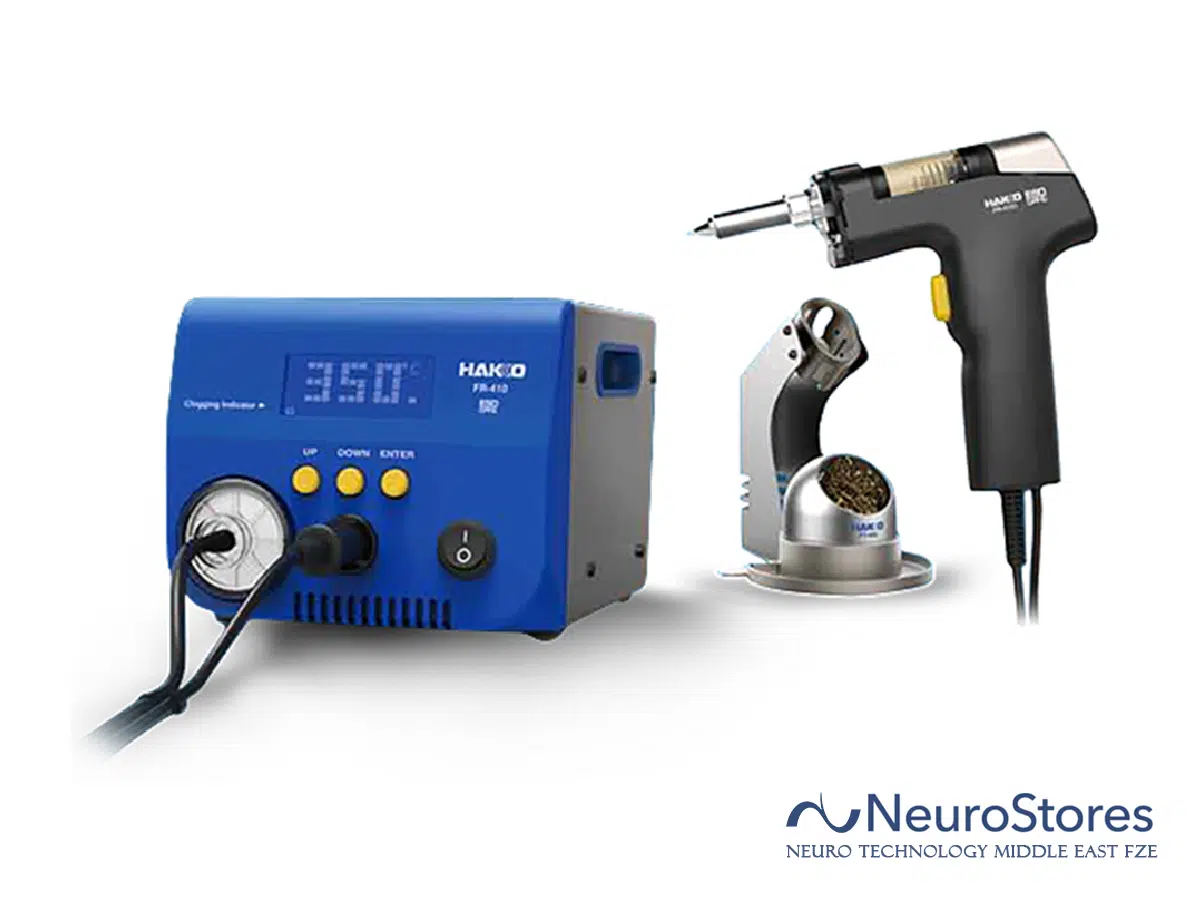

Hakko FR-4103 a desoldering tool with built-in vacuum pump. 140 W high power enables perfect desoldering on multi-layer PWB.
- New type nozzle can also fit onto micro land patterns and narrow space.
- Separate nozzle and heater, furthermore, ensure running cost advantage for you.
- Featuring a large LCD display– Vacuum indicator to check clogging.
Features
Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of downsized devices like mobile phone.
Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
・Improvement in heating core
Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.
・Featuring ACF (Anti Clogging Function)
ACF (Anti Clogging Function) ensures suctioned solder be carried to filter pipe by keeping the pump running for a certain period of time (1 to 5 seconds) automatically after releasing trigger.
・Easy nozzle replacement
The dedicated wrench allows safe, easy and smooth nozzle replacement.
・Easy heater replacement
Easy heater replacement by removing 3 screws on the part of heating core.
・Larger filer and more transparency
Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition.
・Tool box
FR-410 comes with a tool box that contains of maintenance tools to keep nozzles and heater in a good condition.
Very easy to see temperature on the large LCD display
Vacuum indicator to check clogging
| Model No. | FR410-09 |
|---|---|
| Power consumption | 190W |
| Temperature range | 330 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
|---|---|
| Output voltage | AC 24V |
| Vacuum generator | Vacuum pump, double cylinder type |
| Vacuum pressure | Max. 80kPa (600mmHg) |
| Suction flow | 15L/min. |
| Dimensions | 165(W)×137(H)×244(D)mm |
| Weight | 4.8kg |
| Desoldering Tool | FR4103-81 |
|---|---|
| Power consumption | 140W (24V) |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Standard nozzle | Φ1.0mm S type (No.N61-05) |
| Cord length | 1.2m |
| Total length | 168mm (with Φ1.0mm S type nozzle) |
| Weight | 170g (with Φ1.0mm S type nozzle) |
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
- Station
- Desoldering tool (FR-4103)
- Power cord
- Iron holder (with cleaning wire)
- Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4])
- Instruction manual
>> Click here for Replacement Parts and Option.
