HAKKO CORPORATION
300 W tremendous power enables nearly impossible desoldering on PWB with high heat capacity and high heat dissipation property.
- Heavy-duty Desoldering Tool with a built-in vacuum pump.
- Quick and secure desoldering even on high heat capacity and high heat dissipation PWB with a superpower.
- Secure desoldering with valve function.
- Solder clogging was reduced featuring Anti Clogging Function.
Features
Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
Improved heating ability and ACF* ensure suctioned solder is carried to filter pipe and reduce solder clogging.
- ACF (Anti-clogging Function) is a function to keep the pump running for a certain number of seconds after releasing the trigger.
・Featuring new filter pipe 3 times larger than the previous model
The new filter pipe is 3 times larger than the previous model and applicable to operation on large components. This is not disposal type and for repeatable use.
・Easy heater replacement
Easy heater replacement by removing 3 screws on the part of the heating element.
・Tool box for maintenance kit
A toolbox that contains maintenance tools such as cleaning pins for the nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.
・Larger filer and more transparency
When desoldering, flux is also suctioned. Flux can cause degradation of suction performance if it enters inside the pump. To avoid degradation, the filter is attached to the front panel. The new filter is larger than the previous type to enhance greater adsorption property. Also, the transparent filter cover makes it easy to check the filter condition.
Nozzle Quick Changer compatible handle (FR-4003) enables one-action nozzle replacement
It is important to heat a land of PWB and a component lead with a nozzle at the same time when desoldering.
Selection of the right nozzle shape is critical to ensuring the quality of work. Inappropriate nozzles can decrease work efficiency and damage PWB.
The nozzle lineup for FR-400 covers a variety of desoldering works, such as large DIA leads and flat-type terminals.
-
Large nozzles for 2 mm or larger DIA lead
The nozzle in the photo is N60-06 - Oval shape nozzles for flat-type terminalsThe nozzle in the photo is N60-09
| Model No. | FR400-60 |
|---|---|
| Power consumption | 320W |
| Temperature range | 350 to 500ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
|---|---|
| Output voltage | AC 29V |
| Vacuum generator | Vacuum pump, double cylinder type |
| Vacuum pressure | Max. 80kPa (600mmHg) |
| Suction flow | 15L/min. |
| Dimensions | 166(W)×137(H)×264(D)mm |
| Weight | 5.7kg |
| Desoldering Tool | FR4003-81 |
|---|---|
| Power consumption | 300W (29V) |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Standard nozzle | Φ1.0mm type (No.N60-02) |
| Cord length | 1.2m |
| Total length | 183mm (with Φ1.0mm nozzle) |
| Weight | 270 g (with N60-02 nozzle) |
- The suction flow is measured at the filter case suction port of the station.
- Total length and weight are measured without cord and hose.

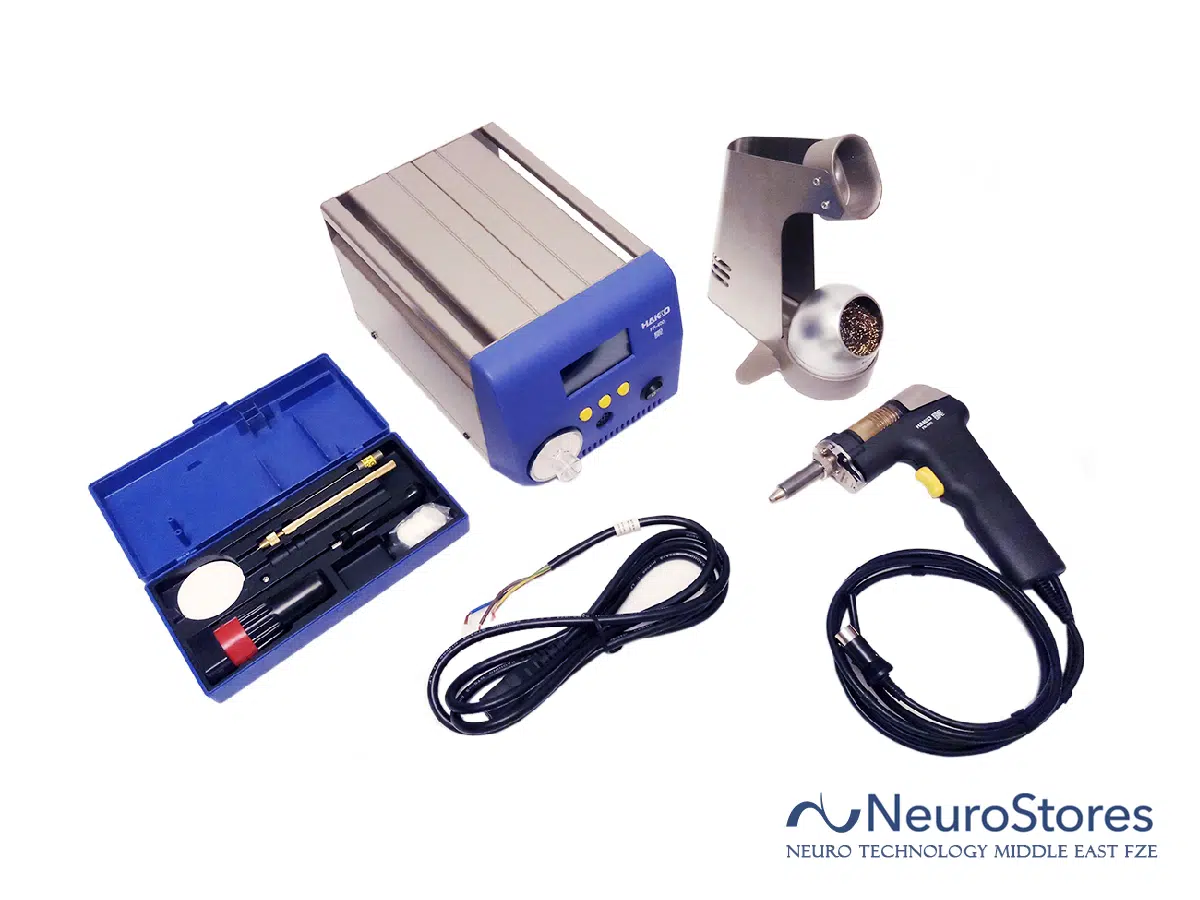

- Station
- Desoldering tool (FR-4003)
- Power cord,
- Iron holder (with cleaning wire)
- Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for the heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4])
- Instruction manual
>> Click here for Replacement Parts and Option.
