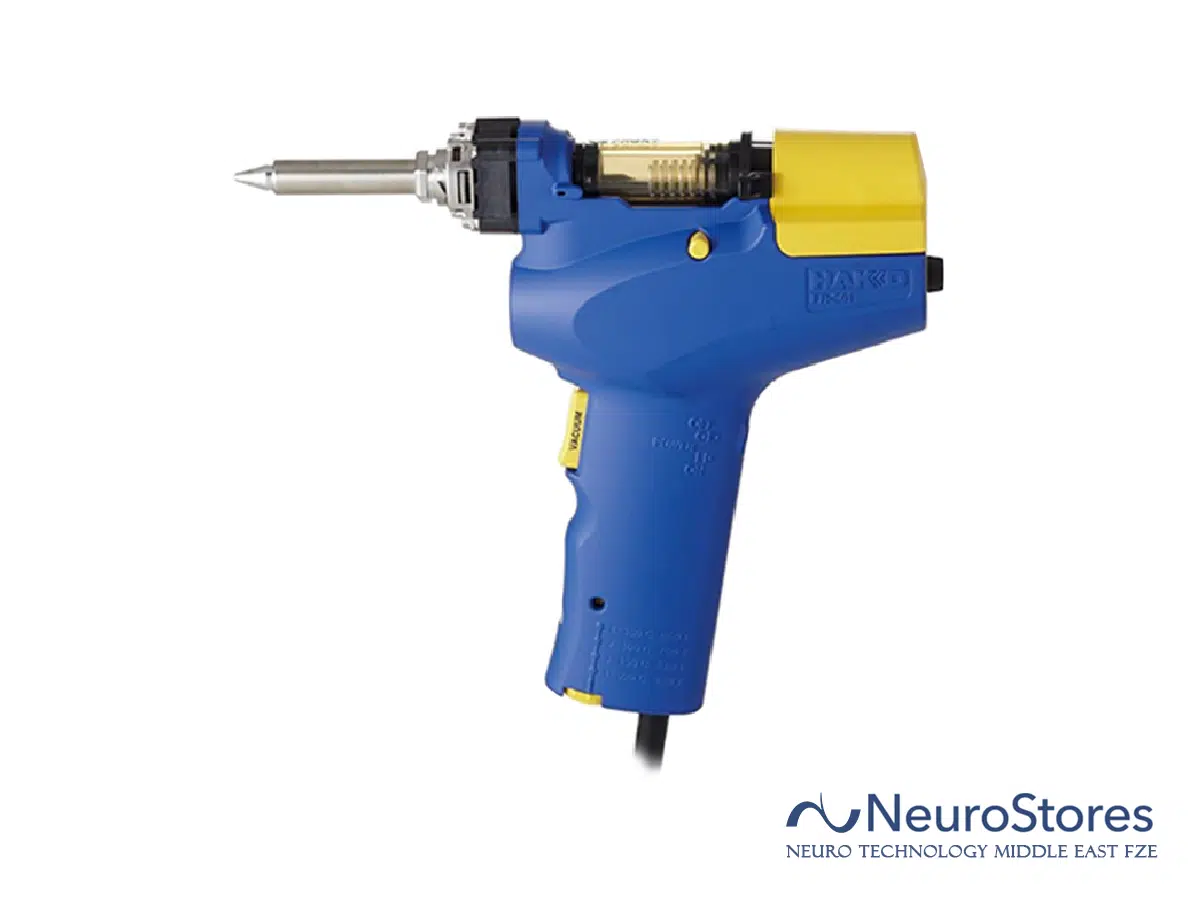

HAKKO CORPORATION
A wide range of nozzles and shapes for any desoldering. Use of high thermal efficiency N61 series nozzles.
- A wide range of nozzles and shapes for secure desoldering
- Reduction of solder clogging by improved heating core
- Easy filter maintenace
- Safe and easy nozzle change with the nozzle wrench
Features
N61 series nozzles can also be used for HAKKO FR-410 desoldering station.
* N61 series nozzles cannot be used for FR-300.
The nozzles lineup includes diameters from 0.6 mm to 1.6 mm and also oval shape nozzles.
Desoldering on micro land and in fine pitch can be possible.
Uses HAKKO’s unique sensor feedback control method.
– CAL enables fine adjustment of temperature
– LED indicators let you easily see when the heater is active and idling at your temperature setting.
* In comparison with the previous model
The structure of the filter pipe is same as HAKKO FR-410 desoldering station. That makes it easier to clean the filter pipe compared to the previous model.
>> Part numbers of the replacement parts
The filter pipe assembly, a set of the five parts, is also available.
The Quick Change Nozzle System allows for a safer and simpler method to quickly remove nozzles for cleaning or replacement, even when the unit is hot.
Prevents burns and accidents with hot parts
Convenient for temporal stop of operation. Turning off the power can reduce nozzle oxidation.
Comes with a carrying case for prompt storage after use.
| Model No. | FR301-10 |
|---|---|
| Power consumption | 220V 100W (50/60Hz) |
| Temperature range | 350 to 500ºC |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Vacuum generator | Diaphragm pump |
| Vacuum pressure | 81kPa (610mmHg) |
| Suction flow | 11L/min. |
| Heating element | Ceramic heater |
| Standard nozzle | Φ1mm (No.N61-08) |
| Dimensions | 215(W)×226(H) mm (with Φ1 mm (No.N61-08) nozzle) |
| Weight | 0.52kg (with Φ1 mm (No.N61-08) nozzle) |
* Total length and weight (w/o cord)
- Unit, Pre-filter
- Ceramic paper filter (L; 2pcs)
- Nozzle wrench
- Iron holder (simple type)
- Cleaning pin for heating core
- Cleaning pin for Φ1 mm nozzle
- Instruction manual

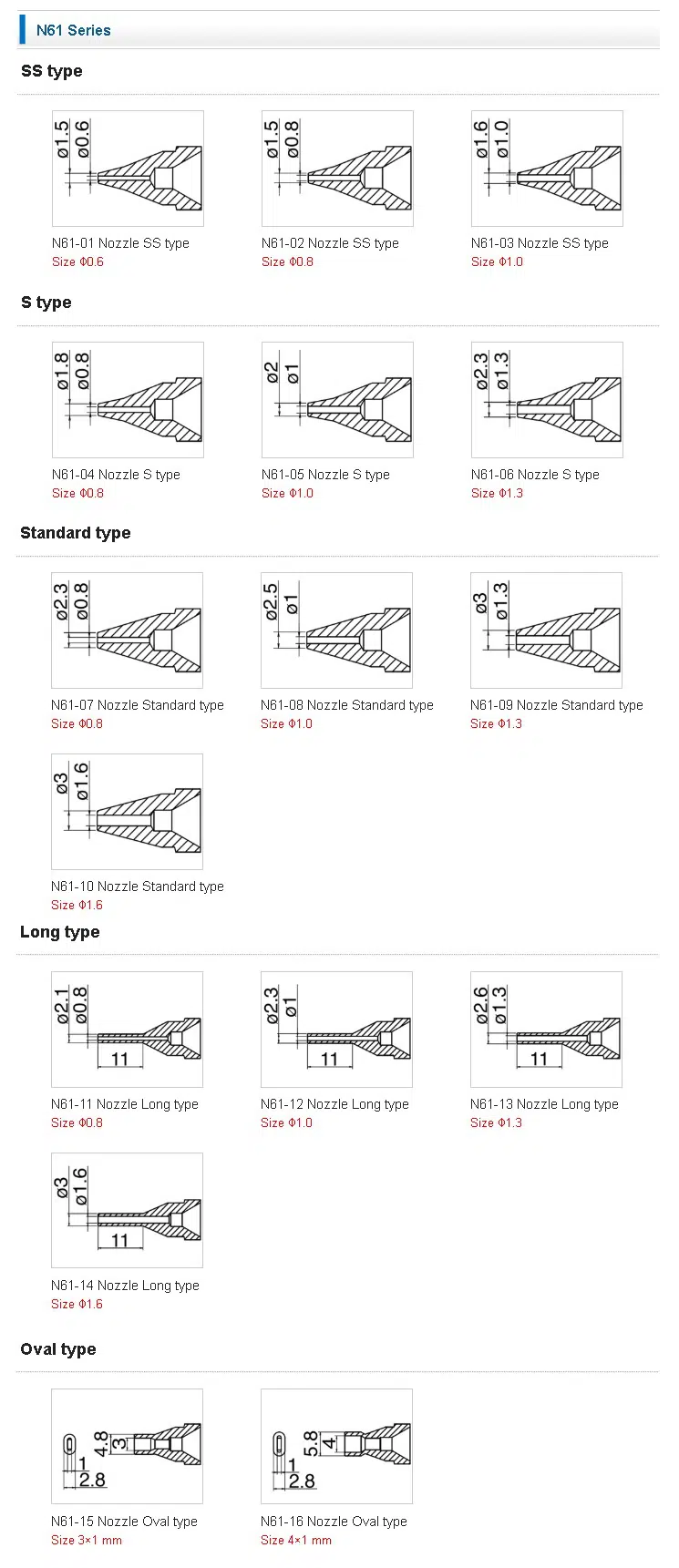

* Click here to view the types of nozzles.
| SS type: | |
|---|---|
| N61-01 | Size Φ0.6mm |
| N61-02 | Size Φ0.8mm |
| N61-03 | Size Φ1.0mm |
| S type: | |
|---|---|
| N61-04 | Size Φ0.8mm |
| N61-05 | Size Φ1.0mm |
| N61-06 | Size Φ1.3mm |
| Standard type: | |
|---|---|
| N61-07 | Size Φ0.8mm |
| N61-08 | Size Φ1.0mm |
| N61-09 | Size Φ1.3mm |
| N61-10 | Size Φ1.6mm |
| Long type: | |
|---|---|
| N61-11 | Size Φ0.8mm |
| N61-12 | Size Φ1.0mm |
| N61-13 | Size Φ1.3mm |
| N61-14 | Size Φ1.6mm |
| Oval type: | |
|---|---|
| N61-15 | Size 3×1 mm |
| N61-16 | Size 4×1 mm |
>> Click here for Replacement Parts and Option.
