HAKKO CORPORATION
Hakko FM-2031 N2 soldering iron conversion kit designed exclusively for HAKKO FM-206.
- The N2 gas and preheating effect have achieved significant improvement in soldering work!
- N2 soldering iron providing a 140W high output.
Features
The hot N2 gas is effective for preheating.
Can be used in combination with your existing high power soldering station, HAKKO FM-206.
Can be used in combination with the HAKKO FX-780 and HAKKO FX-791 to create an N2 System.
Combination Example
183(W)×280(H)×205(D)mm
*Reference dimensions
Model No. | FM2031-01 | FM2031-02 |
---|---|---|
Power consumption | 140W (24V) | |
Temperature range | 200 to 500ºC | |
Tip to ground resistance | <2Ω | |
Tip to ground potential | <2mV | |
Heating element | Composite heater | |
Cord length | 1.2m | |
Total length | 231mm (with 2.4D tip) | |
Weight | 47g (with 2.4D tip and nozzle assembly E) |
* Total length and weight (w/o cord,tube)

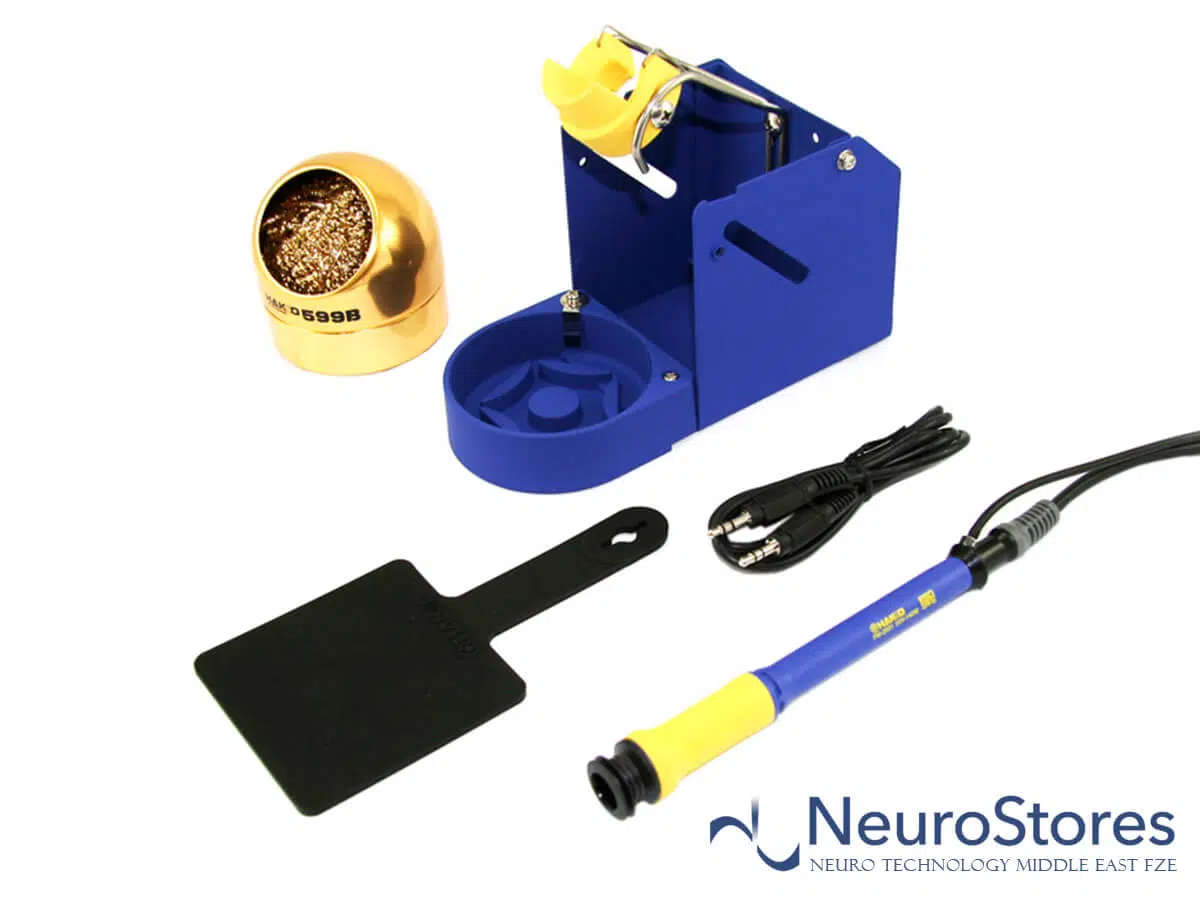

No.FM2031-02
1. N2 soldering iron (HAKKO FM-2031)
2. Iron holder
3. Connecting cable
4. Heat resistant pad
5. Instruction manual (No photo)
>> T22 Series Tips: |
Shape BC/C | |
---|---|
T22-BC2 | Shape-2BC Heavy Duty Type B3121 Nozzle assembly A |
T22-C3 | Shape-3C Heavy Duty Type B3121 Nozzle assembly A |
T22-C5 | Shape-5C Heavy Duty Type B3124 Nozzle assembly D |
T22-C6 | Shape-6C Heavy Duty Type B3124 Nozzle assembly D |
Shape B | |
---|---|
T22-BL | Shape-BL Heavy Duty Type B3121 Nozzle assembly A |
T22-BL2 | Shape-2BL Heavy Duty Type B3121 Nozzle assembly A |
Shape D | |
---|---|
T22-D08 | Shape-0.8D Heavy Duty Type B3123 Nozzle assembly C |
T22-D12 | Shape-1.2D Heavy Duty Type B3121 Nozzle assembly A |
T22-D16 | Shape-1.6D Heavy Duty Type B3123 Nozzle assembly C |
T22-D24 | Shape-2.4D Heavy Duty Type B3561 Nozzle assembly E |
T22-D32 | Shape-3.2D Heavy Duty Type B3124 Nozzle assembly D |
T22-D45 | Shape-4.5D Heavy Duty Type B3124 Nozzle assembly D |
T22-D52 | Shape-5.2D Heavy Duty Type B3124 Nozzle assembly D |
Shape J | |
---|---|
T22-J02 | Shape-0.2J Heavy Duty Type B3121 Nozzle assembly A |
T22-JD08 | Shape-0.8JD Heavy Duty Type B3561 Nozzle assembly E |
Shape K | |
---|---|
T22-K | Shape-K Heavy Duty Type B3123 Nozzle assembly C |
