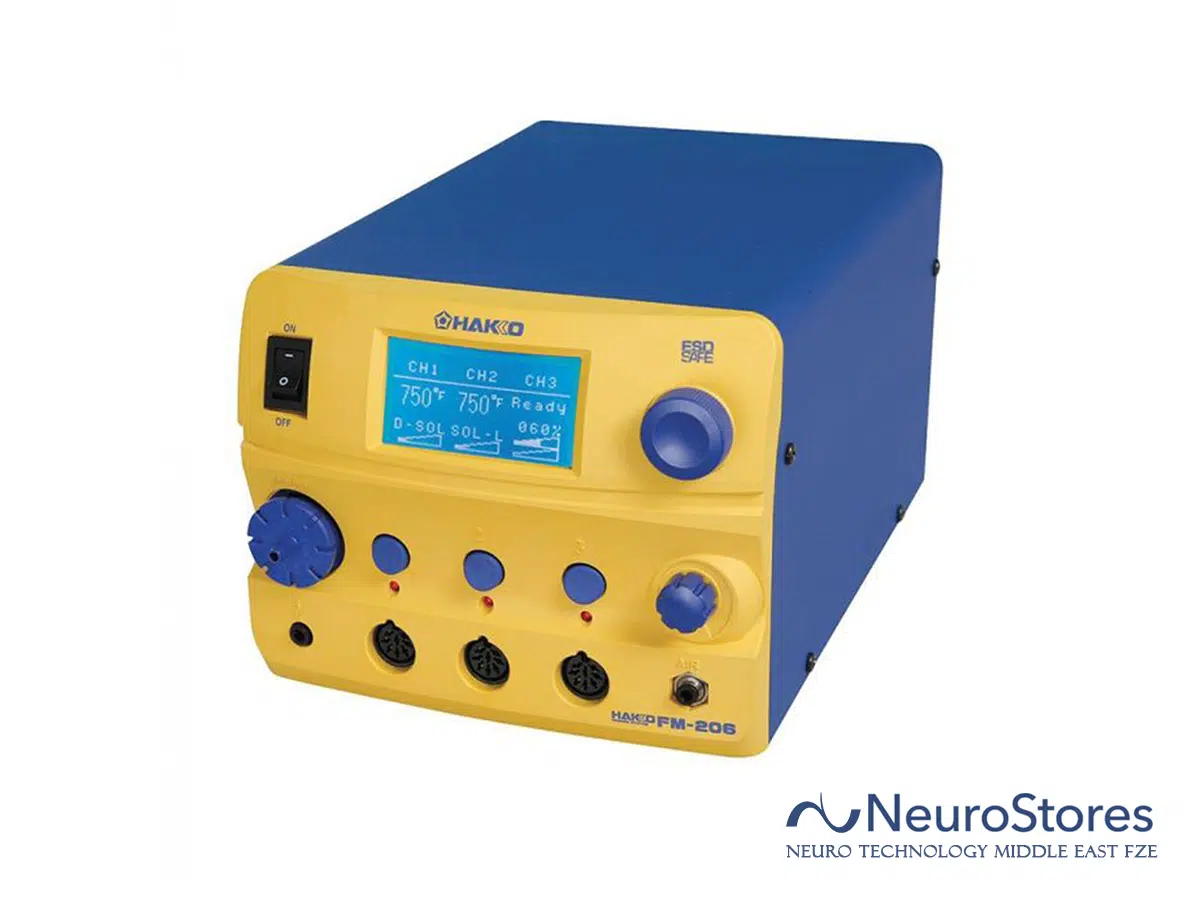

Hakko FM-206 : Multi-station that enables soldering, desoldering, and SMD rework all with a single unit
- Single-nozzle hot air handpiece comes as standard equipment
- Graphic LCD enables easy viewing and operation
- Selectable soldering iron for N2 system or micro soldering as usage at your option
Features
Features expandability in which the handpiece can be switched as needed for added functions.
Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece.
The sleeve of the FM-2027 soldering iron can be locked to secure the tip.
*Click the image to enlarge.
Provides higher thermal recovery than conventional tips.
*Click the image to enlarge.
Securely and easily remove 10 x 10 (mm) chips.
Uses a large LCD for easy panel reading and easy, stress-free setting changes.
| Handpiece: | ||
|---|---|---|
| HAKKO FM-2027 | HAKKO FM-2024 | HAKKO FM-2029 |
| HAKKO FM-2026 | HAKKO FM-2023 | HAKKO FM-2022 |
| HAKKO FM-2030 | HAKKO FM-2031 | HAKKO FM-2032 |
*1 HAKKO FM-2024 can be connected to FM-206 receptacles 1, 2, and 3, but it can only be used with one receptacle.
*2 HAKKO FM-2029 can only be used with FM-206 receptacle 3.
| Model No. | FM206-09 |
|---|---|
| Power consumption | 410W (Max.) |
| Temperature range | FM-2026/2027：200 to 450ºC FM-2022/2023：200 to 400ºC FM-2024：350 to 450ºC FM-2029：100 to 550ºC FM-2030：200 to 500ºC FM-2031：200 to 500ºC FM-2032：200 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
|---|---|
| Output voltage | AC 24V |
| Vacuum generator | Vacuum pump, cylinder type |
| Vacuum pressure | 80kPa (600mmHg) (Max.) |
| Suction flow | 14L/min. |
| Air flow | 6L/min. (Max.) |
| Dimensions | 162(W)×136(H)×245(D)mm |
| Weight | 6.2kg |
| Soldering Iron | |
|---|---|
| Power consumption | 70W (24V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
| Desoldering Tool | |
|---|---|
| Power consumption | 70W (24V) |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 180mm (with Φ1.0mm nozzle) |
| Weight | 65g (with Φ1.0mm nozzle) |
| Handpiece (Hot air) : for FM-206 | |
|---|---|
| Power consumption | 140W (24V) |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 232mm (with Φ4.0mm nozzle) |
| Weight | 50g (with Φ4.0mm nozzle) |
* Total length and weight (w/o cord)
* Total length and weight for handpiece (Hot air) (w/o cord, tube)
- Station, Power cord
- FM-2024 conversion kit
- Tip tray
- FM-2027 conversion kit
- FM-2029 conversion kit
- Instruction manual
* Click the icon and jump to tip shape view image.
>> T12 series Tips:
| >> N1 Series Desoldering Nozzles: | |
|---|---|
| N1-06 | Size Φ0.6 |
| N1-08 | Size Φ0.8 |
| N1-10 | Size Φ1.0 |
| N1-13 | Size Φ1.3 |
| N1-16 | Size Φ1.6 |
| N1-20 | Size Φ2.0 |
| N1-23 | Size Φ2.3 |
| N1-L10 | Size Φ1.0 (Long) |
| >> T22 Series Soldering Tips: | |
|---|---|
| T22-BC2 | Shape-2BC Heavy Duty Type B3121 Nozzle assembly A |
| T22-C3 | Shape-3C Heavy Duty Type B3121 Nozzle assembly A |
| T22-C5 | Shape-5C Heavy Duty Type B3124 Nozzle assembly D |
| T22-C6 | Shape-6C Heavy Duty Type B3124 Nozzle assembly D |
| T22-BL | Shape-BL Heavy Duty Type B3121 Nozzle assembly A |
| T22-BL2 | Shape-2BL Heavy Duty Type B3121 Nozzle assembly A |
| T22-D08 | Shape-0.8D Heavy Duty Type B3123 Nozzle assembly C |
| T22-D12 | Shape-1.2D Heavy Duty Type B3121 Nozzle assembly A |
| T22-D16 | Shape-1.6D Heavy Duty Type B3123 Nozzle assembly C |
| T22-D24 | Shape-2.4D Heavy Duty Type B3561 Nozzle assembly E |
| T22-D32 | Shape-3.2D Heavy Duty Type B3124 Nozzle assembly D |
| T22-D45 | Shape-4.5D Heavy Duty Type B3124 Nozzle assembly D |
| T22-D52 | Shape-5.2D Heavy Duty Type B3124 Nozzle assembly D |
| T22-J02 | Shape-0.2J Heavy Duty Type B3121 Nozzle assembly A |
| T22-JD08 | Shape-0.8JD Heavy Duty Type B3561 Nozzle assembly E |
| T22-K | Shape-K Heavy Duty Type B3123 Nozzle assembly C |
