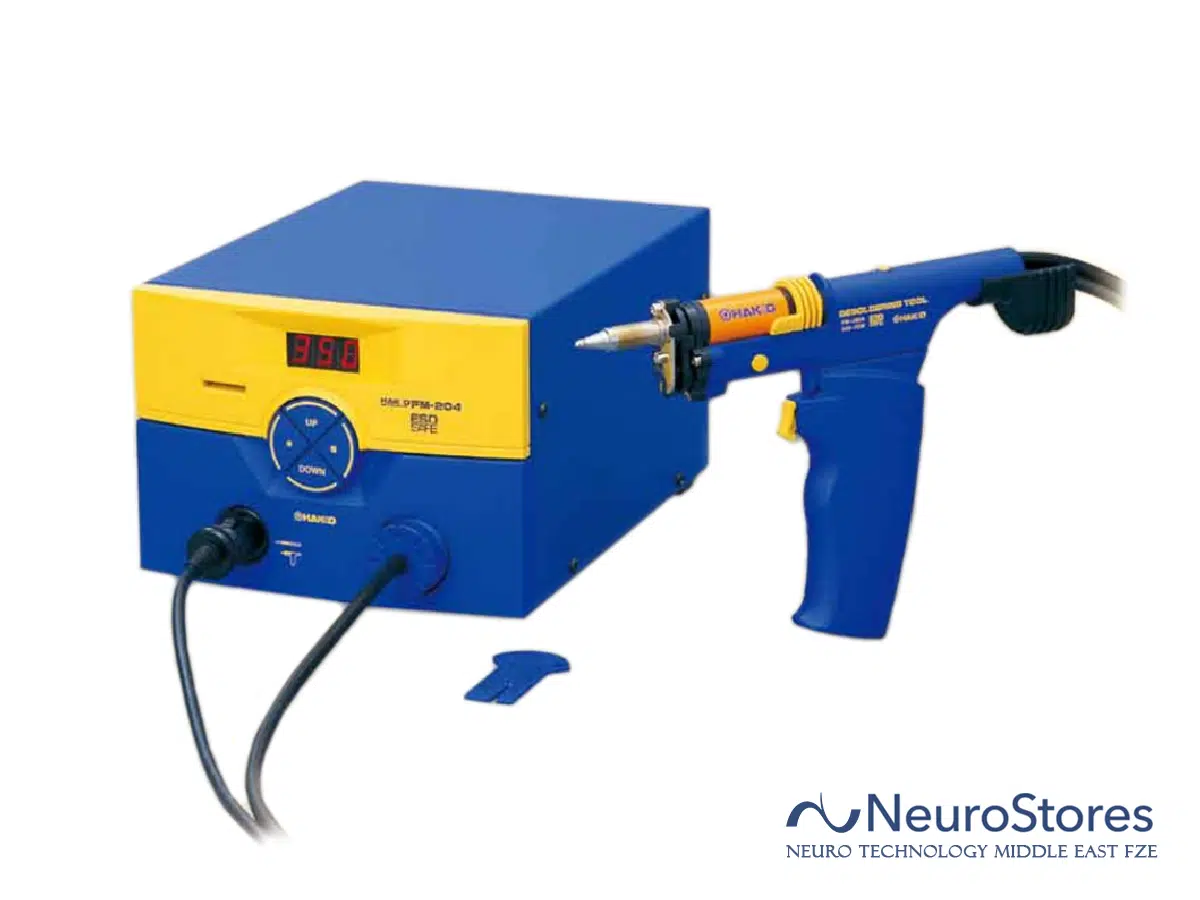

Hakko FM-204 Desoldering Tool, 120W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

Easy-to-use FM Series Desoldering Tool, Desoldering hand-piece (HAKKO FM-2024), Soldering iron (HAKKO FM-2027), N2 soldering iron (HAKKO FM-2026).

  • Vacuum pump type desoldering tool with excellent thermal recovery
  • Digital display ensures easy and reliable temperature control
  • Sleep function that works with iron holder curbs the oxidation of nozzles

Features

·The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

HAKKO FM-204&HAKKO Thermal Recovery Graph

Connectible handpieces:
– Desoldering handpiece (HAKKO FM-2024)
– Soldering iron (HAKKO FM-2027)
– N2 soldering iron (HAKKO FM-2026)

Two-way use of gun type and straight type is available.

Gun configuration Gun configuration

Straight configuration Straight configuration

Filter pipe replacement:
– Disposable paper filter pipe
– Easy to dispose of paper and solder separately
Nozzle replacement:
– Safe to replace with nozzle remover
– Replaceable even before the end of nozzle has cooled down

(1) Detach the nozzle remover (1) Detach the nozzle remover

(2) Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture. (2) Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture.

(3) Pull the nozzle remover with the nozzle cartridge in one stroke. (3) Pull the nozzle remover with the nozzle cartridge in one stroke.

Sleep function:
When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized.
In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering
* The connecting cable enables the iron holder and temperature controller to be activated.

By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
– Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound.

Model No.FM204-06
Power consumption120W
Temperature rangeFM-2024 : 350 to 450ºC
FM-2026/2027 : 200 to 450ºC
Temperature stability±5ºC at idle temperature
Station
Output voltageAC 24V
Vacuum generatorVacuum pump, double cylinder type
Vacuum pressureMax. 80kPa (600mmHg)
Suction flow15L/min.
Dimensions160(W)×120(H)×225(D)mm
Weight3.7kg
Desoldering Tool
Power consumption70W (24V)
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length180mm (with Φ1.0mm nozzle)
Weight65g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

HAKKO FM-204 Packing List

1. Main unit (HAKKO FM-204 station)
2. Iron holder (No. FH200-05; with tip cleaner)
3. Ceramic paper filter (10pcs.) (for replacement)
4. Cleaning drill (for heating element)
5. Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare*5)
6. Control card
7. Desoldering tool (Model FM-2024)
8. Connecting cable
9. Nozzle remover
10. Handle (for gun configuration)
*11. Power cord
*12. Instruction manual
*13 Tip tray
*No photos are shown for parts *5,*11, *12 and *13.

* This product does not include a nozzle. When purchasing this product, be sure to order a nozzle suitable for the work.

>> Click here N1 Series Nozzle:

Hakko N1-08 | NeuroStores by Neuro Technology Middle East Fze

>> CLick here for sizes N1 series nozzles.

>> Click here for Replacement Parts and Option.

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

Easy-to-use FM Series Desoldering Tool, Desoldering hand-piece (HAKKO FM-2024), Soldering iron (HAKKO FM-2027), N2 soldering iron (HAKKO FM-2026).

  • Vacuum pump type desoldering tool with excellent thermal recovery
  • Digital display ensures easy and reliable temperature control
  • Sleep function that works with iron holder curbs the oxidation of nozzles

Features

·The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

HAKKO FM-204&HAKKO Thermal Recovery Graph

Connectible handpieces:
– Desoldering handpiece (HAKKO FM-2024)
– Soldering iron (HAKKO FM-2027)
– N2 soldering iron (HAKKO FM-2026)

Two-way use of gun type and straight type is available.

Gun configuration Gun configuration

Straight configuration Straight configuration

Filter pipe replacement:
– Disposable paper filter pipe
– Easy to dispose of paper and solder separately
Nozzle replacement:
– Safe to replace with nozzle remover
– Replaceable even before the end of nozzle has cooled down

(1) Detach the nozzle remover (1) Detach the nozzle remover

(2) Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture. (2) Firmly attach the nozzle remover to the nozzle cartridge as shown in the picture.

(3) Pull the nozzle remover with the nozzle cartridge in one stroke. (3) Pull the nozzle remover with the nozzle cartridge in one stroke.

Sleep function:
When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized.
In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering
* The connecting cable enables the iron holder and temperature controller to be activated.

By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
– Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound.

Model No.FM204-06
Power consumption120W
Temperature rangeFM-2024 : 350 to 450ºC
FM-2026/2027 : 200 to 450ºC
Temperature stability±5ºC at idle temperature
Station
Output voltageAC 24V
Vacuum generatorVacuum pump, double cylinder type
Vacuum pressureMax. 80kPa (600mmHg)
Suction flow15L/min.
Dimensions160(W)×120(H)×225(D)mm
Weight3.7kg
Desoldering Tool
Power consumption70W (24V)
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length180mm (with Φ1.0mm nozzle)
Weight65g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

HAKKO FM-204 Packing List

1. Main unit (HAKKO FM-204 station)
2. Iron holder (No. FH200-05; with tip cleaner)
3. Ceramic paper filter (10pcs.) (for replacement)
4. Cleaning drill (for heating element)
5. Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare*5)
6. Control card
7. Desoldering tool (Model FM-2024)
8. Connecting cable
9. Nozzle remover
10. Handle (for gun configuration)
*11. Power cord
*12. Instruction manual
*13 Tip tray
*No photos are shown for parts *5,*11, *12 and *13.

* This product does not include a nozzle. When purchasing this product, be sure to order a nozzle suitable for the work.

>> Click here N1 Series Nozzle:

Hakko N1-08 | NeuroStores by Neuro Technology Middle East Fze

>> CLick here for sizes N1 series nozzles.

>> Click here for Replacement Parts and Option.
