Hakko FM-2032 Micro-soldering Conversion Kit

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

Hakko FM-2032 is a conversion kit of micro-soldering that works with your Hakko high-end stations FX-951, FM-203 or FM-206.

  • Fine tip and slim heater ensure your sophisticated soldering for precise components on high-density PWB under a microscope.
  • N2 Soldering is possible with option parts.

Features

Connect any of the three stations below. The high power 48W heater is capable even to multilayer PWB with excellent thermal recovery.

HAKKO FX-951>> HAKKO FX-951

HAKKO FM-203>> HAKKO FM-203

HAKKO FM-206>> HAKKO FM-206

HAKKO’s slim and light-weight soldering iron sustains a high level of visibility.

Ideal for micro-soldering applications under a microscope

Optional parts, “Hose assembly” and appropriate “Nozzle assembly” for the tip, make FM-2032 compatible with N2 system.
Heated N2 gas contributes to ‘improvement of solderbilityʼ, ‘prevention of tip oxidationʼ, and ‘preheating effect’ during micro soldering.

N2 system reduces soldering defects!

Dedicated tips employ composite heater inside which has enough track records in the market. Now you can solder minute and high-density components which used to be difficult previously.

Tips designed especially for HAKKO FM-2032 – T30 Series
(Click here for more information on how to use each tip, other details.)

Tips designed especially for HAKKO FM-2032 - T30 Series

Attach a grip mark for lead-free soldering or remove it for eutectic soldering.
How you use it is up to you.
Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.

Grip mark can be attached/detached as desired.

Model No.FM2032-52FM2032-51
Power consumption 48W (24V)
Temperature range200 to 450ºC
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementComposite heater
Cord length1.3m
Total length170mm (with 1D tip)
Weight14g (with 1D tip)

* Total length and weight (w/o cord)

No. FM2032-51

FM2032-81

  1. Soldering iron (HAKKO FM-2032)
  2. Instruction manual (No photo)

No. FM2032-52

FM2032-82

  1. Soldering iron (HAKKO FM-2032)
  2. Heat resistant pad
  3. Iron holder (w/cleaning sponge)
  4. Connecting cable
  5. Instruction manual (No photo)

A soldering tip is not included with this product. The desired tips should be purchased separately.

* Click the icon and jump to tip shape view image.

>> T30 series Tips:

Shape DShape IShape JShape K

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

Hakko FM-2032 is a conversion kit of micro-soldering that works with your Hakko high-end stations FX-951, FM-203 or FM-206.

  • Fine tip and slim heater ensure your sophisticated soldering for precise components on high-density PWB under a microscope.
  • N2 Soldering is possible with option parts.

Features

Connect any of the three stations below. The high power 48W heater is capable even to multilayer PWB with excellent thermal recovery.

HAKKO FX-951>> HAKKO FX-951

HAKKO FM-203>> HAKKO FM-203

HAKKO FM-206>> HAKKO FM-206

HAKKO’s slim and light-weight soldering iron sustains a high level of visibility.

Ideal for micro-soldering applications under a microscope

Optional parts, “Hose assembly” and appropriate “Nozzle assembly” for the tip, make FM-2032 compatible with N2 system.
Heated N2 gas contributes to ‘improvement of solderbilityʼ, ‘prevention of tip oxidationʼ, and ‘preheating effect’ during micro soldering.

N2 system reduces soldering defects!

Dedicated tips employ composite heater inside which has enough track records in the market. Now you can solder minute and high-density components which used to be difficult previously.

Tips designed especially for HAKKO FM-2032 – T30 Series
(Click here for more information on how to use each tip, other details.)

Tips designed especially for HAKKO FM-2032 - T30 Series

Attach a grip mark for lead-free soldering or remove it for eutectic soldering.
How you use it is up to you.
Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.

Grip mark can be attached/detached as desired.

Model No.FM2032-52FM2032-51
Power consumption 48W (24V)
Temperature range200 to 450ºC
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementComposite heater
Cord length1.3m
Total length170mm (with 1D tip)
Weight14g (with 1D tip)

* Total length and weight (w/o cord)

No. FM2032-51

FM2032-81

  1. Soldering iron (HAKKO FM-2032)
  2. Instruction manual (No photo)

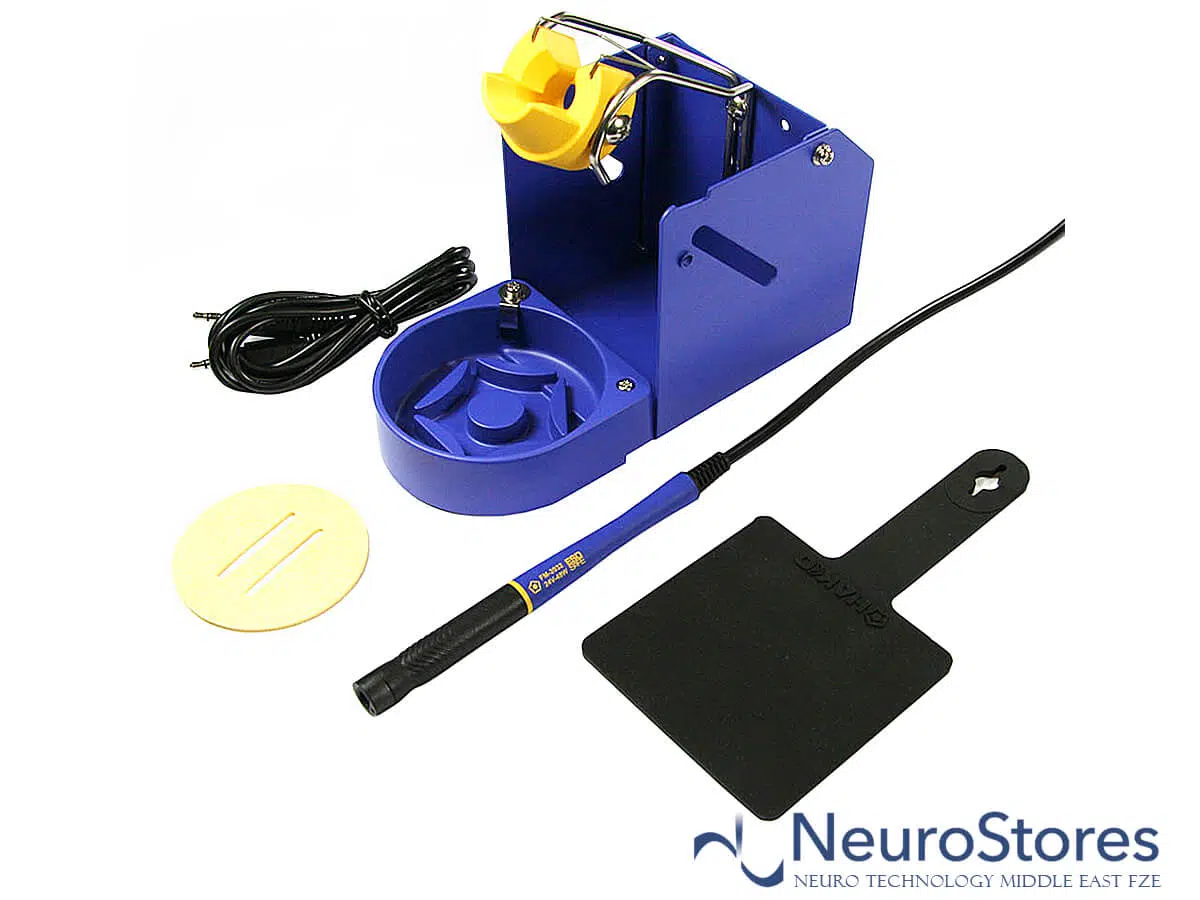

No. FM2032-52

FM2032-82

  1. Soldering iron (HAKKO FM-2032)
  2. Heat resistant pad
  3. Iron holder (w/cleaning sponge)
  4. Connecting cable
  5. Instruction manual (No photo)

A soldering tip is not included with this product. The desired tips should be purchased separately.

* Click the icon and jump to tip shape view image.

>> T30 series Tips:

Shape DShape IShape JShape K
