Hakko FM-2030 soldering iron conversion kit designed exclusively for HAKKO FM-206 and FM-203.
- High powered 140W soldering iron with high heat capacity
- Best suited for soldering of power-supply boards, heat sinks, shield cases, and coaxial cables
- Also applicable for multilayer boards with micro components
Features
Composite-type soldering iron which has an iron tip with a built-in heater.
Features the versatility to enable the soldering of a variety of components ranging from large scale components such as power supply boards, heat sinks, shield cases and coaxial cables, which require a high amount of heat, to micro components mounted on multilayer boards.
High-powered soldering iron also contributes to reductions in production time.
| Measurement condition | |
|---|---|
| Test method | Solder at 5 points and measure the time until temperature of the workipiece reaches 250 degrees. |
| Board used | Bakelite board |
| Component used | Screw |
| Tip shape | Shape-2.4D |
| Temperature setting | 350°C |
| Solder | Lead-free solder (Sn/Ag/Cu) Ø1.0 |
High heat capacity soldering iron intended for exclusive use with the compact multi-rework station, HAKKO FM-206 that enables simultaneous use of three handpieces
To work with this handpiece(HAKKO FM-2030), connect it to the Channel 2 or 3 receptacle on HAKKO FM-206.
| Model No. | FM2030-02 | FM2030-01 |
|---|---|---|
| Power consumption | 140W (24V) | |
| Temperature range | 200 to 500ºC | |
| Tip to ground resistance | <2Ω | |
| Tip to ground potential | <2mV | |
| Heating element | Composite heater | |
| Cord length | 1.3m | |
| Total length | 224mm (with 2.4D tip) | |
| Weight | 41g (with 2.4D tip) | |
* Total length and weight (w/o cord)

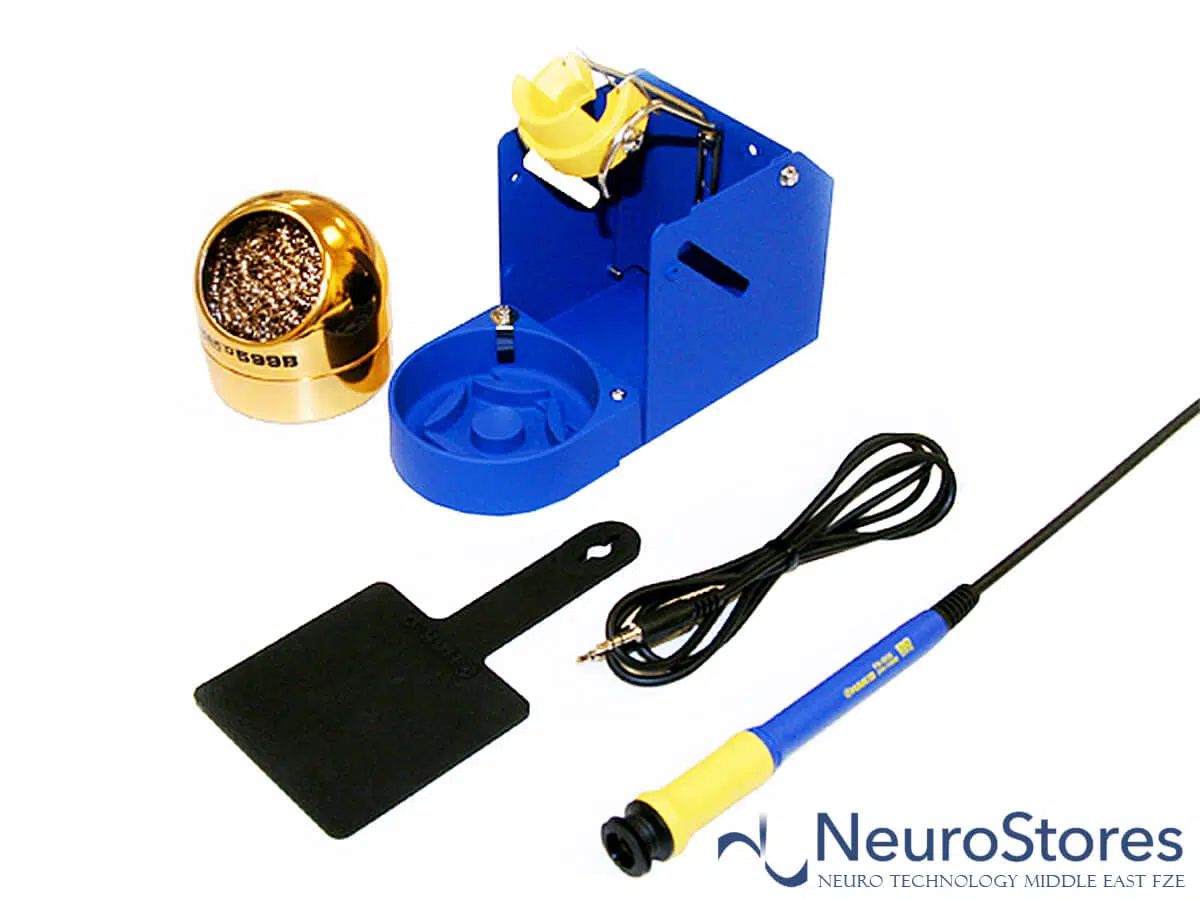

No. FM2030-02
1. Soldering iron (HAKKO FM-2030)
2. Iron holder
3. Relay cord
4. Heat resistant pad
5. Instruction manual (No photo)
| >> T22 Series Tips: |
|---|
| Shape BC/C | |
|---|---|
| T22-BC2 | Shape-2BC Heavy Duty Type B3121 Nozzle assembly A |
| T22-C3 | Shape-3C Heavy Duty Type B3121 Nozzle assembly A |
| T22-C5 | Shape-5C Heavy Duty Type B3124 Nozzle assembly D |
| T22-C6 | Shape-6C Heavy Duty Type B3124 Nozzle assembly D |
| Shape B | |
|---|---|
| T22-BL | Shape-BL Heavy Duty Type B3121 Nozzle assembly A |
| T22-BL2 | Shape-2BL Heavy Duty Type B3121 Nozzle assembly A |
| Shape D | |
|---|---|
| T22-D08 | Shape-0.8D Heavy Duty Type B3123 Nozzle assembly C |
| T22-D12 | Shape-1.2D Heavy Duty Type B3121 Nozzle assembly A |
| T22-D16 | Shape-1.6D Heavy Duty Type B3123 Nozzle assembly C |
| T22-D24 | Shape-2.4D Heavy Duty Type B3561 Nozzle assembly E |
| T22-D32 | Shape-3.2D Heavy Duty Type B3124 Nozzle assembly D |
| T22-D45 | Shape-4.5D Heavy Duty Type B3124 Nozzle assembly D |
| T22-D52 | Shape-5.2D Heavy Duty Type B3124 Nozzle assembly D |
| Shape J | |
|---|---|
| T22-J02 | Shape-0.2J Heavy Duty Type B3121 Nozzle assembly A |
| T22-JD08 | Shape-0.8JD Heavy Duty Type B3561 Nozzle assembly E |
| Shape K | |
|---|---|
| T22-K | Shape-K Heavy Duty Type B3123 Nozzle assembly C |
