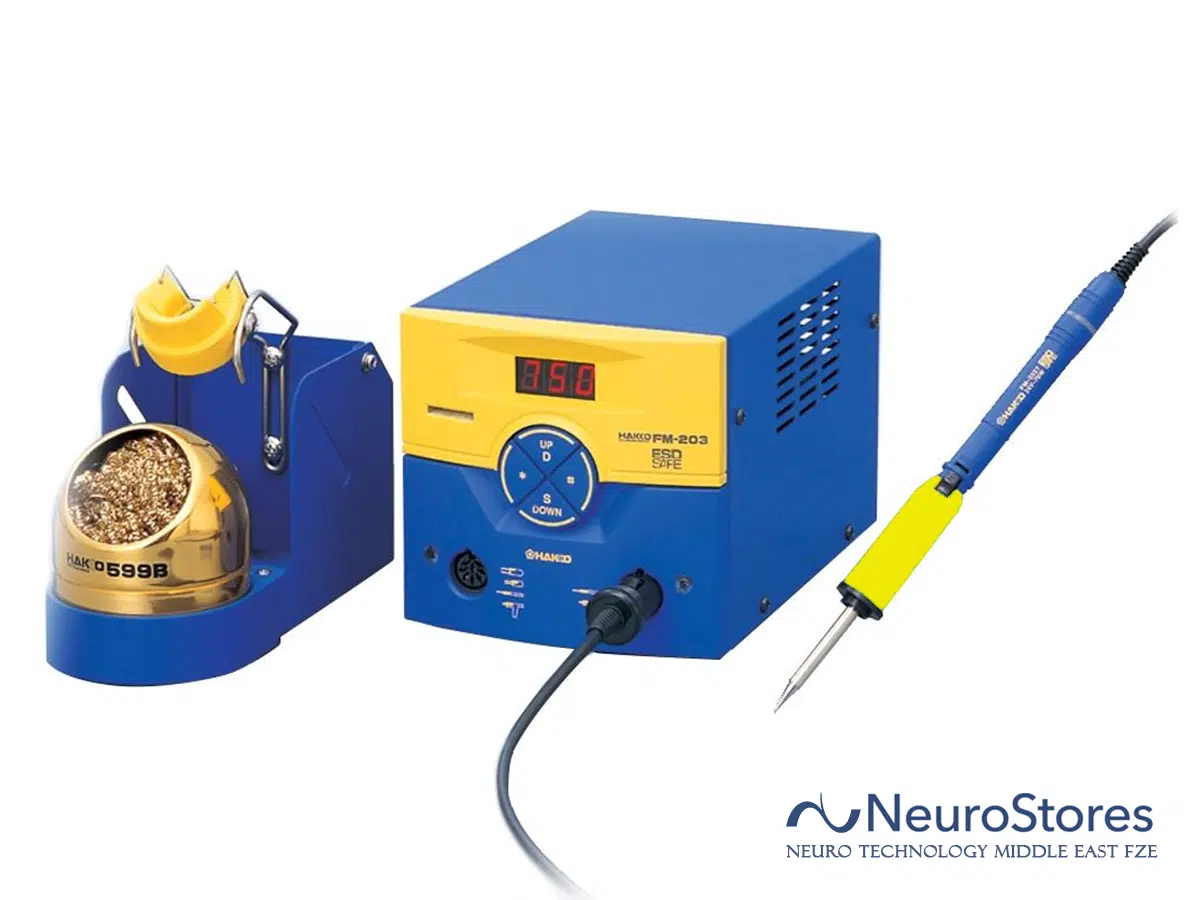

Hakko FM-203 a single station plays multiple roles: Soldering, desoldering, and SMD rework
- Multi-station that enables soldering, desoldering and SMD rework all with a single unit
- Selectable soldering iron for an N2 system or micro soldering as usage at your option
Features
*This station is equipped with one HAKKO FM-2027 handpiece.
*Figures of connectable handpieces are shown on the connectors as well as the indications of “Channel D” and “Channel S”.
*1 For HAKKO FM-2024, each handpiece needs a desoldering control box and compressor.
*2 For HAKKO FM-2026, each handpiece needs an N2 generator (HAKKO FX-780), flowmeter (HAKKO FX-791), compressor, regulator, etc. For further details, refer to the combination examples.
*Sleep function: While the handpiece is being placed on the iron holder (HAKKO FH-200), the sleep function is activated and decreases the temperature of the tip on the holder up to approximately 200°C, preventing the tip from being oxidized. In addition, this function can relieve the load applied to the tip due to the high-temperature settings required for lead-free soldering.
*Auto power shut-off function: By connecting the iron holder (HAKKO FH-200) and station with the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
*Whether to make the buzzer sound or not when an error occurs or a target temperature is reached is settable.
Model No. | FM203-06 |
---|---|
Power consumption | 140W |
Temperature range | FM-2026/2027:200 to 450ºC FM-2022/2023:200 to 400ºC FM-2024:350 to 450ºC FM-2032:200 to 450ºC |
Temperature stability | ±5ºC at idle temperature |
Station | |
---|---|
Output voltage | AC 24V |
Dimensions | 120(W)×120(H)×190(D)mm |
Weight | 2.7kg |
Soldering Iron | |
---|---|
Power consumption | 70W (24V) |
Tip to ground resistance | <2Ω |
Tip to ground potential | <2mV |
Heating element | Composite heater |
Cord length | 1.2m |
Total length | 188mm (with 2.4D tip) |
Weight | 30g (with 2.4D tip) |
* Total length and weight (w/o cord)
Station + One Soldering Iron 1. HAKKO FM-203 Station
2. Soldering iron(HAKKO FM-2027)
3. Control card
4. Heat resistant pad
5. Iron holder(No. FH200-01: with HAKKO 599B tip cleaner)
6. Tip tray
7. Power cord
8. Connecting cable
9. Instruction manual: 1 for each
*No photos are shown for parts *7 through *9.
*A soldering tip is not included in this product. The tips of the desired shape should be purchased separately.
* Click the icon and jump to T12 series tip shape view image.
>> N1 Series Desoldering Nozzles: | |
---|---|
N1-06 | Size Φ0.6 |
N1-08 | Size Φ0.8 |
N1-10 | Size Φ1.0 |
N1-13 | Size Φ1.3 |
N1-16 | Size Φ1.6 |
N1-20 | Size Φ2.0 |
N1-23 | Size Φ2.3 |
N1-L10 | Size Φ1.0 (Long) |
