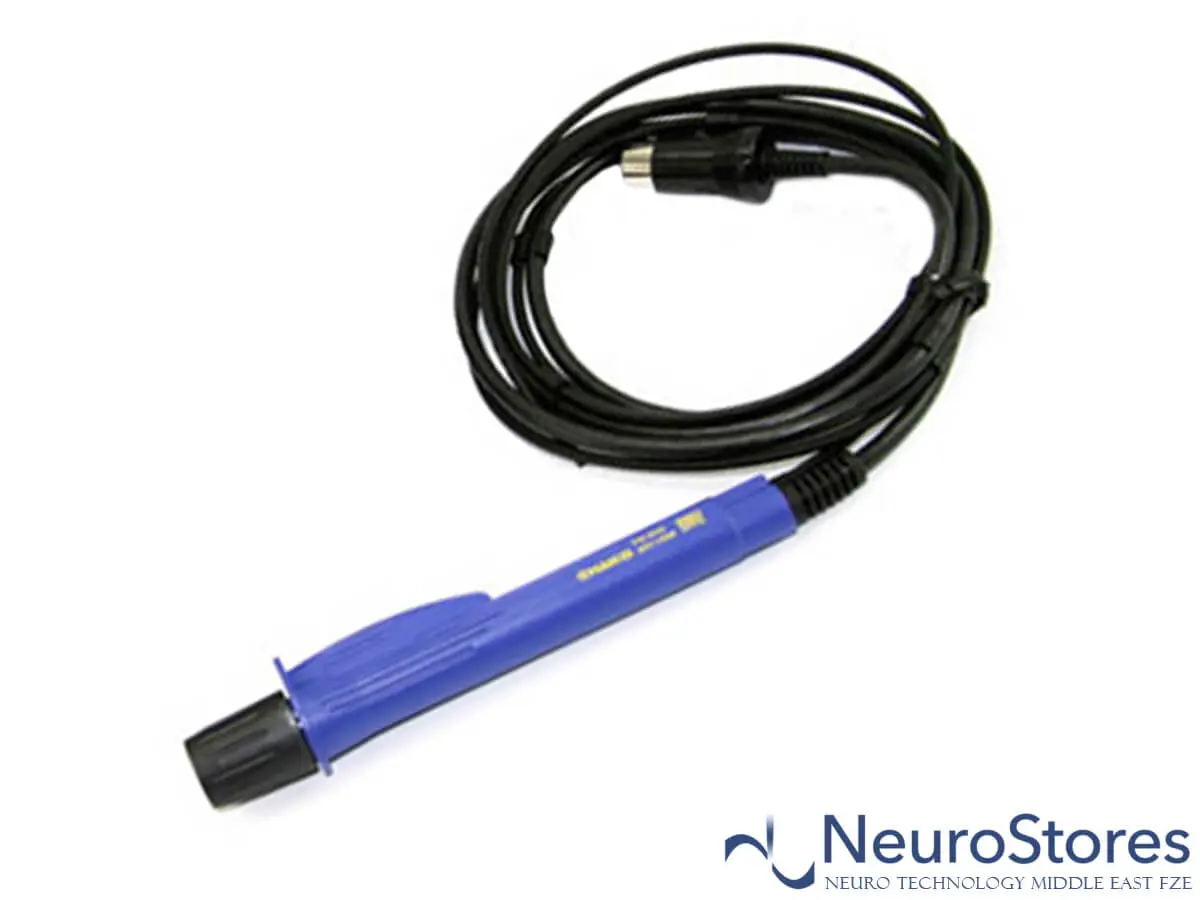

Hakko FM-2029 Single-nozzle hot air handpiece designed exclusively for HAKKO FM-206
- Slim grip is ideal for work in narrow spaces
- Hand switch enables easy ON/OFF operation
Features
Hot air handpiece for use with FM-206, a compact multi-rework station that enables simultaneous use of three handpieces.
Connect HAKKO FM-206 and the handpiece holder with a relay cord to turn off the air automatically when the handpiece is placed in the handpiece holder.
* Turn on the air again by operating the hand switch. The air does not turn on automatically when the handpiece is picked from the handpiece holder. Use external air to enable N2functions.
* Requires a flow meter and nitrogen gas generator.
The composite-type nozzle provides excellent thermal recovery and easy one-touch nozzle replacement. Heater replacement, which used to be difficult with the hot air-type, is no longer required.
Choose from four optional nozzles for different size work.
Model No. | FM2029-02 | FM2029-01 |
---|---|---|
Power consumption | 140W (24V) | |
Temperature range | 100 to 550ºC | |
Nozzle to ground resistance | <2Ω | |
Nozzle to ground potential | <2mV | |
Heating element | Composite heater | |
Cord length | 1.2m | |
Total length | 232mm (with Φ4.0mm nozzle) | |
Weight | 50g (with Φ4.0mm nozzle) |
* Total length and weight (w/o cord, tube)
Model No. | Packing List | |
---|---|---|
FM2029-02 | Hot air handpiece FM-2029 |
>>Click here for Replacement Parts and Option.
