Hakko FM-2024 Desoldering Conversion Kit, 70W (24V), with DCB

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

The Hakko FM-2024 desoldering compact kit

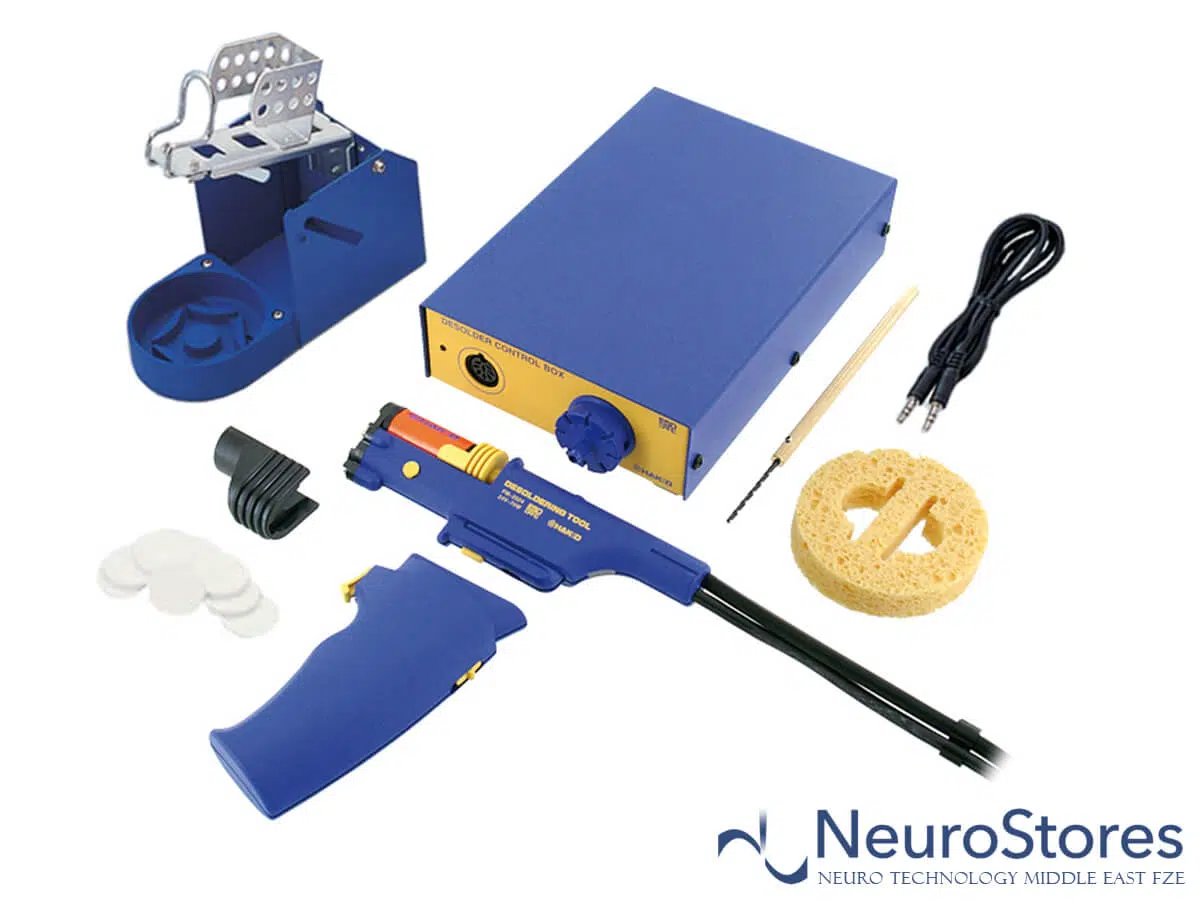

Includes desoldering handpiece FM-2024, iron holder: No.FH200-06 (with cleaning sponge No. A1519), Desolder control box (DCB), cleaning drill, filter pipe assembly, ceramic paper filter, handle (for gun configuration), nozzle remover, connecting cable.

Note: Nozzles not included. Purchase your required size separately.

Features

Specifications vary by station combined.

– Vacuum pump type desoldering tool

> HAKKO FM-204 Vacuum pomp type

> HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)

– Distribution equipment for plant air or other type of compressed air is required.

> HAKKO FM-202 (Discontinued Products)

> HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)

Distribution equipment for plant air or other type of compressed air is required.

Two power receptacles are required.

  • One unit can serve dual usage of Gun/Straight configurations
  • The composite nozzle ensures superior thermal recovery
  • Lightweight design
  • ESD safe by design

Two usages of Gun/Straight configuration by the gun grip attached or removed.Gun configuration

Two usages of Gun/Straight configuration by the gun grip attached or removed.Straight configuration

Model No.FM2024-22FM2024-02FM2024-44
Power Consumption70W (24V)
Temperature range350 to 450ºC
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length180mm (with Φ1.0mm nozzle)
Weight65g (with Φ1.0mm nozzle)

-DCB (Desolder Control Box)

Power Consumption12W
Output24V
Vacuum Generator
Vacuum Pressure
Ejector type
Max. 93kPa (700mmHg)
Suction Flow20L/min
Tip to Ground Potential< 2mV
Applied Air Pressure490kPa (5.0kgf/cm2)
When in use (trigger or button is pressed)
Compressed Air Consumption46L/min
Outer Dimensions119(W) x 45(H) x 172(D)mm
Weight1.2kg

* Total length and weight (w/o cord, hose)

>> FM2024-22 for > HAKKO FM-203

1. Iron holder No.FH200-06 (with cleaning sponge)
2. Desolder control box (DCB)
3. Cleaning drill (for heating element)
4. Filter pipe assembly
5. Ceramic paper filter (10 pcs.)
6. MODEL FM-2024 Desoldering tool
7. Handle (for gun configuration)
8. Nozzle remover
9. Connecting cable
* Nozzle is not included. Purchase your required size separately

No.FM2024-22











* Click the icon and jump to each nozzle view image.

N1-06

>> N1 Series Nozzles:
N1-06Size Φ0.6
N1-08Size Φ0.8
N1-10Size Φ1.0
N1-13Size Φ1.3
N1-16Size Φ1.6
N1-20Size Φ2.0
N1-23Size Φ2.3
N1-L10Size Φ1.0 (Long)
