Hakko FM-2024 Desoldering Conversion Kit, 70W (24V), w/o DCB

HAKKO CORPORATION

LEAD FREEESD SAFERoHS

The Hakko FM-2024 desoldering kit without Desolder control box (DCB) for Hakko FM-206

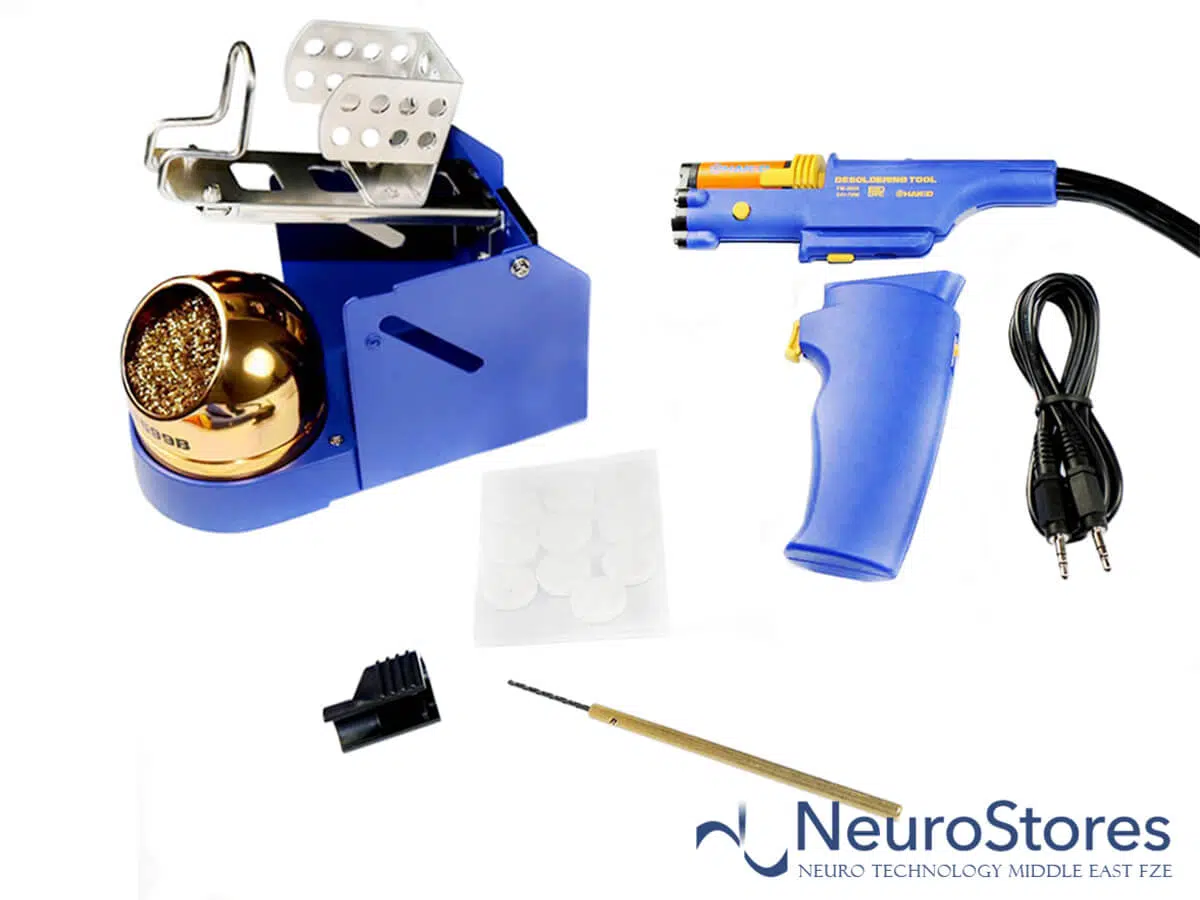

Includes desoldering handpiece FM-2024, iron holder: No.FH200-05 (with HAKKO 599B tip cleaner), cleaning drill, filter pipe assembly, ceramic paper filter, handle (for gun configuration), nozzle remover, connecting cable.

Note: Nozzles not included. Purchase your required size separately.

Features

Specifications vary by station combined.

– Vacuum pump type desoldering tool

> HAKKO FM-204 Vacuum pomp type

> HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)

– Distribution equipment for plant air or other type of compressed air is required.

> HAKKO FM-202 (Discontinued Products)

> HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)

Distribution equipment for plant air or other type of compressed air is required.

Two power receptacles are required.

  • One unit can serve dual usage of Gun/Straight configurations
  • The composite nozzle ensures superior thermal recovery
  • Lightweight design
  • ESD safe by design

Two usages of Gun/Straight configuration by the gun grip attached or removed.Gun configuration

Two usages of Gun/Straight configuration by the gun grip attached or removed.Straight configuration

Model No.FM2024-44FM2024-02FM2024-22
Power Consumption70W (24V)
Temperature range350 to 450ºC
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length180mm (with Φ1.0mm nozzle)
Weight65g (with Φ1.0mm nozzle)

* Total length and weight (w/o cord, hose)

>> FM2024-44 for HAKKO FM-206

1. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner)
2. Cleaning drill (for heating element)
3. Filter pipe assembly
4. Ceramic paper filter (10 pcs.)
5. MODEL FM-2024 Desoldering tool
6. Handle (for gun configuration)
7. Nozzle remover
8. Connecting cable
* Nozzle is not included. Purchase your required size separately

No.FM2024-45

* Click the icon and jump to each nozzle view image.         N1 Series Nozzle:

N1-06









HAKKO CORPORATION

LEAD FREEESD SAFERoHS

The Hakko FM-2024 desoldering kit without Desolder control box (DCB) for Hakko FM-206

Includes desoldering handpiece FM-2024, iron holder: No.FH200-05 (with HAKKO 599B tip cleaner), cleaning drill, filter pipe assembly, ceramic paper filter, handle (for gun configuration), nozzle remover, connecting cable.

Note: Nozzles not included. Purchase your required size separately.

Features

Specifications vary by station combined.

– Vacuum pump type desoldering tool

> HAKKO FM-204 Vacuum pomp type

> HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)

– Distribution equipment for plant air or other type of compressed air is required.

> HAKKO FM-202 (Discontinued Products)

> HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)

Distribution equipment for plant air or other type of compressed air is required.

Two power receptacles are required.

  • One unit can serve dual usage of Gun/Straight configurations
  • The composite nozzle ensures superior thermal recovery
  • Lightweight design
  • ESD safe by design

Two usages of Gun/Straight configuration by the gun grip attached or removed.Gun configuration

Two usages of Gun/Straight configuration by the gun grip attached or removed.Straight configuration

Model No.FM2024-44FM2024-02FM2024-22
Power Consumption70W (24V)
Temperature range350 to 450ºC
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length180mm (with Φ1.0mm nozzle)
Weight65g (with Φ1.0mm nozzle)

* Total length and weight (w/o cord, hose)

>> FM2024-44 for HAKKO FM-206

1. Iron holder: No.FH200-05 (with HAKKO 599B tip cleaner)
2. Cleaning drill (for heating element)
3. Filter pipe assembly
4. Ceramic paper filter (10 pcs.)
5. MODEL FM-2024 Desoldering tool
6. Handle (for gun configuration)
7. Nozzle remover
8. Connecting cable
* Nozzle is not included. Purchase your required size separately

No.FM2024-45

* Click the icon and jump to each nozzle view image.         N1 Series Nozzle:

N1-06
