HAKKO CORPORATION
Hakko FM-2023 Hot tweezers that enable easy removal of fine SMD chips and flat packages of up to 2mm in width. Conversion kit with Iron Holder, Tip T9-I, Component bed, etc.
- Composite-type design with a built-in heater facilitates the replacement of soldering tips
- Used together with HAKKO FM-203 or HAKKO FM-206
Features
The small grip ensures to remove the smallest chips easily.
Can choose standard or reverse tweezer action by switch lever.
Direct heating prevents damage to neighboring components on high density board.
ESD safe by design
Setup example
HAKKO FM-2023 can be operated with Soldering Station HAKKO FM-203.
– Also it can be operated with Soldering Station HAKKO FM-202(Discontinued).
HAKKO FM-203 enables 2-handpiece insertion and HAKKO FM-206 enables 3-handpiece insertion for various combinations.
For details, see the pages of HAKKO FM-203 and HAKKO FM-206.
HAKKO FM-203 and HAKKO FM-206 have the following combinations.
| *1 | HAKKO FM-2024 needs a desoldering control box and compressor. For details, visit HAKKO FM-2024. |
| *2 | HAKKO FM-2026 needs N2 generator, N2 station, compressor, regulator, etc. For details, visit HAKKO FM-2026. |
| *3 | HAKKO FM-2027 can be purchased with HAKKO FM-203 as an original combination product, which offers an affordable price. For details, visit HAKKO FM-203. |
| *1 | HAKKO FM-2024 can only be used with either FM-206 receptacle 1 or 3. |
| *2 | HAKKO FM-2026 requires one nitrogen gas generator and flow meter per soldering iron as well as a separate compressor and regulator. For details, see the page of HAKKO FM-2026. |
| *3 | HAKKO FM-2029 can only be used with FM-206 receptacle 3. When using the internal pump, FM-2029 and FM-2024 cannot be used at the same time. Simultaneous use is possible by connecting FM-2029 to external air. |
| Model No. | FM2023-02 | FM2023-04 |
|---|---|---|
| Power consumption | 140W (24V) | |
| Temperature range | 200 to 400ºC | |
| Tip to ground resistance | <2Ω | |
| Tip to ground potential | <2mV | |
| Heating element | Composite heater | |
| Cord length | 1.2m | |
| Total length | 117mm (with I tip) | |
| Weight | 37g (with I tip) | |
* Total length and weight (w/o cord)

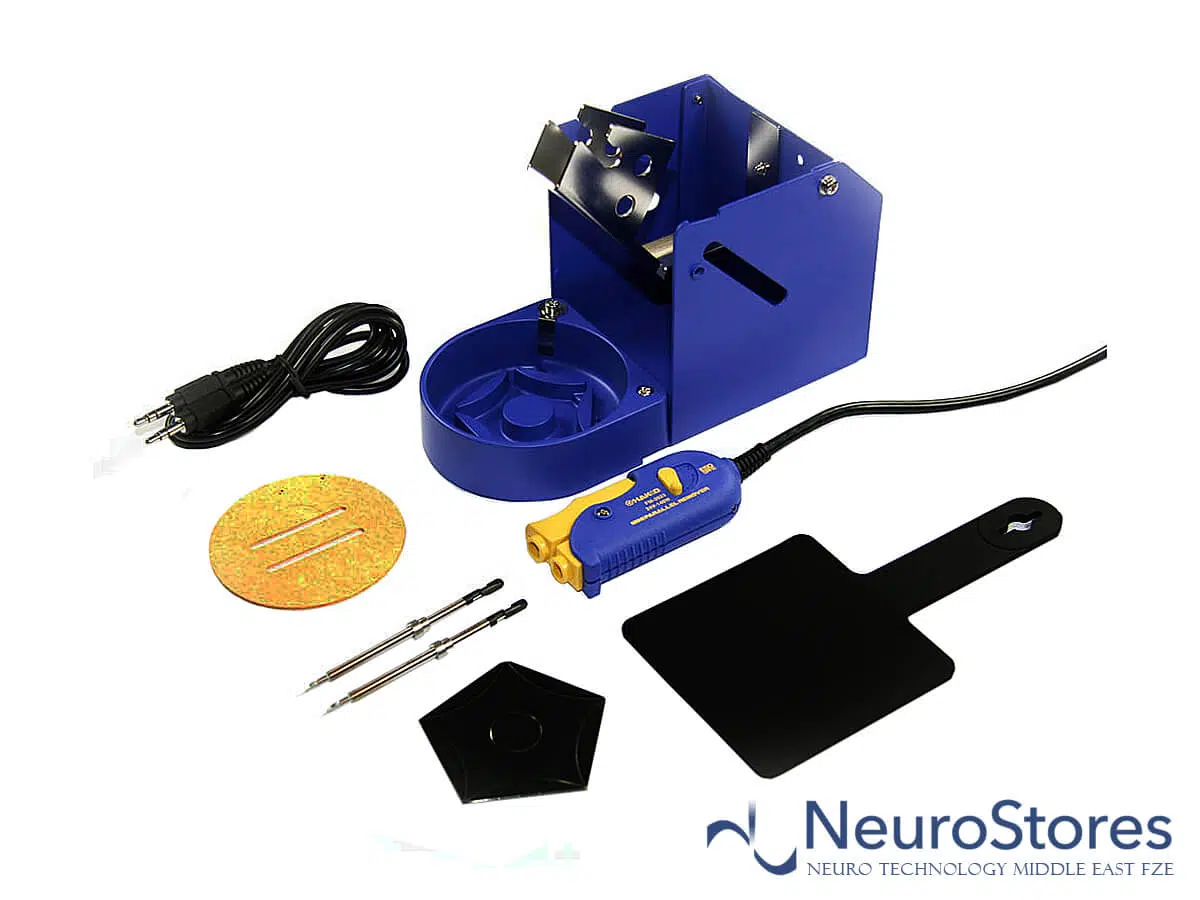

No. FM2023-04 ESD SAFE
1. Connecting cable
2. Iron holder: No. FH200-04 with cleaning sponge :No.A1519 (2-a)
3. Mini parallel remover HAKKO MODEL FM-2023
4. Soldering tip: No. T9-I
5. Component bed
6. Heat resistant pad
7. Instruction manual (No photo)
