Hakko FM-2022 Hot tweezers that enable easy removal of SMD chips and flat packages of up to 25mm in width
- Composite-type design with a built-in heater facilitates the replacement of soldering tips
- Used together with HAKKO FM-203 or HAKKO FM-206
Features
Unique parallel movement of tips allows easy removal of SMD chips and flat packs up to 25mm.
Direct heating prevents damage to neighboring components on high-density board.
ESD safe by design
HAKKO FM-2022 can be operated with Soldering Station HAKKO FM-203.
– Also, it can be operated with Soldering Station HAKKO FM-202(Discontinued).
HAKKO FM-203 enables 2-handpiece insertion and HAKKO FM-206 enables 3-handpiece insertion for various combinations.
For details, see the pages of HAKKO FM-203 and HAKKO FM-206.
HAKKO FM-203 and HAKKO FM-206 have the following combinations.
| *1 | HAKKO FM-2024 needs a desoldering control box and compressor. For details, visit HAKKO FM-2024. |
| *2 | HAKKO FM-2026 needs N2 generator, N2 station, compressor, regulator, etc. For details, visit HAKKO FM-2026. |
| *3 | HAKKO FM-2027 can be purchased with HAKKO FM-203 as an original combination product, which offers an affordable price. For details, visit HAKKO FM-203. |
| *1 | HAKKO FM-2024 can only be used with either FM-206 receptacle 1 or 3. |
| *2 | HAKKO FM-2026 requires one nitrogen gas generator and flow meter per soldering iron as well as a separate compressor and regulator. For details, see the page of HAKKO FM-2026. |
| *3 | HAKKO FM-2029 can only be used with FM-206 receptacle 3. When using the internal pump, FM-2029 and FM-2024 cannot be used at the same time. Simultaneous use is possible by connecting FM-2029 to external air. |
| Model No. | FM2022-02 | FM2022-04 |
|---|---|---|
| Power consumption | 140W (24V) | |
| Temperature range | 200 to 400ºC | |
| Tip to ground resistance | <2Ω | |
| Tip to ground potential | <2mV | |
| Heating element | Composite heater | |
| Cord length | 1.2m | |
| Total length | 148mm (with SOP 25L tip) | |
| Weight | 64g (with SOP 25L tip) | |
* Total length and weight (w/o cord)
No. FM2022-02 ESD SAFE

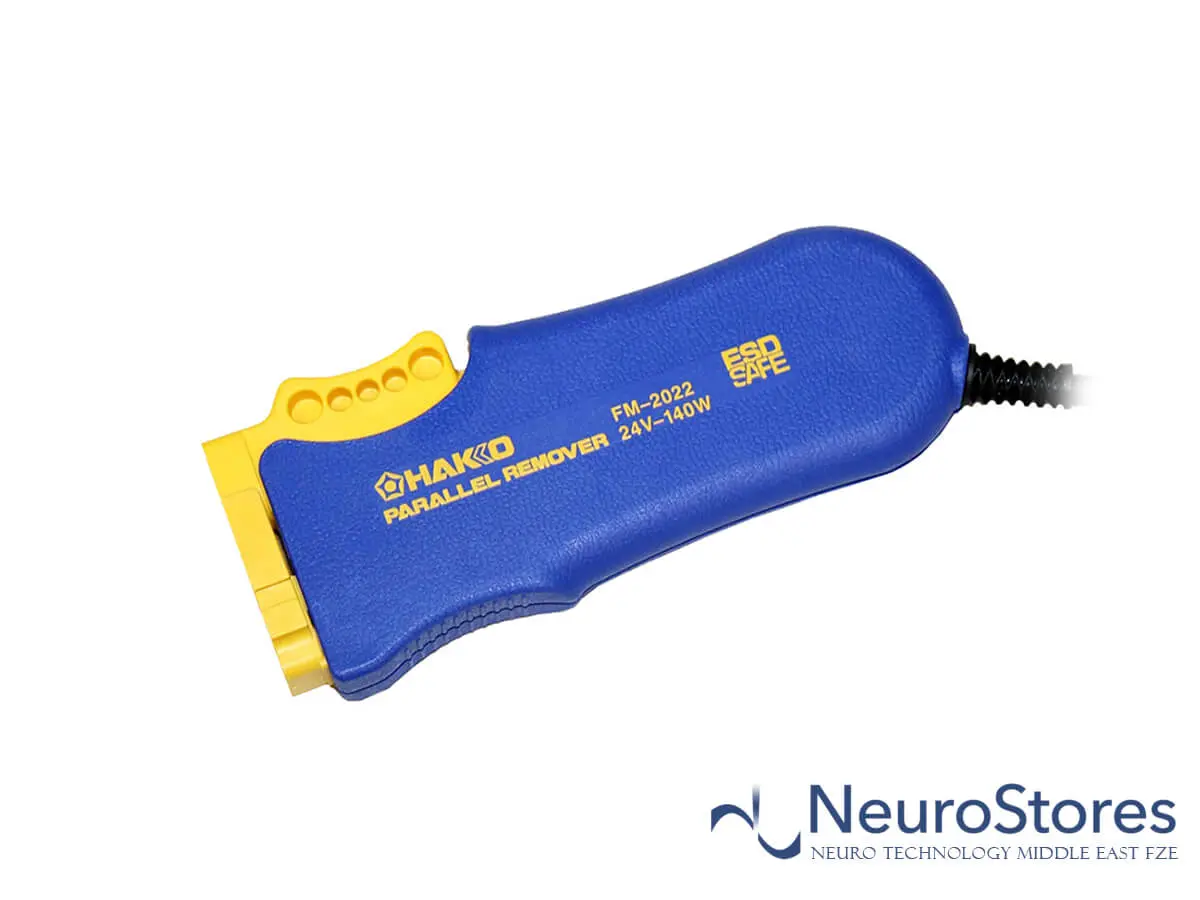

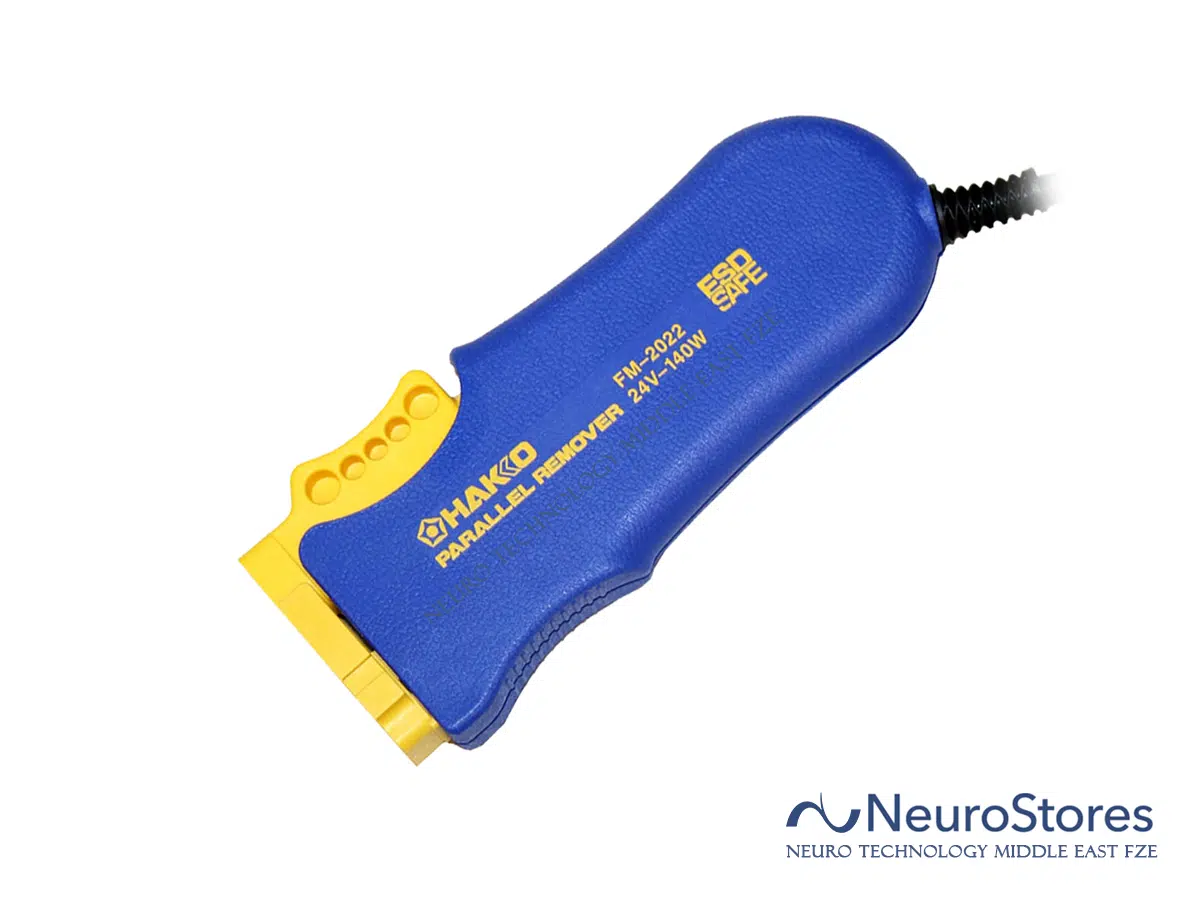

1. Parallel remover HAKKO MODEL FM-2022
2. Instruction manual (No figure)
NOTE: Soldering station must be purchased separately.
Select tip having desired shape separately.
| SMD type | Part No. | Size |
|---|---|---|
| Chip 0.5I | T8-1001 | 0.2mm |
| Chip 0.5C | T8-1002 | 0.5mm |
| Chip 1L | T8-1003 | 1mm |
| Chip 2L | T8-1004 | 2mm |
| Chip 3L | T8-1013 | 3mm |
| SMD type | Part No. | Size |
|---|---|---|
| SOP 6L | T8-1005 | 6mm |
| SOP 8L | T8-1006 | 8mm |
| SOP 10L | T8-1007 | 10mm |
| SOP 13L | T8-1008 | 13mm |
| SOP 16L | T8-1009 | 16mm |
| SOP 20L | T8-1010 | 20mm |
| SOP 25L | T8-1011 | 25mm |
| SOP 18L | T8-1012 | 18mm |
