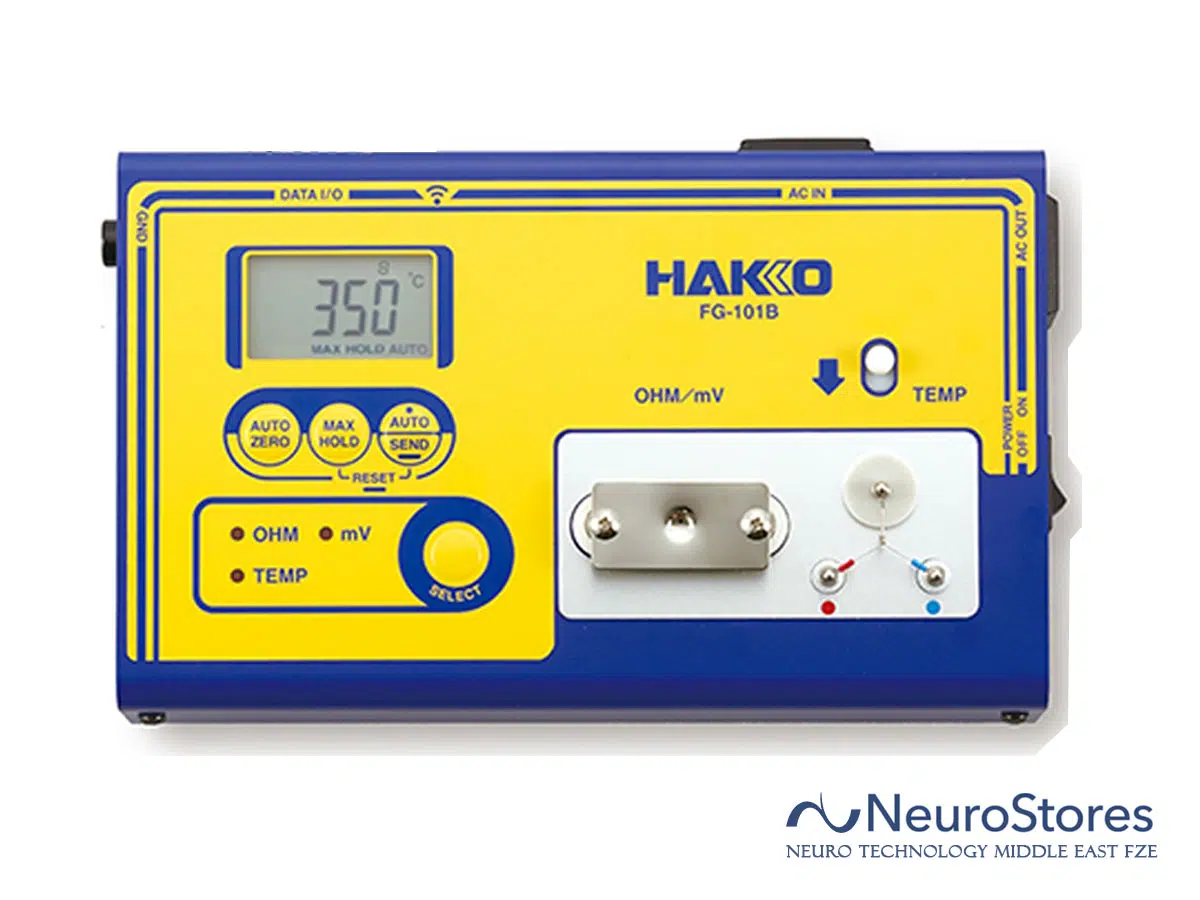

Hakko FG-101B Soldering Tester, 3.6W (220-240V)

HAKKO CORPORATION

LEAD FREE

  • Soldering iron tester for measurement of tip temperature, leak voltage, and tip to ground resistance
  • Human error-free operation
  • Long-life sensor AS5000 (with certificate of conformance) is equipped as standard.

Features

Control of “tip temperature”, “leak voltage”, and “tip to ground resistance” is required for a grounded soldering station for electronic components.

Human error-free operation

  1. AUTO HOLD function
    The measurement will end automatically when the displayed tip temperature is stabilized. Individual differences in temperature measurement can be minimized.
  2. Data send function (infrared)
    The measurement result can be sent to IoT capable soldering station, such as FN-1010, and be recorded automatically.
    Human errors in the manual recording can be eliminated.

Option Adapter module

By connecting FG-101B and IoT capable soldering station, such as FN-1010, with an adapter module, data transfer can be easy and smooth.

Usage / Applications:
>> The execution example of “Auto Cal” when connected to FN-1010.

Lasts 30 times longer than a conventional sensor.
*Based on our in-house test
Save troubles of sensor replacements and enhance stable measurement for a long time.


Part No. AS5000

Max measured tip temperature will be displayed.
This function can be useful for quality control of components and P.W.B.

Number of tip temperature measurement will be automatically counted.
This function can be useful for control of changing sensor.

The zero point error of measuring instruments can be corrected by simply pressing the AUTO ZERO button and waiting for the display to return to normal.

Use of a temperature probe makes it possible to measure the temperature of molten solder in a solder pot and hot air.

HAKKO FG-101B should be calibrated regularly as a Tester / Meter.
For details, please contact us or the distributors in your country.

Connecting the thermometer (HAKKO FG-101B)

1. Connect FG-101B and FN-1010 with the adapter module



2. Select “Auto Cal” from the menu on FN-1010 and execute it.



3. According to the instruction of the display on FN-1010, measure the temperature, leak voltage and tip to ground resistance in sequence.
The measurement mode of FG-101B is automatically changed for each measuring item.
When “Auto Cal” has been performed, if the measured temperature is within a previously set temperature range, it will be judged as passed and stored in the main body, and the product will return to normal operation.
If the measured temperature is outside the temperature range, the offset value will be calculated from the measurement results, and control will be performed using the new offset value. If it is outside the set range, temperature measurement and sending will be performed repeatedly for the previously set number of retries.

4. The result will be automatically recorded in FN-1010 once the measurement is completed.
Model No.FG101B-10
Power consumption3.6W (220-240V)
Temperature resolution1ºC
Temperature measurement range0 to 700ºC
Temperature precision±3ºC (300 to 600ºC)
±5ºC (other than above)
Temperature sensorK (CA)type thermocouple
Voltage resolution0.1mV
Voltage measurement range0 to 40mV (AC)
Voltage precision± (5% of reading + 1 digit)
Resistance resolution0.1Ω
Resistance measurement range0 to 40Ω
Resistance precision± (5% of reading + 1 digit)
DisplayLCD : 3 1/2digits
Operating environmentAmbient temperature/Humidity range : 0 to 40ºC, max.80% RH (without condensation)
Environmental conditionsApplicable rated pollution degree 2 (According to IEC/UL 61010-1)
Dimensions 211(W)×53(H)×126(D)mm
Weight0.95kg

* Temperature sensor can only be used to measure temperatures below 500ºC. To measure higher temperatures, use an applicable temperature probe.

HAKKO FG-101B Packing List

  1. Unit,
  2. Conduction wire,
  3. Ground clip,
  4. Multi-adapter *European adapter*,
  5. Fuse,
  6. Power cord,
  7. Sensor,
  8. Instruction manual
    *May not be included depending on the specifications

HAKKO FG-101B should be calibrated regularly as a Tester / Meter.

ReplacementPart No.NameSpecification
AS5000Sensorlead-free w/cert conformance
B1950Conduction wire
B1754Ground clip
B1752Conduction plate
OptionPart No.NameSpecifications
C5055Adapter module
A1310Temperature probefor soldering bath & pot
C1541Temperature probehot air
A1556Sensor A
A1557Sensor B
