HAKKO CORPORATION
Static eliminator that allows the selection of area intended for static neutralization
Locking mechanism maintains the angle of eliminator unit
Error output signal function is useful to incorporate the unit into line applications
| Model No. | FE510-01 |
|---|---|
| AC adapter output/Capacity | DC24V 10VA |
| Discharge method | High frequency AC method |
| High voltage output | AC2,000V approx. |
| Ion balance | ±10V or less |

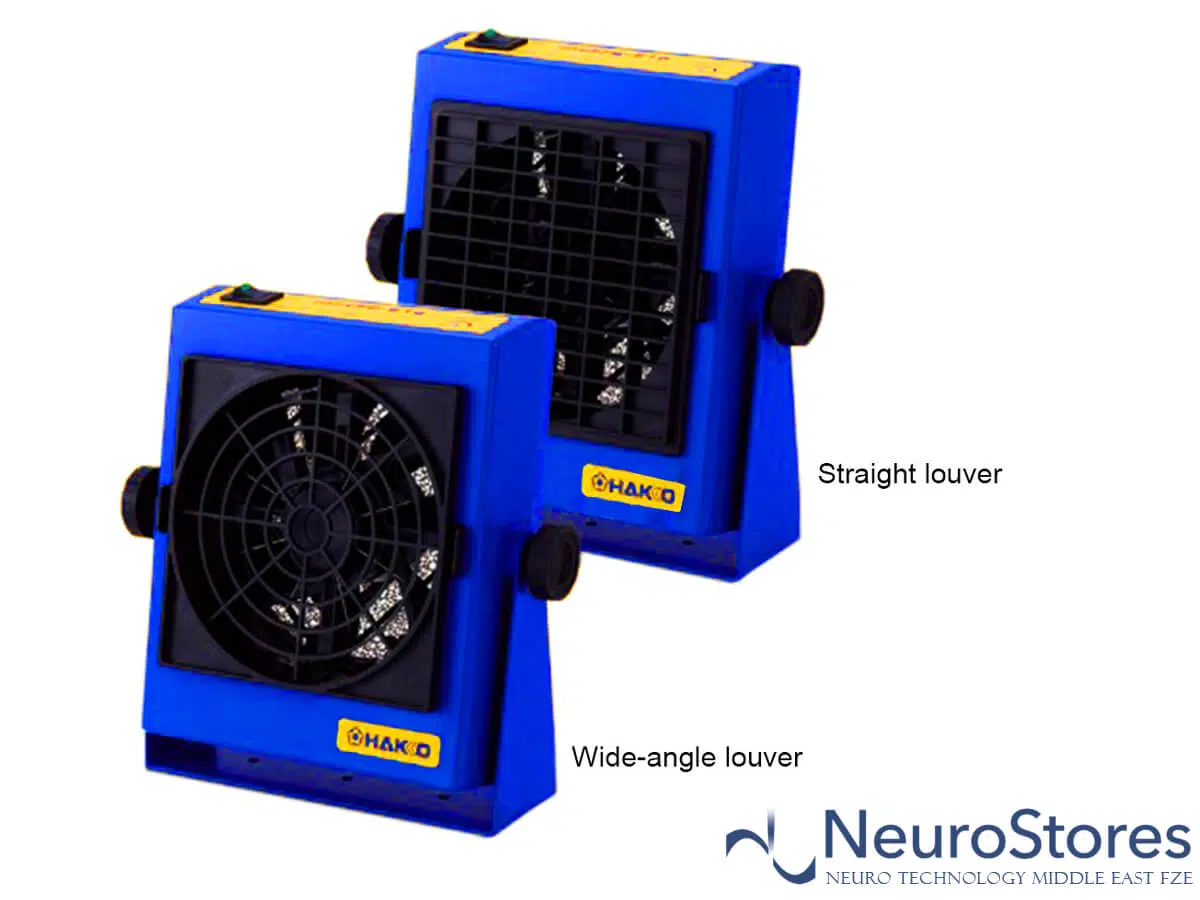

| Static elimination time | Straight louver : approx.1.5 seconds Wide-angle louver : approx.2.5 seconds |
| High voltage abnormality output (ALARM) | MOS FET relay non-voltage contact output Maximum current : 100mA Applied voltage : DC30V or less |
| Cleaning check output (C.C) | MOS FET relay non-voltage contact output Maximum current : 100mA Applied voltage : DC30V or less |
| Air flow | 1.5 to 3.0m3/min. |
| Air flow out angle | Vertically 360ºvariable (every 10º) |
| Quantity of produced ozone | 0.04ppm or less |
| Operating environment | Ambient temperature : 0 to 40ºC Ambient humidity : 15 to 65% (without condensation) |
| Material for discharge needles | Tungsten |
| Dimentions | 150(W)×182(H)×50(D)mm (without stand) |
| Weight | Approx. 0.79kg |
| AC Adapter | |
|---|---|
| AC adapter output/Capacity | DC24V 1A |
| Dimentions | 34(W)×72(H)×51(D)mm |
| Weight | Approx. 100g |
* Weight (including stand)
* Typical value measured (before shipment) at a distance of 300mm from the centre of the fan outlet with the maximum flow rate.
* Quantity of produced ozone measured at a point 150mm away from the centre of the fan outlet.
