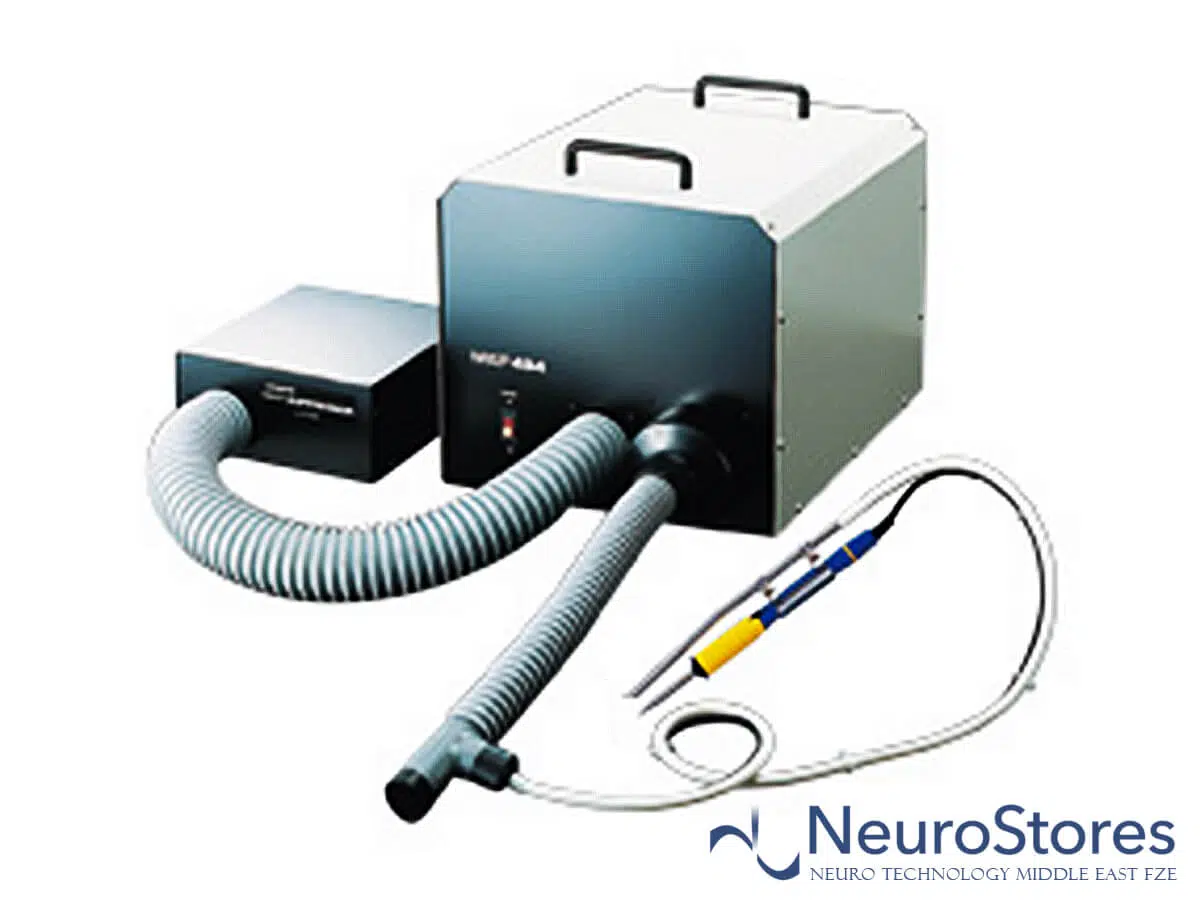

Hakko 494 Smoke Absorber, Line-production system

HAKKO CORPORATION

  • Soldering smoke absorber for production-line use that enables to exhaust fumes outdoors
  • Equipped with a suppressor to reduce exhaust noise during the operation
  • Up to 10 soldering irons can be connected with one unit
Model No.494
Power consumption50Hz : 150W
60Hz : 200W
Noise levelwith hose : 55dB
w/o hose : 71dB
Maximum suction capacity50Hz : 1.56m3/min.
60Hz : 1.82m3/min.
Static pressure50Hz : 2.3kPa (240mmAq.)
60Hz : 3.2kPa (325mmAq.)
Dimensions322(W)×300(H)×386(D)mm
Weight18kg

* Weight (unit only)
* Noise levei is measured at a distance of 1m from the face of unit.
* Dimensions (w/o handle, cord)

| More Specifications

HAKKO CORPORATION

  • Soldering smoke absorber for production-line use that enables to exhaust fumes outdoors
  • Equipped with a suppressor to reduce exhaust noise during the operation
  • Up to 10 soldering irons can be connected with one unit
