GOKO Imaging Devices Co., Ltd.

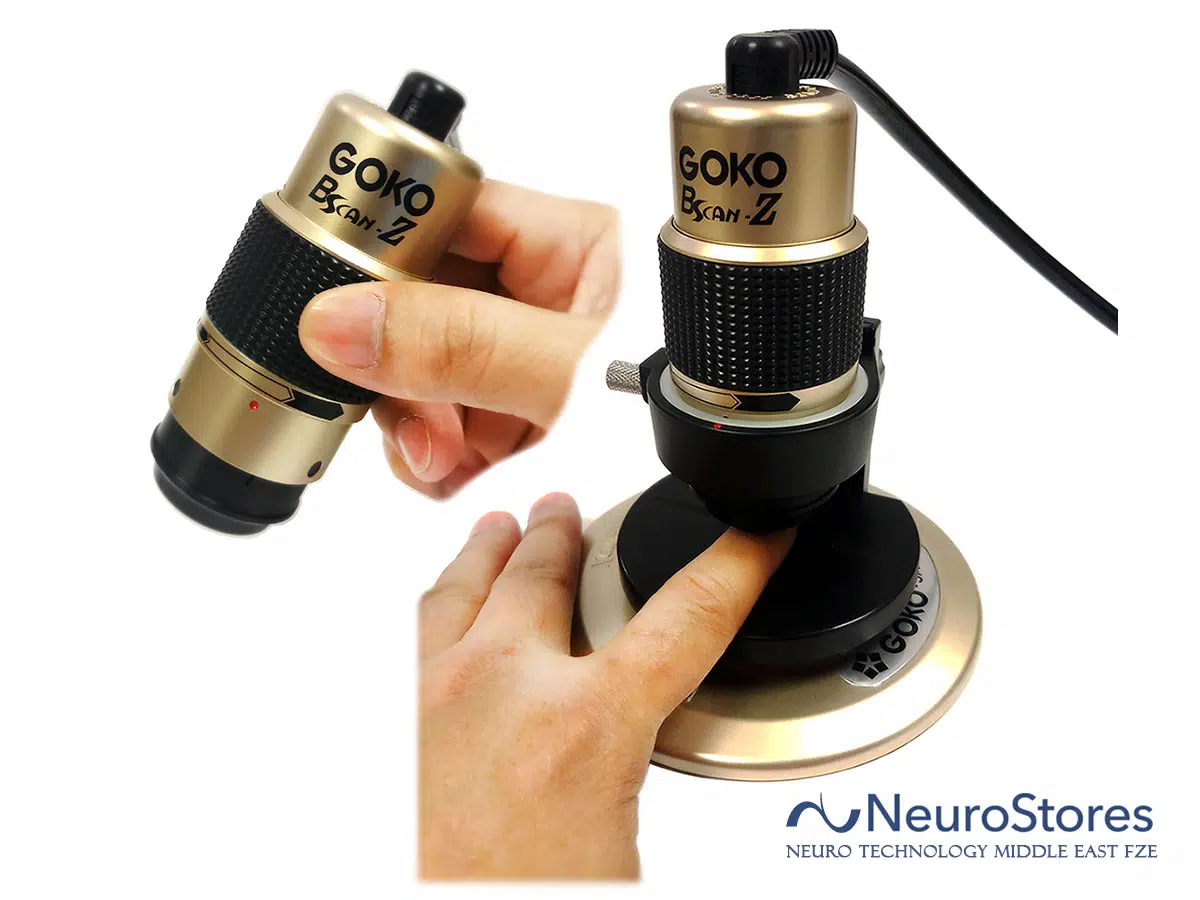

Goko EV-80Z BScan-Z a 2-ways-to-use capillaroscope: “Desk capillaroscopy” and “Handheld capillaroscopy” Realizes non-invasive in vivo visualization of capillaries.
- Sharper and clearer images: Features GOKO’s precise Japanese optics.
- Powerful zoom: Simply rotating the ring switches from low to high magnification without having to make lense changes.
- Captures smooth live video without time lags (NTSC Real time system).
- MADE IN JAPAN
>> Other Goko Digital and Video Microscopes Lineup
>> Other Goko Medical products
Features
(1) Nail fold capillaroscopy using dedicated stand unit
Newly designed stand unit with superb image stabilizer function allows capillary observation of the nail fold in nearly a total stationary state.
Thus far, it has been difficult to observe nail fold capillaries in ultra-high magnifications because quality is easily affected by even the slightest movements at these high magnifications. However, the stand unit GOKO Bscan-Z facilitates “motionless observation” with its novel structure that keeps the camera and fingers stable.
The observation of nail fold capillaries
(2) Whole body capillary observation as “Handheld capillaroscope”
The GOKO Bscan-Z can be used not only as “desktop capillaroscope” but also as a “handheld capillaroscope.” It is suited for enhanced magnified observation of capillaries over the whole body surface.
All you need to do is just touch the skin surface with the Focus cap of the GOKO Bscan-Z and turn magnification ring.
Because of its compact and handheld shape, the GOKO Bscan-Z is ideal for those with complaints like, “the camera weight compresses the capillaries”.
The observation of capillaries over the whole body surface by attaching Focus cap
For universities, hospitals, and medical institutes
- In research demonstrations and monographs at universities and laboratories
- To observe/research peripheral blood flow or skin
- To observe/research pressure ulcer
- To observe/research thermal burns
- For capillaroscopy to observe/research diabetes
- For capillaroscopy (NVC) to observe/research autoimmune rheumatic diseases such as scleroderma, connective tissue disease, or Raynaud phenomenon
For health promotion businesses
- For the useful demonstration of the promotion of health related equipment, hydrogen/carbonated water, and supplements
- To demonstrate the effect of “detox” at a stone sauna, carbon dioxide bath, or fitness club
- To observe the change in blood circulation following a massage in fitness and massage centers
For the beauty and esthetic industries
- To demonstrate the effectiveness of new products for the improvement of skin or scalp care
- To observe improvements in blood circulation
- As an advisory tool for life style modification at pharmacies and drugstores
Others
- To inspect printed surface
- To observe skin disease at veterinary clinics and animal medical centers
- Capillaroscope or video capillarsocope in educational facillities
| Camera Unit | |
|---|---|
| Model | GOKO EV-80Z |
| Image Signal | NTSC composite video signal |
| Electronic Shutter | 1/60-1/100,000 second (Automatic) |
| Magnification | 145× to 590× (on 20-inch monitor) In focus with Attachment: 105× and 390× |
| Lighting System | Direct lighting by high luminosity LED |
| Video Output | Composite image output (pin jack 75 Ω) |
| Power Source | DV 5 V, supplied from exclusive adapter AC Adapter inlet pressure: AV 100-240 V |
| Operating Temperature | 0° C to +40° C |
| Operating Humidity | 35%-60% RH |
| Dimensions | φ45 (external diameter) × 96 (length) mm (except protrusion, without Attachment) φ45 (external diameter) × 106 (length) mm (with Attachment) |
| Weight | 140 g (without Attachment), Attachment: 10 g |
| Attachments | 1.Focus cap 2.AC Adapter 3.Protection cap 4.Anti-vibration attachment for observing nailfold capillaries 5. Composite extension cable for the camera unit |
| Location of manufacture | Japan |
| Stand Unit | |
|---|---|
| Model | ST-600Z |
| Dimensions | Base unit: φ120 mm, camera holder unit: φ58 mm, height: 72.5 mm |
| Range of the movement of the Stage Unit | 10 mm in a crosswise direction |
| Range of the movement of the Camera Holder Unit | 10 mm vertically |
| Overall height with the Camera Unit | 132 mm, except protrusion |
| Weight | 250 g |
| Location of Manufacture | Japan |
