GOKO Imaging Devices Co., Ltd.

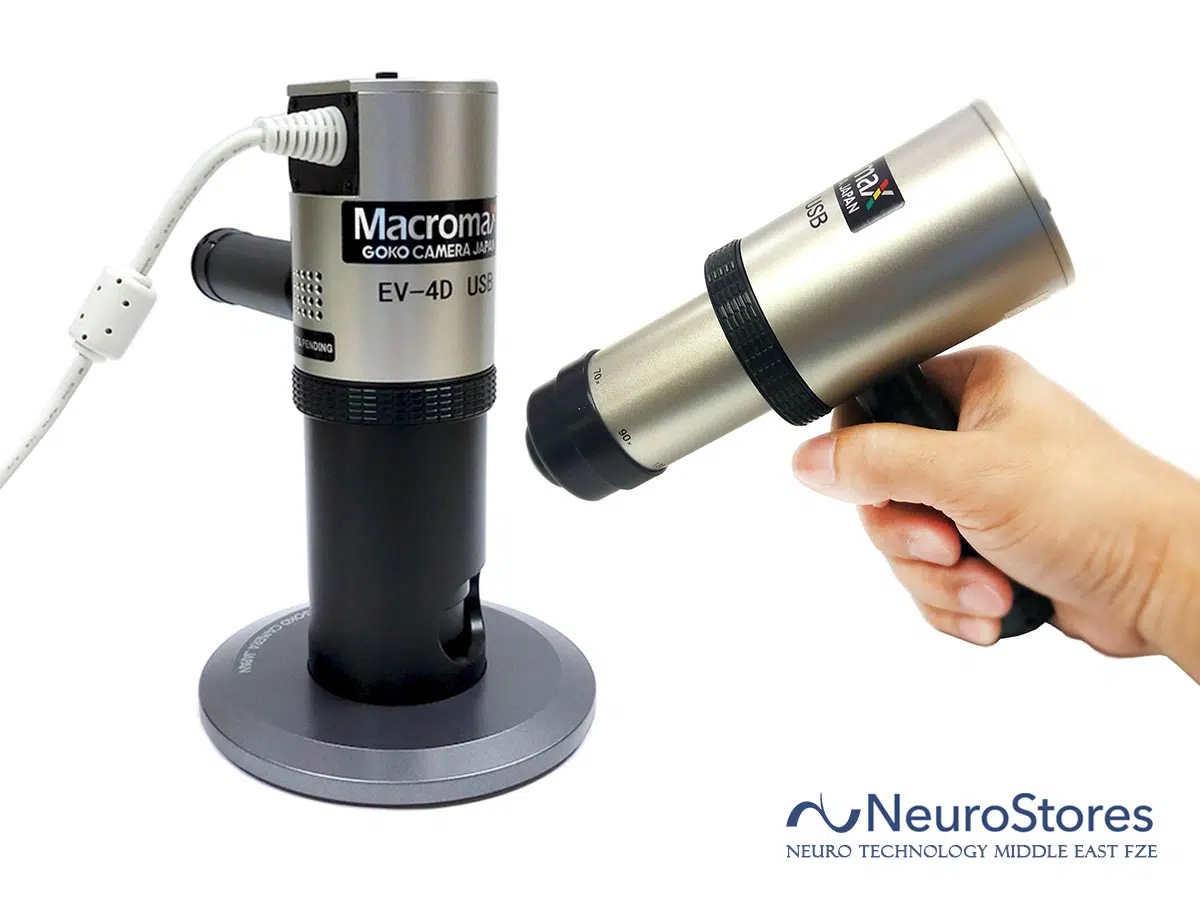

Goko EV-4D USB dermascope popularly used by professionals such as universities and dermatological research institutions. Outputs high-quality digital images on computer display.
- Extremely easy operation with hand-held shape.
- No need to adjust focus. Always “in-focus” at any magnification from 50× to 130×.
- Provides powerful zoom and wide range of magnification
- Features GOKO’s precise optical system that provides high quality pictures
- Features waterproof tip that is applicable to use with gel or oil lubricant
- Built-in high luminosity LED: cool, bright, and has an extremely long life
- Optional stand is available.
- MADE IN JAPAN
*”EV-4DU” is not a medical device.
>> Other Goko Digital and Video Microscopes Lineup
>> Other Goko Medical products
Feautures
(i) No need to adjust focusing, even while zooming in and out
You only need to touch the skin with EV-4DU. No need to adjust focusing, even while zooming in and out.
EV-4DU is always “in-focus” during touching object (skin) at any magnification from 50× to 130×,
on 17-inch monitor: SXGA.
(ii) Extremely easy operation: Can easily change magnification with one hand
To change magnification is extremely easy: just turn “magnification ring” around with one hand, which made possible by its convenient handgrip.
(iii) Features waterproof tip that is applicable to use of gel or oil lubricant
Black colored tip is waterproof that is applicable to use of gel or oil lubricant.
Taking care is extremely easy only by wiping the point off to keep it clean.
| EV-4D USB Camera Unit | |
|---|---|
| Model | EV-4DU |
| Image Signal | Digital System |
| Image Sensor | 1/2" CMOS Color Camera 1.3mega-pixel |
| Electronic Shutter | Automatic |
| Focus System | VFF (Variable Focus Free) Zoom System |
| Magnification | 50× - 130×（on 17 inch monitor for PC）in 1280×1024 mode [SXGA] |
| Lighting System | Direct lighting by high-luminosity LED (On/Off) |
| Image Output | Digital output through a USB 2.0 cable (Type A Male) |
| Power Source | DC5V, from PC through USB bus power |
| Operating Temperature | 0 to +40℃ |
| Dimensions | φ60 (external diameter), 180 (height) mm (except grip, protrusion, and cable) |
| Cable length | 1.5 m |
| Weight | 350 g |
| Attachments | 1.Cap 2.CD-ROM (camera driver, and image software) 3.Instruction manual |
| Place of manufacture | Japan |
| EV-4D USB Operating Environment | |
|---|---|
| CPU | Celeron 900MHz or more (1.7GHz or more is recommended) |
| OS | Windows 2000/XP/7/8/10 |
| Memory | 256MB or more (512MB is recommended) |
| USB Port | Built-in USB 2.0 Port (Not guaranteed to operate with USB 1.1 nor USB 2.0 card) |
| Chip Set | intel is recommended |
