WOLFGANG WARMBIER

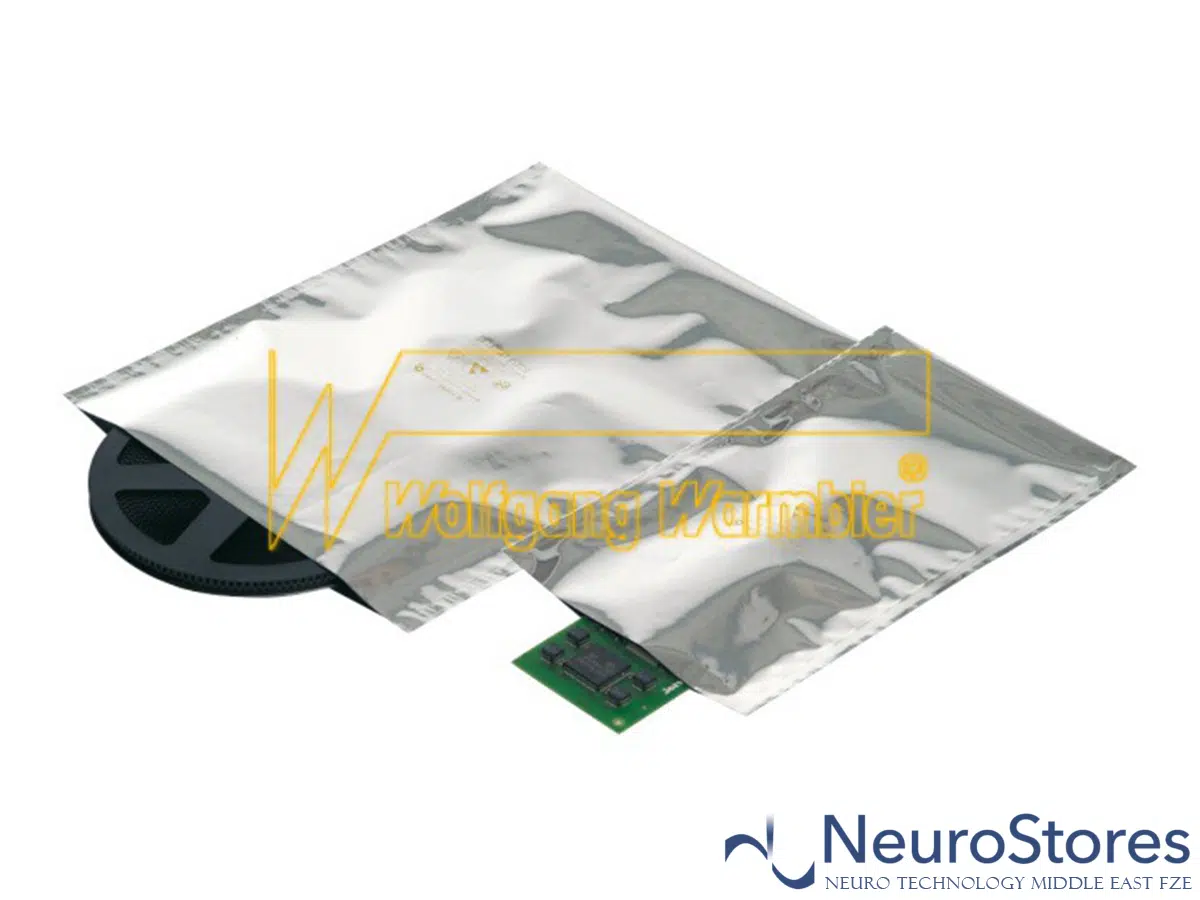

- Shielding, moisture barrier bag
- Protection against electrostatic discharge and electrostatic fields
- Complies with MIL-B81705 Type 1 Class 1
- EMI – Shielding > 40 dB
- The moisture barrier property is achieved through the multilayer construction which includes dissipative Polyester, Aluminium metallization and dissipative Polyethylene
- Electrostatic Shielding < 10 nJ (Energy Test)
- Heat sealable
- Can be used for vacuum packaging applications
- Standard print: Product name, ESD symbol, barrier bag symbol, Recycling symbol and lot Nr.
- Typical surface resistance Rs = 10^9 – 10^10 ohm (Inner layer / outer layer)
- Custom sizes available on request
- For complete part number, click below:
| P/N: | Bag size (inner dimension): |
|---|---|
| 3710.DR.0426 | 102x660 mm (4"x26") 1 unit=100 pcs. |
| 3710.DR.0626 | 152x660 mm (6"x26") 1 unit=100 pcs. |
| 3710.DR.0810 | 203x254 mm (8"x10") Qty.=100 pcs. |
| 3710.DR.1012 | 254x305 mm (10"x12") Qty.=100 pcs. |
| 3710.DR.1020 | 254x508 mm (10"x20") Qty.=100 pcs. |
| 3710.DR.1026 | 254x660 mm (10"x26") 1 unit=100 pcs. |
| 3710.DR.1626 | 406x660 mm (16"x26") 1 unit=100 pcs. |
| 3710.DR.1818 | 457x457 mm (18"x18") 1 unit=100 pcs. |
