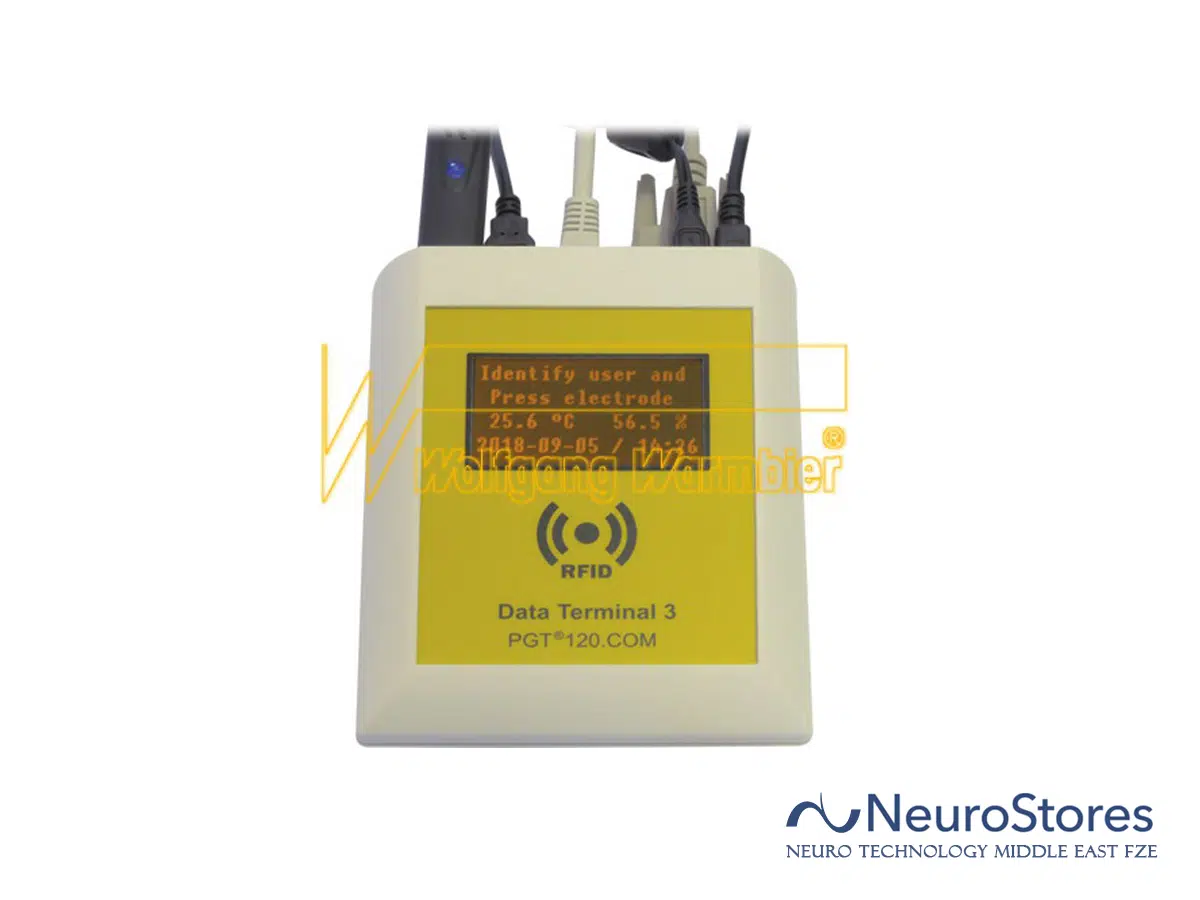

Data Terminal DT3 + Display, RFID-Reader and Relais contact 7100.PGT120.COM.DT3

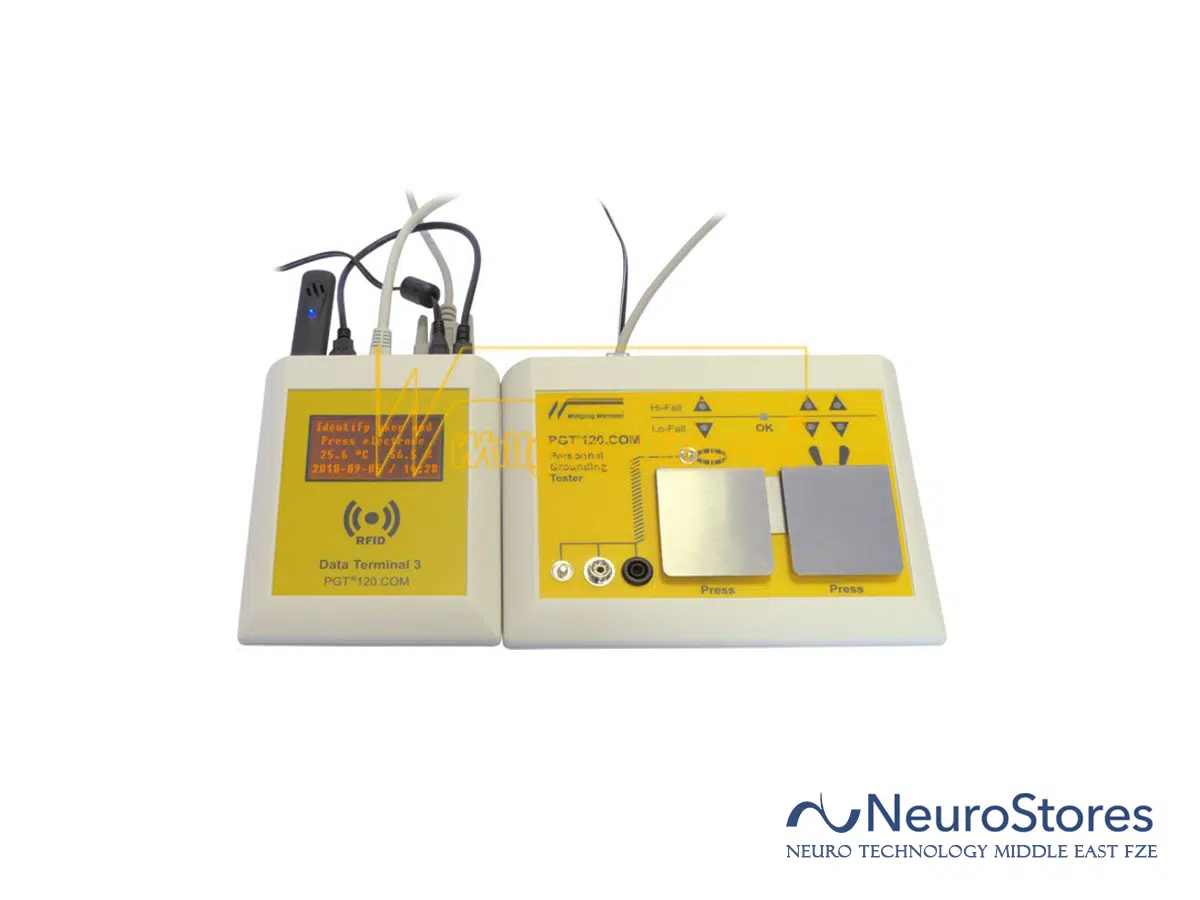

• The DATA Terminal DT3 records the measurement data of the Personnel Grounding Tester PGT®120.COM.

Additionally this version is equipped with a built-in RFID-Reader, a Display and a relais contact.

• Ready to integrate into existing infrastructure
• Multiple PGT®120.COM stations can be networked
• Existing identity cards or time attendance cards can be reused
• Customer systems can be connected via open database interface
• Measurement data is ready to process after a few seconds
• Various databases can be used
• Combination with existing access systems is possible
• Secure network communication

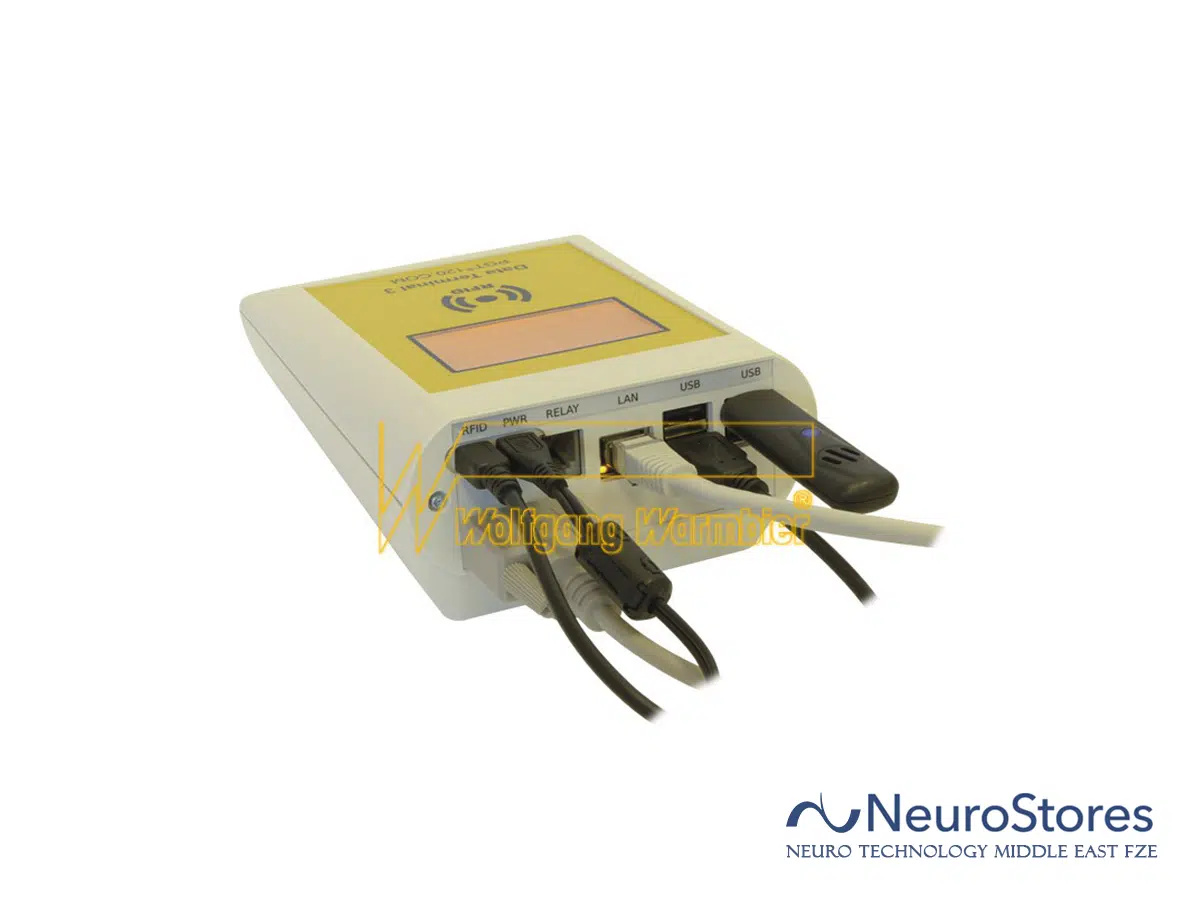

• Interface ports:
  4 x USB (max. 600 mA)
  1 x D-SUB9 for PGT120.COM
  1 x RJ45 – LAN
  1 x RJ12 – Relay
  1 x Micro USB – RFID Reader
  1 x Micro USB – POWER 5VDC

• Dimension: 120 x 150 x 63 mm
• Weight: 350 g
• Output: Solid State Relay 24 VDC (16V/AC)/ 2A – Ohmic load.

(External protection circuit for switching loads required)

• Internal RFID-Reader: Legic

• 1 x DATA Terminal DT3
• 1 x power supply 100-240 VAC/5 VDC with adapter (EU/USA)
• 1 x USB to Micro-USB cable (to activate the internal RFID-Reader)
• 1 x Instruction manual (German/English)
